MOTION PLATFORMS

  • PS-2RM-150

     7 500.00 *

    Payload: 150kg
    Applications: Racing and flights simulators, VR, healthcare equipment
    Pitch: -12.8°, 13.2°, 32°/s, 250°/s2
    Roll: ±9.25°, 25°/s, 250°/s2
    Weight: 63kg

  • PS-240

     8 400.00 *

    The PS-240 set  is dedicated to projects where it is necessary to reproduce real time vibrations, such as helicopter flight simulation or in the professional entertainment applications, for example haptic floors in VR Centres.

  • PS-280

     16 900.00 *

    The PS-280 linear actuators set delivers powerful performance and minimum maintenance in a very compact design, which perfect suit for cabin simulators.

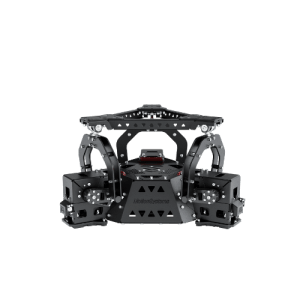

  • PS-3TM-200

     10 300.00 *

    Payload: 200kg
    Applications: Ultra lightweight open cabin units
    Heave: -0.08, 0.09 m
    Pitch: -17.9°, 18.1°
    Roll: -20.9°, 20.9°
    Weight: 100kg

  • PS-3TM-350

     12 800.00 *

    Payload: 350kg
    Applications: Ultra lightweight open cabin units
    Heave: -128 +139 mm, 266mm/s, 0.5G
    Pitch: ±17.1°, 60°/s, 250°/s2
    Roll: ±20°, 50°/s, 250°/s2
    Weight: 260kg

  • PS-3TM-550

     18 000.00 *

    Payload: 550kg
    Applications: Lightweight closed cabin units
    Heave: -0.13, 0.17 m
    Pitch: -14.8°, 17.4°
    Roll: ± 17.2°
    Weight: 390kg

  • PS-3TM-LP550

     18 000.00 *

    Payload: 550kg
    Applications: Lightweight closed cabin units, low profile version
    Heave: -0.16, 0.14 m, 4 m/s²
    Pitch: -9.5°, 9.3°, 250°/s²
    Roll: -10.8°, 10.8°, 250°/s²
    Weight: 436kg

  • PS-3TM-1000

     28 500.00 *

    Payload: 1000kg
    Applications: Lightweight closed cabin units
    Heave: -0.16 m, 0.17 m
    Pitch: ±16.4°
    Roll: ±19°
    Weight: 595 kg

  • PS-6TM-150

     20 700.00 *

    Payload: 150kg
    Applications: Ultra lightweight open cabin units
    Heave: -93 mm, 104 mm
    Pitch:-23° +23.8°
    Roll:±24.5°
    Yaw:±21.8°
    Surge: -103 mm, 109 mm
    Sway:± 96 mm
    Weight: 305 kg

  • PS-6TM-550

     41 900.00 *

    Payload: 550kg
    Applications: Lightweight closed cabin units
    Heave: -0.13, 0.134 m, 0.4G
    Pitch: -13.1°, 12.8°, 35°/s, 250°/s2
    Roll: ±14.2°, 35°/s, 250°/s2
    Yaw: ±14.6°, 35°/s, 250°/s2
    Surge: -0.157, 0.178 m, 200mm/s, 3 m/s2
    Sway: ±0.152 m, 200mm/s, 3 m/s2
    Weight: 460kg

  • PS-6TM-1500

     54 000.00 *

    Payload: 1500kg
    Applications: Almost all types of closed cabin units.
    Heave: -0.14m, 0.18 m
    Pitch: -19.7°, 18.2°
    Roll: -20.3°, 20.3°
    Yaw: -22.0°, 22.0°
    Surge: -0.21 m, 0.22 m
    Sway: -0.20 m, 0.20 m
    Weight: 1145 kg

  • PS-6TL-350

     25 900.00 *

    Gross moving load: 350kg
    Applications: Ultra lightweight open cabin units
    Heave: -0.17, 0.19 m
    Pitch: -19.9°, 18.1°
    Roll: ±20.6°
    Yaw: ±27.8°
    Surge: -0.3, 0.27 m
    Sway: -0.26, 0.26 m
    Weight: 390 kg

  • PS-6TL-800

     51 500.00 *

    Gross moving load: 800kg
    Applications: Almost all types of closed cabin units
    Heave: – 0.18 m, 0.22 m, 0.5G
    Pitch: -23.6°, 21.8°, 45°/s, 600°/s2
    Roll: -24.5°, 24.5°, 40°/s, 550°/s2
    Yaw: -37.0°, 37.0° , 65°/s, 800°/s2
    Surge: – 0.37, 0.35 m, 680mm/s, 7 m/s2
    Sway: – 0.33, 0.33 m, 770mm/s, 7 m/s2
    Weight: 750kg

  • PS-6TL-1500

    Ask for price

    Gross moving load: 1500kg
    Applications: Almost all types of closed cabin units.
    Heave: -0.24 m, 0.27 m
    Pitch:-20.4°, 20.4°
    Roll: ±21.3°
    Yaw: ±24.9°
    Surge: -0.36 m, 0.35 m
    Sway: -0.32 m, 0.32 m
    Weight: 1600 kg

BESPOKE SOLUTIONS

  • Truck Simulator TS-10

    Ask for price

    TS-10 is advanced truck driver training system that can be used to train professional truck and bus drivers.

QUBIC SYSTEM

  • QS-CH2

     8 900.00 *

    The QS-CH2 provides the most precise traction loss feeling by moving the entire cockpit. This 2DoF motion platform suits to any racing simulation.

  • QS-S25

     25 100.00 *

    QS-S25 motion platform called Spider is designed for customers looking for the most realistic simulation. The unique combination of professional motion technology and modern, adjustable accessories allows users to train and experience real flight or racing simulation.

  • QS-V20

     16 900.00 *

    The QS-V20 is an extended 4DoF motion cockpit, designed for pro racing car simulation, dedicated to sim racing enthusiasts.

  • QS-210

     5 850.00 *

    QS-210 – 3DoF motion system is a perfect base for professional simracing applications in various types of aluminum based cockpits avaliable on the market.

  • QS-220

     7 900.00 *

    QS-220 3DOF set is a perfect motion base for professional training applications in various types of driving and flight cockpits.

  • QS-CH1

     10 520.00 *

    QS-CH1 is a brand new, modular, and flexible motion system dedicated for land vehicles and city car driving simulators.

  • QS-617

     21 500.00 *

    The QS-617 motion platform is a perfect base for industrial testing, verification and testing application of camera modules, antennas, telescopes and ather optical technology.

  • QS-625

     21 500.00 *

    The QS-625 motion platform as a perfect base for flight and car simulators. Load capacity up to 250 kg/551 lb, compact size, and ultra-quiet operation, are not the only advantages of a six-axis machine.

SOFTWARE

  • Platform Manager – ForceSeatPM

    Free-of-charge

    ForceSeatPM is specialized application that can control all our motion platforms. It comes with built-in profiles for popular games.

  • Motion SDK – ForceSeatDI

    Ask for price

    ForceSeatDI (Direct Interface) is lower level interface than ForceSeatMI. It controls hardware directly and ForceSeatPM is not required at all. It supports Windows PC, Linux and Raspberry Pi 3.

  • Motion SDK – ForceSeatMI

    Ask for price

    ForceSeatMI (Motion Interface) is a programming interface that allows to add a motion platform support to basically any application or a game. The ForceSeatMI does not control hardware directly – it sends all data to ForceSeatPM. This approach delegates responsibility of transforming telemetry data to a real motion from the application to ForceSeatPM.

  • Motion Theater

    Ask for price

    Do you want to feel the same thing that movie stars do during a car chase, a Rollercoaster ride or a flight of an armed heavy fighter aircraft? Now you can experience all of that without leaving the house.

* Price does not include tax (VAT), customs duty and transportation costs. The information contained in this web page does not constitute an offer in the meaning of the Civil Code of 23rd April 1964.
6DoF Size Comparison

Too many options?

If you are not certain what to choose for your project, let us assist you. Please check below tutorial that should help you to narrow your choices and then contact us to discuss final details.
