Description
PLATFORM HIGHLIGHTS
6
ARCHITECTURE
350
GROSS MOVING LOAD
300
ACTUATOR STROKE
390
WEIGHT
KEY FEATURES
Resistant to overload
Good resistance to momentary overload resulting from dynamic change in mass distribution
Super Silent
Extremely quiet and smooth operation
Movement repeatability
High ability to generate vibrations and incredible movement repeatability
Safety
Safe mechanical design resistant to permanent damage
Easy to transport
Perfect size for worldwide transportation
Unleashed performance
Highest performance in compact and mobile chassis
Software support
Control all our motion platforms using one of ours SDK
VR technology
All our motion platforms work in VR environment

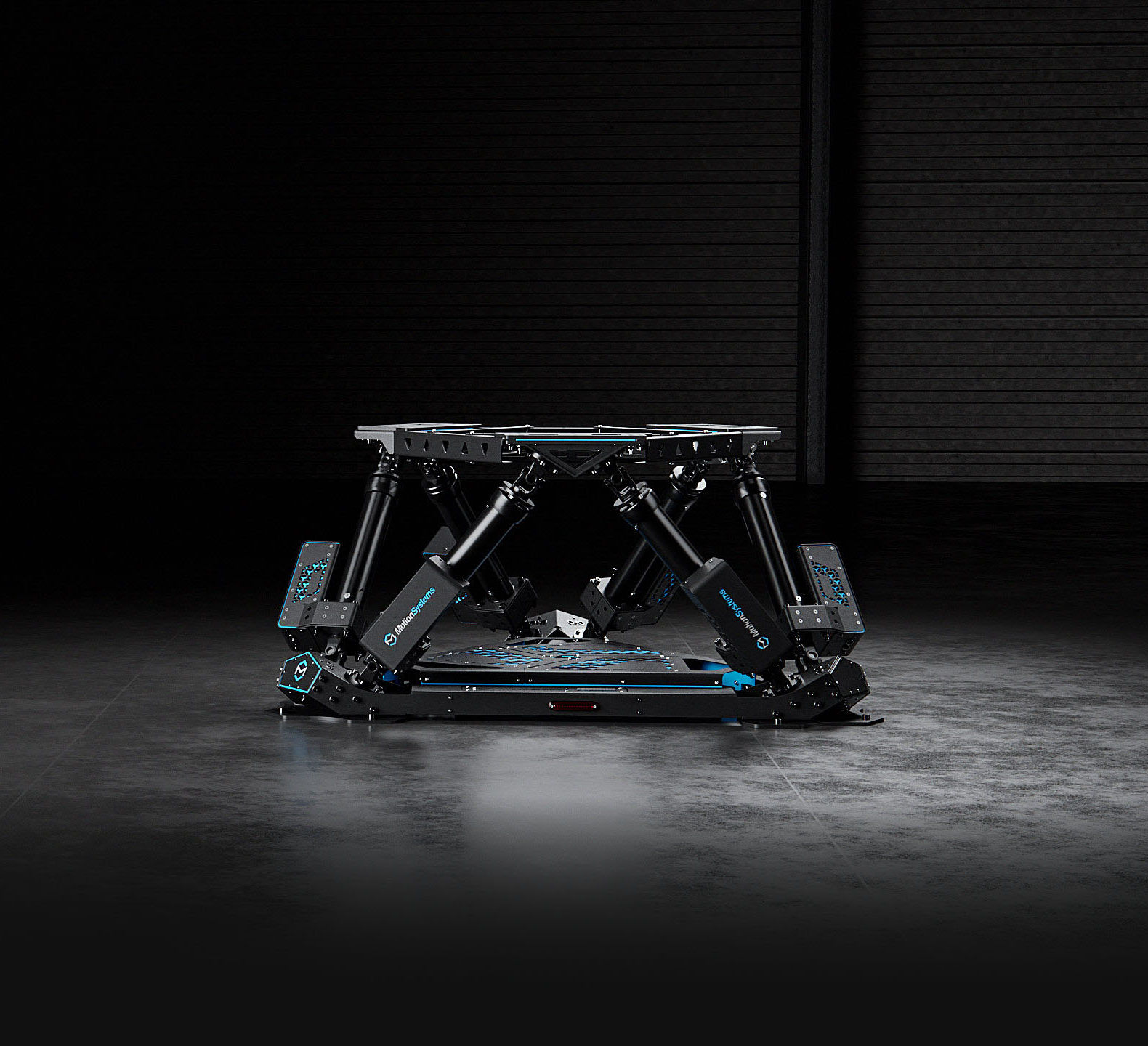

MOTION PLATFORM PS-6TL-350

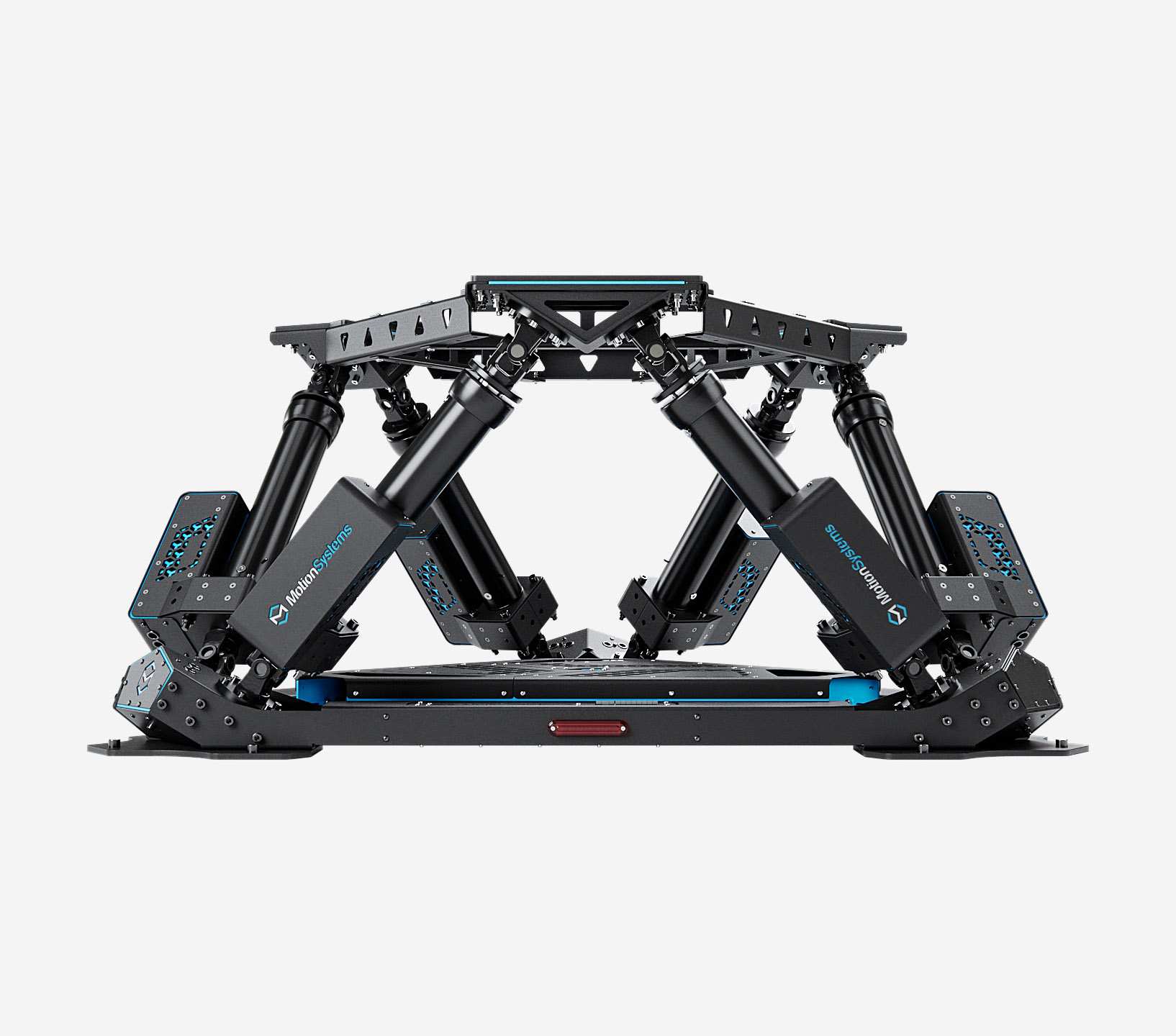

The PS-6TL-350 device is a type of Stewart platform with gross moving load up to 350 kg. It is a type of six-degree-of-freedom parallel manipulator that allows execution of three translational movements and three rotational movements about the vertical, longitudinal and lateral axis.
APPLICATIONS
The PS-6TL-350 6DOF motion solution is perfectly suitable for applications like aircraft, military vehicle or racing car and boats simulators with visualization on screen or VR. Further, the VR Headway technology making virtual reality experience enhanced by motion platform’s movements more real than ever. PS-6TL-350 is successfully implemented in the projects:
- flight simulators
- military simulators (air, land, sea)
- racing cars simulators
- helicopter training systems
- virtual reality simulators for entertainment
COMPACT DESIGN
This compact machine can do a lot, even it’s small size it has impressive performance. The PS-6TL-350 is the smallest motion system from the family of platforms based on linear actuators technology.

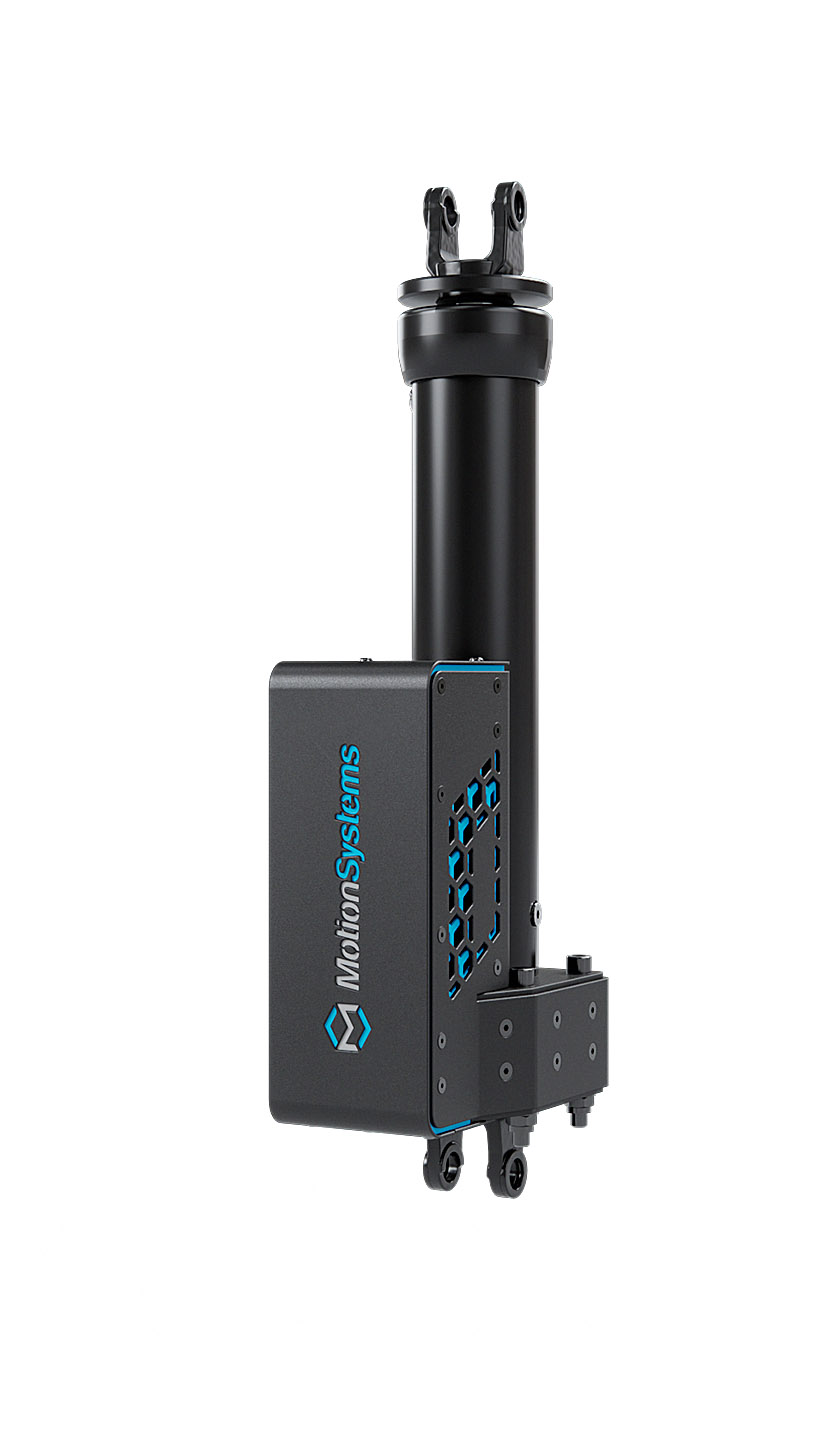

LINEAR MOTION TECHNOLOGY
This super silent 6DoF motion platform is being optimized through and through. Top benefits of PS-6TL-350 based on linear actuator’s technology:
- precise positioning
- good resistant to overload
- real time vibrations
- high rigidity
- reduced sensitivity to certain errors
- extremely quiet operation
- safe mechanical design resistant to electronic failures
- small footprint
- easier assembly
- lower operating costs
- lower maintenance costs
- easy to integrate with other systems and equipment
- more precise than hydraulics and pneumatics
- increased flexibility and synchronization options
GENERAL SPECIFICATION
System performance
EXCURSION
VELOCITY
ACCELERATION
SINGLE DOF
Surge
EXCURSION (SINGLE)
-0.3, 0.272 m | -11.81, 10.62 in
VELOCITY
0.68 m/s | 33.86 in/s
ACCELERATION
6.4 m/s²
Sway
EXCURSION
-0.26, 0.26 m | -10.23, 10.23 in
VELOCITY
0.7 m/s | 27.56 in/s
ACCELERATION
5 m/s²
Heave
EXCURSION
-0.168, 0.187 m | - 6.14, 7.36 in
HEAVE
0.37 m/s | 14.57 in/s
ACCELERATION
5 m/s²
Roll
EXCURSION
-20.6°, 20.6°
ROLL
45°/s
ACCELERATION
600 °/s²
Pitch
EXCURSION
-19.9°, 18.1°
PITCH
50°/s
ACCELERATION
650 °/s²
Yaw
EXCURSION
-27.8°, 27.8°
PITCH
60°/s
ACCELERATION
700 °/s²
Payload specification
Product weight
390 kg | 860 lb
Payload
300 kg | 661 lb
Gross Moving Load
350 kg | 772 lb
Moments of inertia
Ixx = 125 kg*m²
Iyy = 125 kg*m²
Izz = 125 kg*m²
Main dimensions
Total length
1660 mm | 65.35 in
Total width
1726.35 mm | 67.96 in
Min height
789.54 mm | 31.08 in
Power requirements
Power supply requirement
220-250 VAC Single Phase
Average Power (kVA)
2.9 kVA
Peak Power (kVA)
6.2 kVA
Peak Current (A)
28 A
Average Power - stress test (kW)
1.5 kW
Average Power - typical game (kW)
0.3 kW
Connection
USB | Ethernet
ADD-ONS & ACCESSORIES
POWER CABINET
PS-SB230-Q3
Power cabinets PS-SB230-Q3 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
€ 3900.00 (tax and duty not incl.)
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
€ 1200.00 (tax and duty not incl.)
EXTENDED TOP FRAME
Extended rig (top frame) with multiple assembly holes and brackets for direct mounting of the seat or cabin.
€ 1900.00 (tax and duty not incl.)
ADD-ONS & ACCESSORIES
POWER CABINET
PS-SB230-Q3
Power cabinets PS-SB230-Q3 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
€ 3900.00 (tax and duty not incl.)
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
€ 1200.00 (tax and duty not incl.)
EXTENDED TOP FRAME
Extended rig (top frame) with multiple assembly holes and brackets for direct mounting of the seat or cabin.
€ 1900.00 (tax and duty not incl.)
SOFTWARE BASICS
To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.
If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.
ForceSeatMI supports
- Windows
ForceSeatDI supports
- Windows
- Raspberry Pi
- Linux
Both SDK's support*
- Unity
- Unreal Engine
- Matlab & Simulink
- C/C++/C#
- Python
