PS-6TM-150

 13 800.00 *

Payload: 150kg
Applications: Ultra lightweight open cabin units
Heave:  -106.9 mm +117.1 mm
Pitch: -25° +25.6°
Roll:
±26°
Yaw:
±22.5°
Surge:
-100 +121 mm
Sway: -99.5 mm +121 mm
Weight: 305 kg

Categories: , Tags: ,
PS-6TM-150
PROFESSIONAL SERIES
ASK ABOUT PRODUCT

*tax and duty not incl.

€ 13 800.00 *

PLATFORM HIGHLIGHTS

6

ARCHITECTURE

150

PAYLOAD

33

MIN HEIGHT

305

WEIGHT

MOTION PLATFORM

PS-6TM-150

PROFESSIONAL SERIES

6

ARCHITECTURE

150

PAYLOAD

33

MIN HEIGHT

305

WEIGHT

KEY FEATURES

Durability

Cost-effective operation, high reliability and safety

Safety

Safe mechanical design resistant to permanent damage

Effective acceleration

Impressive angles for pitch -30°,+33°

Compact design

Small footprint and lightweight body

Easy to transport

Equipped with wheels, low profile in parking position

Unleashed performance

Highest performance in compact and mobile chassis

Software support

Control all our motion platforms using one of ours SDK

VR technology

All our motion platforms work in VR environment

MOTION PLATFORM PS-6TM-150

SMALLEST IN 6DOF FAMILY

The PS-6TM-150 motion platform is the smallest 6DoF in professional series. It is the most compact, but yet powerful and reliable unit greatly applicable into single implementations for simulation and entertainment. Smooth movement with impressive angles gives a lot of possibilities in testing and verification for industry purposes. Due to VRHeadway, all virtual reality applications work easy and perfectly both home and professional use.

  • platforms are suitable for small flight simulators
  • vehicle training simulators for 1 person
  • small and medium size military training simulators for up to 1 person
  • small and medium size mining equipment simulators
  • industrial testing
  • VR for entertainment and simulation for 1 person

GENERAL SPECIFICATION

System performance

EXCURSIONS

SINGLE DOF

NON-SINGLE DOF

Surge

SINGLE DOF

-0.10 m, 0.12 m

NON-SINGLE DOF

-0.12 m, 0.13 m

Sway

SINGLE DOF

-0.10 m, 0.10 m

NON-SINGLE DOF

-0.11 m, 0.11 m

Heave

SINGLE DOF

-0.11m, 0.12 m

NON-SINGLE DOF

-0.11 m, 0.12 m

Roll

SINGLE DOF

-26.0°, 26.0°

NON-SINGLE DOF

-29.0°, 29.0°

Pitch

SINGLE DOF

-25.0°, 25.6°

NON-SINGLE DOF

-30.0°, 33.0°

Yaw

SINGLE DOF

-22.5°, 22.5°

NON-SINGLE DOF

-25.0°, 25.0°

Payload specification

Payload

150 kg

Product weight

305 kg

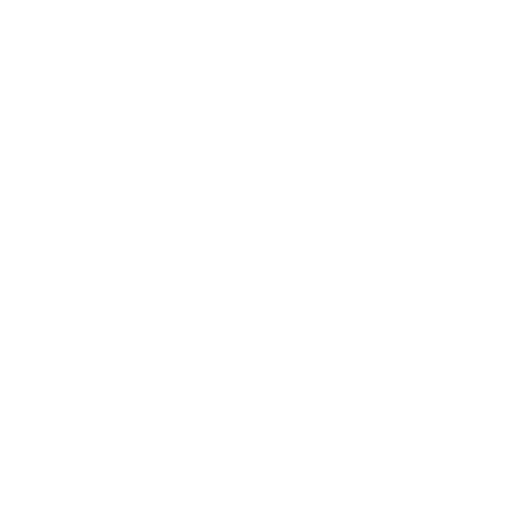

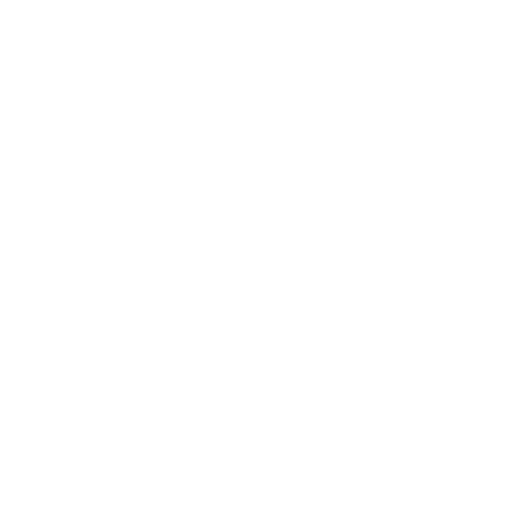

Main dimensions

Total width

1145 mm

MIN Height

336.5 mm

Total height

465.5 mm

(machine with foots)

Total length

1273 mm

Power requirements

Max power consumption

4,3 kW 17 Amps

Power supply requirements

200-250 VAC Single Phase

DOWNLOAD DATASHEETDOWNLOAD DATASHEETWORK ENVELOPESWORK ENVELOPES

PRODUCT OVERVIEW

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB230 + PS-SB230FI123 + PS-SB230FI456

Power cabinets PS-SB230 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required.

Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

CONTENTS OF THE SET:

  • PS-SB230
  • PS-SB230FI123
  • PS-SB230FI456
  • PS-SBA3 (rack connector)
  • PS-SBR (remote control unit)
  • PS-SBEC (EMCY cable)

€ 1800.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT
PS-SB230 PS-SB230FL123 PS-230FL456

WHEELS AND FEET

One set of wheels and feet dedicated for transport and platform stabilization on the floor. Motion platform anchoring is not required.

€ 134.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB230 + PS-SB230FI123 + PS-SB230FI456

PS-SB230 PS-SB230FL123 PS-230FL456

Power cabinets PS-SB230 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required.

Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

CONTENTS OF THE SET:

  • PS-SB230
  • PS-SB230FI123
  • PS-SB230FI456
  • PS-SBA3 (rack connector)
  • PS-SBR (remote control unit)
  • PS-SBEC (EMCY cable)

€ 1800.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

WHEELS AND FEET

One set of wheels and feet dedicated for transport and platform stabilization on the floor. Motion platform anchoring is not required.

€ 134.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

SOFTWARE - FAQ

Even most advanced hardware is nothing without good software. It might looks simple from the outside, but under the hood there is a lot going on, in both firmware and PC software. For instance, we monitor motion stream characteristic and adjust frequency inverters parameters on the fly to make sure that motion platforms is smooth when it is required or fast and brutal in other cases.

WHAT KIND OF SOFTWARE DO I GET?

Every our motion platform is delivered with the platform manager. This application is free of charge for every customers who buys our motion platforms. This rules all to both home and professional series motion platforms. The application allows to use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware and use SDK - ForceSeatMI to connect it to your custom applications.

CAN I CONTROL MOTION PLATFORM FROM MY SOFTWARE?

You can control all our motion platforms using one of ours SDKs.

IS IT VR READY?

All our motion platforms work in VR environment. Additionally if you need to compensate unwanted head movements caused by motion platform's top frame movements, we have a technology that will do it for you. The VR HeadWay is part of the platform manager and it is available free-of-charge for all customers who bought one of our motion platforms.

WILL IT WORK WITH UNREAL ENGINE 4 AND UNITY?

Both our SDK support both - UE4 and Unity. It means that as long as you can modify UE4/Unity application, you can add support for motion platform to it. Click here for details.

However if you use 3rd party closed source UE4/Unity application or game, then it will not support motion platform by default. Please check with application developers to confirm if they can use our SDKs in their product.

WILL IT WORK WITH LINUX?

The platform manager application supports only Windows PC however our low lever SDK - ForceSeatDI can be used with Linux and Raspberry Pi 3.
