PS-3TM-350

 8 500.00 *

Payload: 350kg
Applications: Ultra lightweight open cabin units
Heave: -128 +139 mm, 266mm/s, 0.5G
Pitch: ±17.1°, 60°/s, 250°/s2
Roll: ±20°, 50°/s, 250°/s2
Weight: 260kg

Categories: , Tags: ,
PS-3TM-350
PROFESSIONAL SERIES
ASK ABOUT PRODUCT

*tax and duty not incl.

€ 8 500.00 *

PLATFORM HIGHLIGHTS

3

ARCHITECTURE

350

PAYLOAD

53

MIN HEIGHT

260

WEIGHT

6

MAX POWER CONSUMPTION

MOTION PLATFORM

PS-3TM-350

PROFESSIONAL SERIES

3

ARCHITECTURE

350

PRODUCT WEIGHT

53

MAX USER WEIGHT

260

WEIGHT

6

MAX POWER CONSUMPTION

ASK ABOUT PRODUCTASK ABOUT PRODUCT

KEY FEATURES

Movement repeatability

High ability to generate vibrations and incredible movement repeatability

Compact design

Small footprint and lightweight body

Safety

Safe mechanical design resistant to electronic failures. Safety Integrity Level up to 3

Software support

Control all our motion platforms using one of ours SDK

Unleashed performance

Impressive dynamics and performance

Super Silent

Extremely quiet and smooth operation

VR technology

All our motion platforms work in VR environment

Warranty

Global technical support and gear lifetime up to 10 years of operation

MOTION PLATFORM PS-3TM-350

UNLEASHED PERFORMANCE

The PS-3TM-350 motion platform is the most compact machine from the 3DoF Motion Systems professional series. The platform was designed for customers who require reliability and impressive dynamic and performance. Self stabilization and unprecedented precision offers wide range of possible application in automotive, defence or entertainment sector. Smoothness and movement repeatability makes it great testing and verification tool.  PS-3TM-350 motion system is the ultimate solution for open cabin small motion simulators for applications where 6DoF is not necessary.

  • platforms are suitable for small size open cabin land, speed boat or flight simulators
  • vehicle training simulators for 1 person
  • small military training simulators for 1 person
  • small size mining equipment simulators
  • high load entertainment simulators for 1 person
  • virtual reality up to 2 people

GENERAL SPECIFICATION

System performance

EXCURSIONS

Velocity

Acceleration

SINGLE DOF

NON-SINGLE DOF

Heave

SINGLE DOF

-0.13, 0.14 m

NON-SINGLE DOF

-0.13, 0.14 m

Velocity

0,266 m/s

Acceleration

5 m/s²

Roll

SINGLE DOF

-20.0°, 20.0°

NON-SINGLE DOF

-20.0°, 20.0°

Velocity

50 °/s

Acceleration

250°/s²

Pitch

SINGLE DOF

-17.1°, 17.1°

NON-SINGLE DOF

-22.3°, 24.5°

Velocity

60°/s

Acceleration

250°/s²

Payload specification

Payload

350 kg

Product weight

260 kg

Main dimensions

Total width

1115 mm

Total height

596 mm

(machine with foots)

Total length

1317 mm

Power requirements

Nominal power consumption

1,5 kW

Power supply requirements

200-250 VAC Single Phase

DOWNLOAD DATASHEETDOWNLOAD DATASHEETWORK ENVELOPESWORK ENVELOPESPRODUCT CARDPRODUCT CARD

PRODUCT OVERVIEW

ADD-ONS & ACCESSORIES

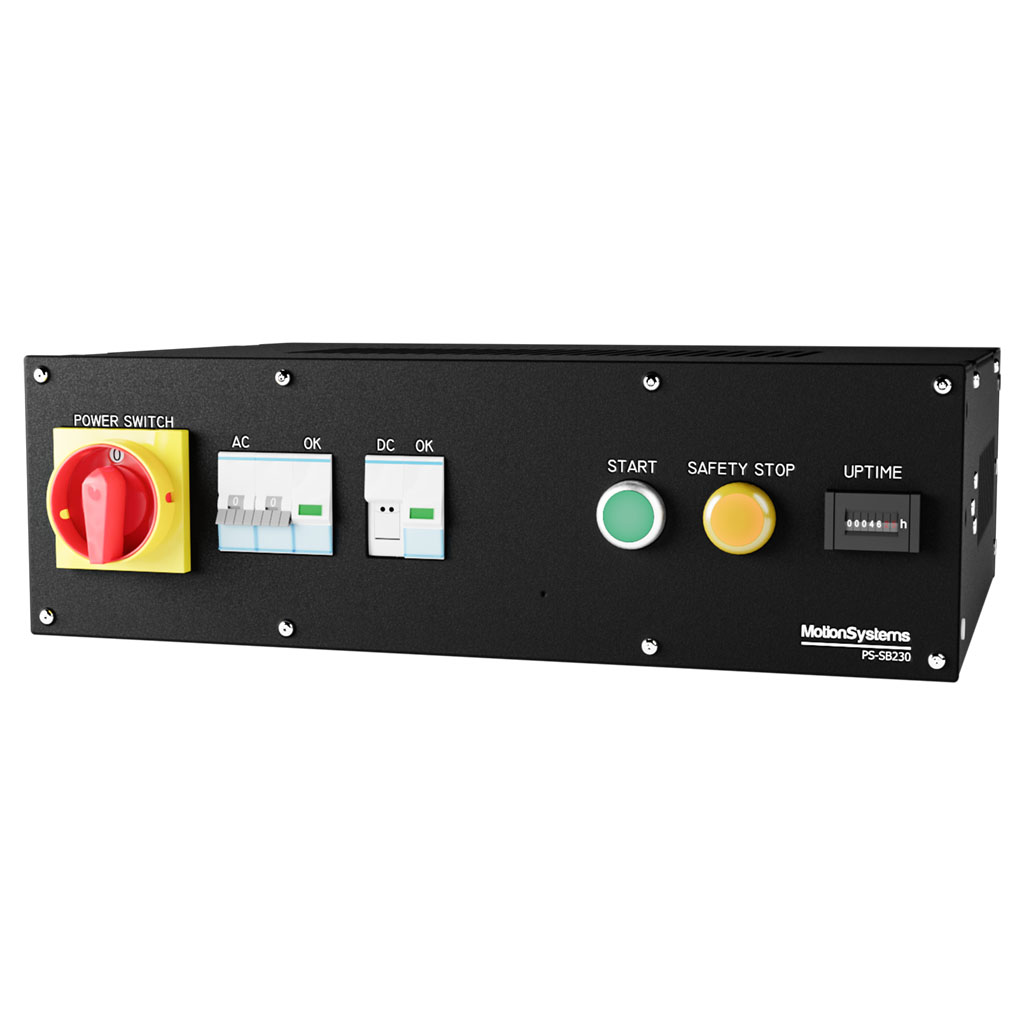

POWER CABINET

PS-SB230

Power cabinets PS-SB230 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

€ 1 500.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT
PS-SB-230

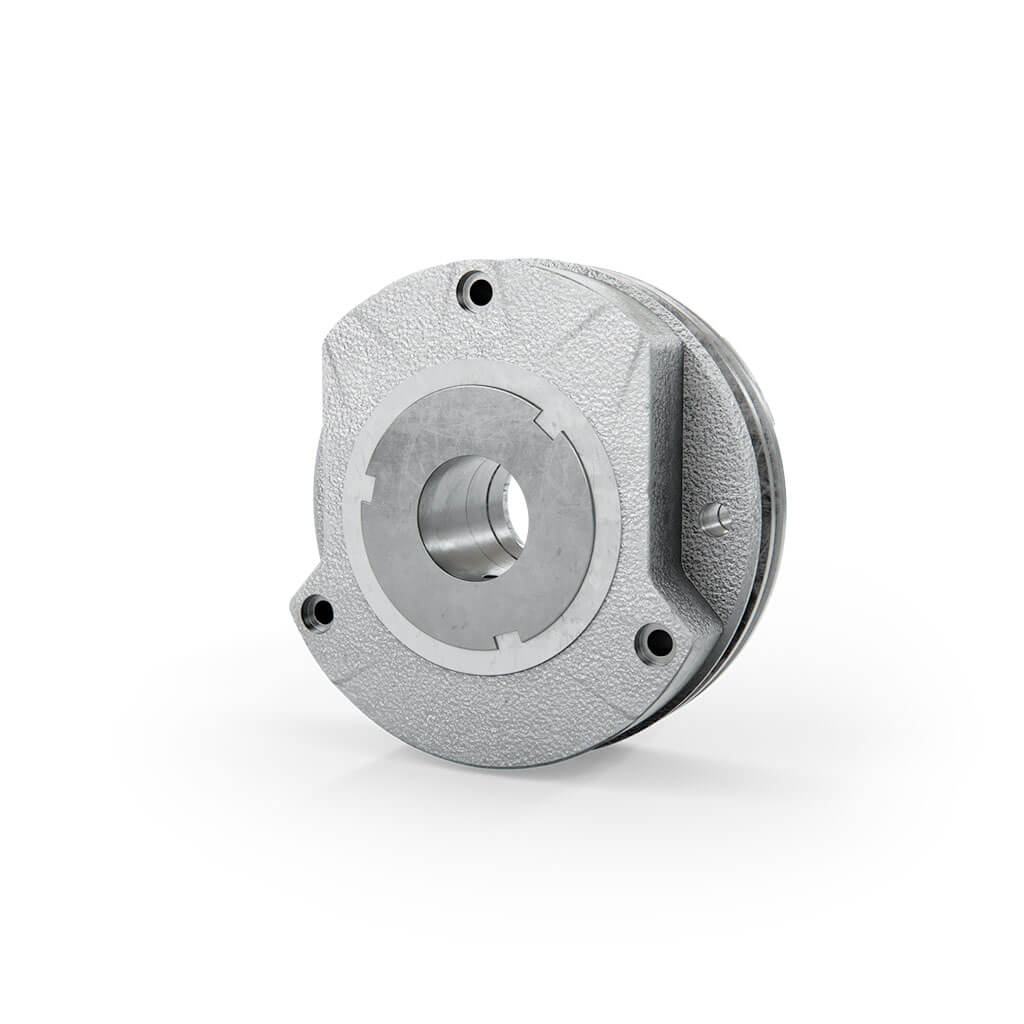

ELECTROMAGNETIC SAFETY BRAKES

One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).

€ 360.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

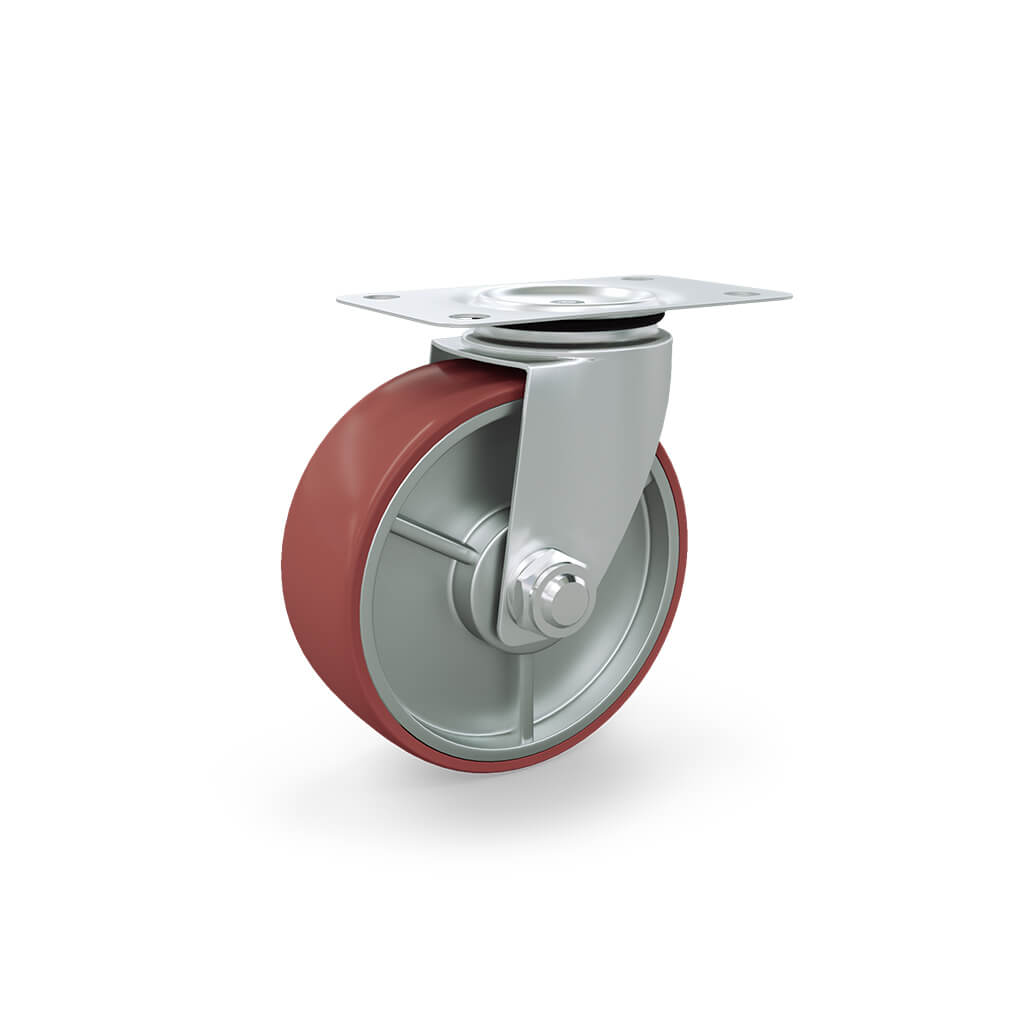

WHEELS AND FEET

One set of wheels and feet dedicated for transport and platform stabilization on the floor. Motion platform anchoring is not required.

€ 134.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

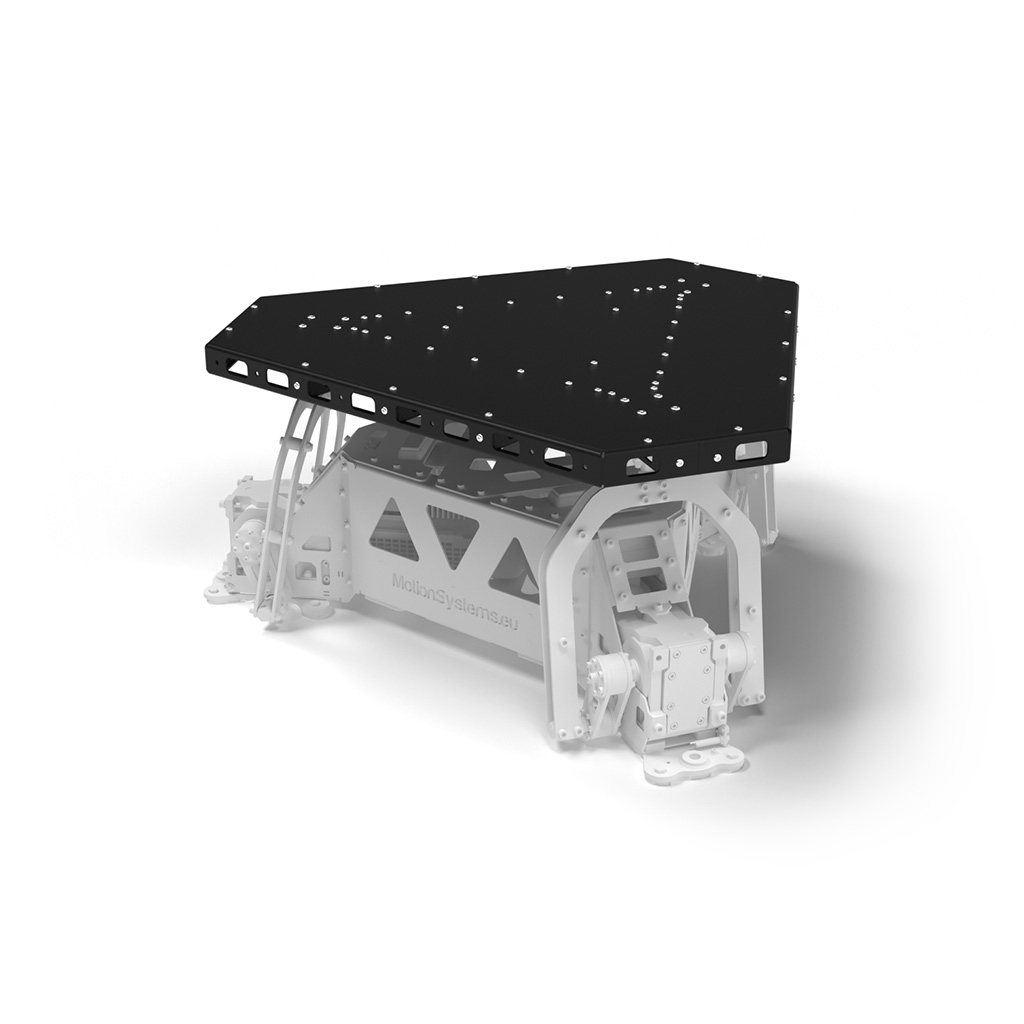

EXTENDED TOP FRAME

Extended rig (top frame) with multiple assembly holes and brackets for direct mounting of the seat or cabin.

€ 337.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB230

PS-SB-230

Power cabinets PS-SB230 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

€ 1 500.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

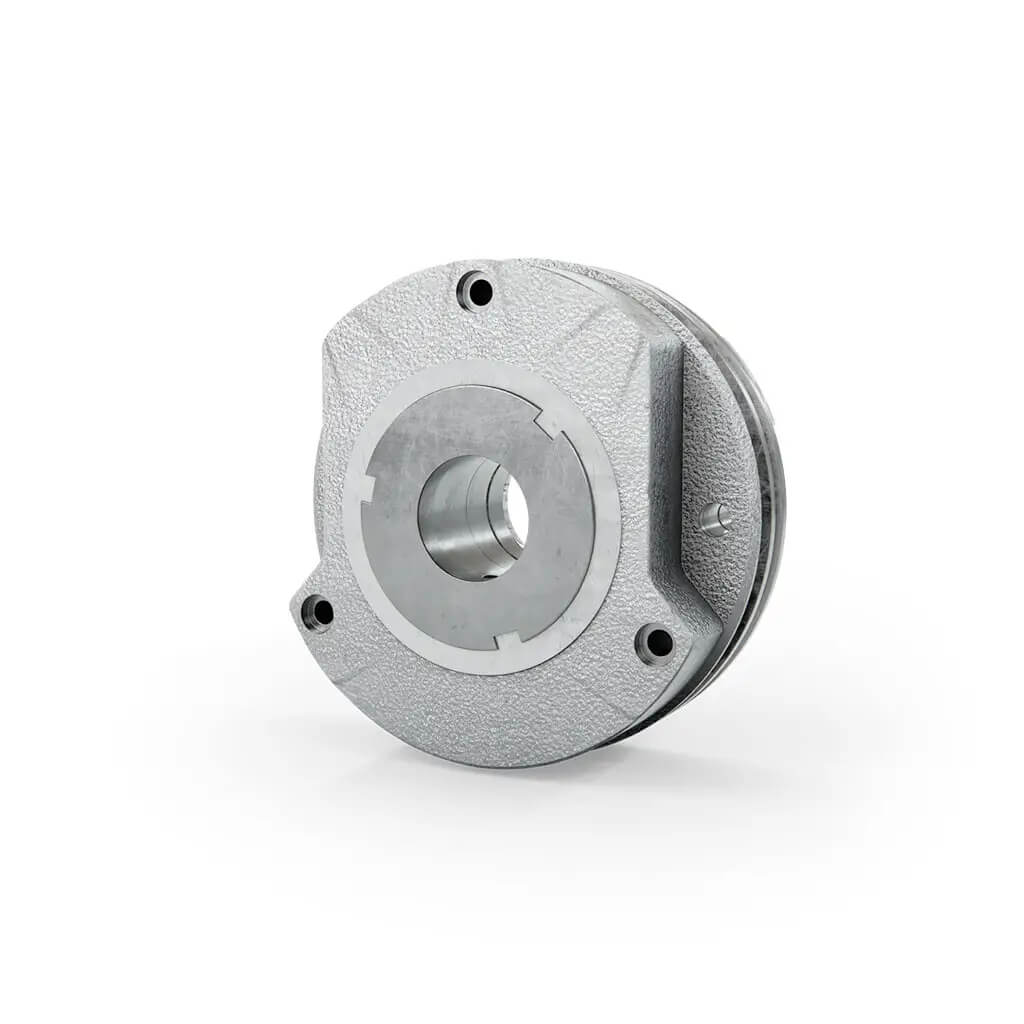

ELECTROMAGNETIC SAFETY BRAKES

One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).

€ 360.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

WHEELS AND FEET

One set of wheels and feet dedicated for transport and platform stabilization on the floor. Motion platform anchoring is not required.

€ 134.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

EXTENDED TOP FRAME

Extended rig (top frame) with multiple assembly holes and brackets for direct mounting of the seat or cabin.

€ 337.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

LATEST PRODUCT VIDEO

SOFTWARE - FAQ

Even most advanced hardware is nothing without good software. It might looks simple from the outside, but under the hood there is a lot going on, in both firmware and PC software. For instance, we monitor motion stream characteristic and adjust frequency inverters parameters on the fly to make sure that motion platforms is smooth when it is required or fast and brutal in other cases.

WHAT KIND OF SOFTWARE DO I GET?

Every our motion platform is delivered with the platform manager. This application is free of charge for every customers who buys our motion platforms. This rules all to both home and professional series motion platforms. The application allows to use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware and use SDK - ForceSeatMI to connect it to your custom applications.

CAN I CONTROL MOTION PLATFORM FROM MY SOFTWARE?

You can control all our motion platforms using one of ours SDKs.

IS IT VR READY?

All our motion platforms work in VR environment. Additionally if you need to compensate unwanted head movements caused by motion platform's top frame movements, we have a technology that will do it for you. The VR HeadWay is part of the platform manager and it is available free-of-charge for all customers who bought one of our motion platforms.

WILL IT WORK WITH UNREAL ENGINE 4 AND UNITY?

Both our SDK support both - UE4 and Unity. It means that as long as you can modify UE4/Unity application, you can add support for motion platform to it. Click here for details.

However if you use 3rd party closed source UE4/Unity application or game, then it will not support motion platform by default. Please check with application developers to confirm if they can use our SDKs in their product.

WILL IT WORK WITH LINUX?

The platform manager application supports only Windows PC however our low lever SDK - ForceSeatDI can be used with Linux and Raspberry Pi 3.
