PS-3TM-200

 7 320.00 *

Payload: 200kg
Applications: Ultra lightweight open cabin units
Heave: -0.08, 0.09 m
Pitch: -17.9°, 18.1°
Roll: -20.9°, 20.9°
Weight: 100kg

Categories: , Tags: ,
PS-3TM-200
PROFESSIONAL SERIES
ASK ABOUT PRODUCT

*tax and duty not incl.

€ 7 320.00 *

PLATFORM HIGHLIGHTS

3

ARCHITECTURE

200

PAYLOAD

39

HEIGHT

100

WEIGHT

MOTION PLATFORM

PS-3TM-200

PROFESSIONAL SERIES

3

ARCHITECTURE

200

PAYLOAD

53

MAX USER WEIGHT

260

WEIGHT

ASK ABOUT PRODUCTASK ABOUT PRODUCT

KEY FEATURES

Precision in movement repeatability

High ability to generate vibrations and incredible movement repeatability

Compact design

Extremely small footprint and lightweight body

Safety

Safe mechanical design resistant to electronic failures. Safety Integrity Level up to 3

Software support

Control all our motion platforms using one of ours SDK

Low power consumption

High performance devices with minimal power budget

Super Silent

Totally smooth and quite operation

VR technology

All our motion platforms work in VR environment

Easy to transport

Perfect size enabling worldwide transportation

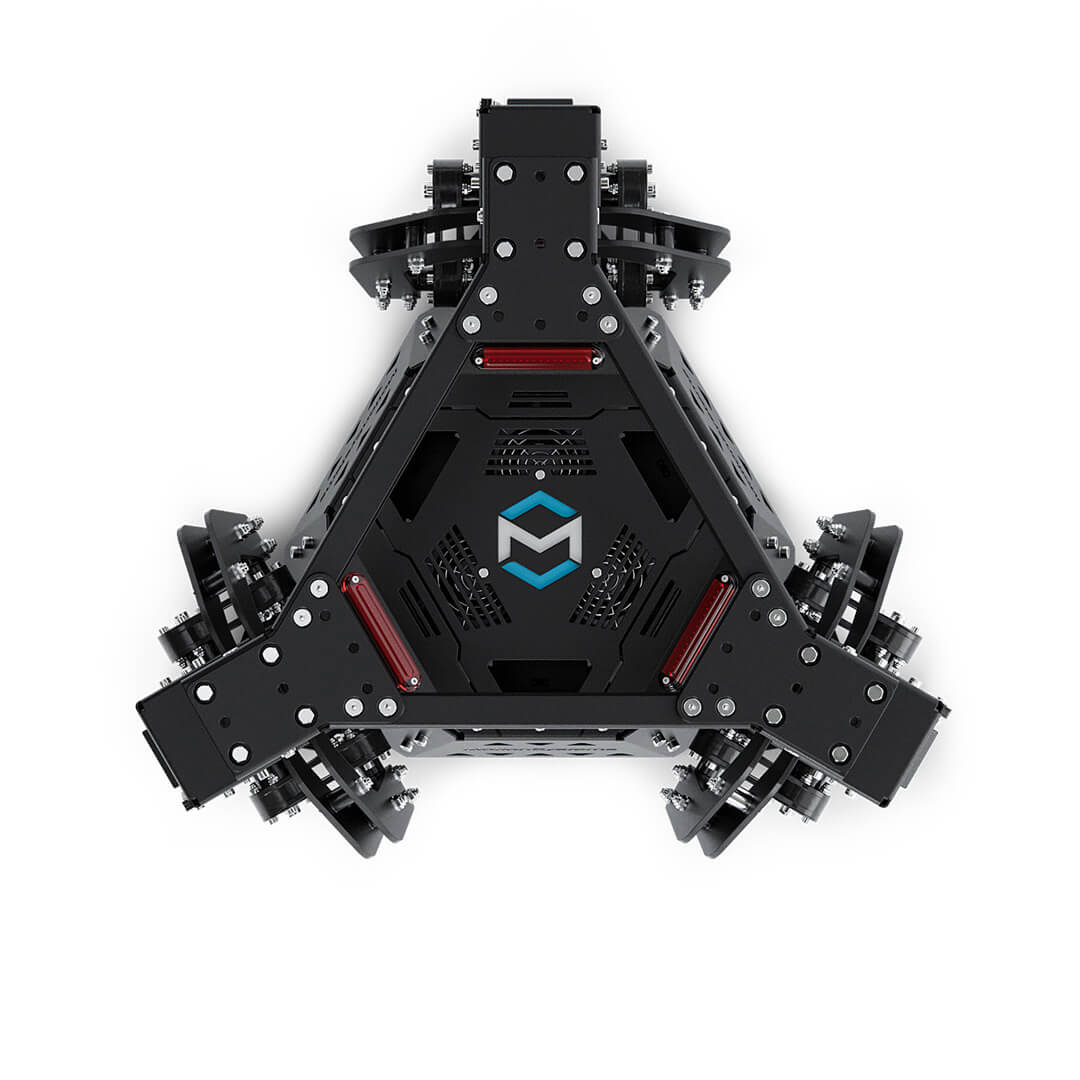

MOTION PLATFORM PS-3TM-200

PS-3TM-200 motion platform can offer realistic simulations at three-axis with excellent smoothness and movement repeatability. Even its small size and lightweight body, it is suitable to work as small racing and flight simulators, testing and verification of technology tools, crane or mining technology or even precision platform positioning.

Motion Platform PS-3TM-200
Motion Platform PS-3TM-200

EXCELLENCE IN MOTION

Motion Platform PS-3TM-200

This dynamic 3DoF motion system is being optimized through and through. PS-3TM-200 will fit in as a great home-use device (possibility of transport through the door 80 cm ) or as a motion base for various VR simulators in theme parks.

  • platforms are suitable for small size open cabin land, speed boat or flight simulators
  • vehicle training simulators for 1 person
  • small military training simulators for 1 person
  • small size mining equipment simulators
  • entertainment simulators for 1 person
  • virtual reality up to 1 people
ASK ABOUT PRODUCTASK ABOUT PRODUCT

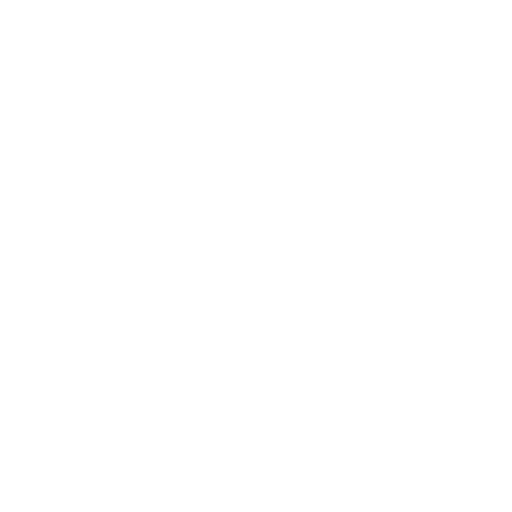

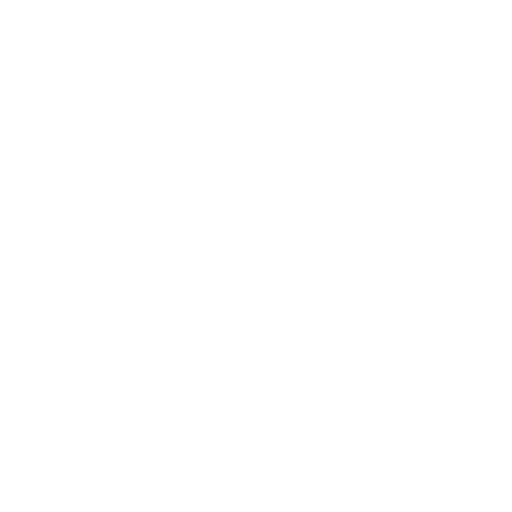

COMPACT DESIGN

Motion Platform PS-3TM-200

Small PS-3TM-200 is very handy solution, even its small size it has impressive  roll, pitch and heave values. Lightweight, 100 kg device is capable of dealing with payload almost twice times bigger than its own weight – 200 kg.

ASK ABOUT PRODUCTASK ABOUT PRODUCT
Motion Platform PS-3TM-200

GENERAL SPECIFICATION

System performance

EXCURSIONS

SINGLE EXCURSION

MAXIMUM EXCURSION

Heave

SINGLE EXCURSION

-0.08, 0.09 m

MAXIMUM EXCURSION

0.181 m

Roll

SINGLE EXCURSION

-20.9°, 20.9°

MAXIMUM EXCURSION

-20.9°, 20.9°

Pitch

SINGLE EXCURSION

-17.9°, 18.1°

MAXIMUM EXCURSION

-25.0°, 24.5°

Payload specification

Payload

200 kg | 440 lb

Product weight

100 kg | 220 lb

Main dimensions

Total width

793 mm | 31,2 in

Total height

392 mm | 15,4 in

(machine with foots)

Total length

837 mm | 32,9 in

Power requirements

Max power consumption

2,2 kW 8.8 Amps

Power supply requirements

200-250 VAC Single Phase

DOWNLOAD DATASHEETDOWNLOAD DATASHEETPRODUCT CARDPRODUCT CARD

PRODUCT OVERVIEW

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB230 + PS-SB230FI123

Power cabinets PS-SB230 + PS-SB230FI123 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

CONTENTS OF THE SET:

  • 1x PS-SB230
  • 1x PS-SB230FI123
  • 1x PS-SBA2 (rack connector)
  • 1x PS-SBR (remote control unit)
  • 1x PS-SBEC (EMCY cable)

€ 1 500.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT
PS-SB230FL12

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB230 + PS-SB230FI123

PS-SB230FL12

Power cabinets PS-SB230 + PS-SB230FI123 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

€ 1 500.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

DOWNLOAD OUR CATALOG

Find out more about company and products

CATALOG 2019/2020CATALOG 2019/2020

DOWNLOAD OUR CATALOG

CATALOG 2019/2020CATALOG 2019/2020

SOFTWARE BASICS

To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.

If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.

ForceSeatPM supports

  • Windows

ForceSeatDI supports

  • Windows
  • Raspberry Pi
  • Linux

Both SDK's support*

  • Unity
  • Unreal Engine
  • Matlab & Simulink

*Support for Motion Platforms can be added if UE4/Unity application is possible to modify.
