Description
PLATFORM HIGHLIGHTS
6
ARCHITECTURE
1500
GROSS MOVING LOAD
124
MIN HEIGHT
1600
WEIGHT
13
MAX POWER CONSUMPTION
KEY FEATURES
Incredible precision
High rigidity designed platform
Extensive range of motion
Huge working envelope. Higher angle of YAW and greater ranges of SURGE and SWAY
Modular and Reconfigurable
Possibility of on site assembly, modular spare parts and various actuators stroke are available
Software support
Control all our motion platforms using one of ours SDK
VR technology
All our motion platforms work in VR environment
Effective acceleration
Impressive PITCH and ROLL accelerations
Durability
Cost-effective operation, high reliability and safety
Warranty
Global support and up to 10 years extended warranty

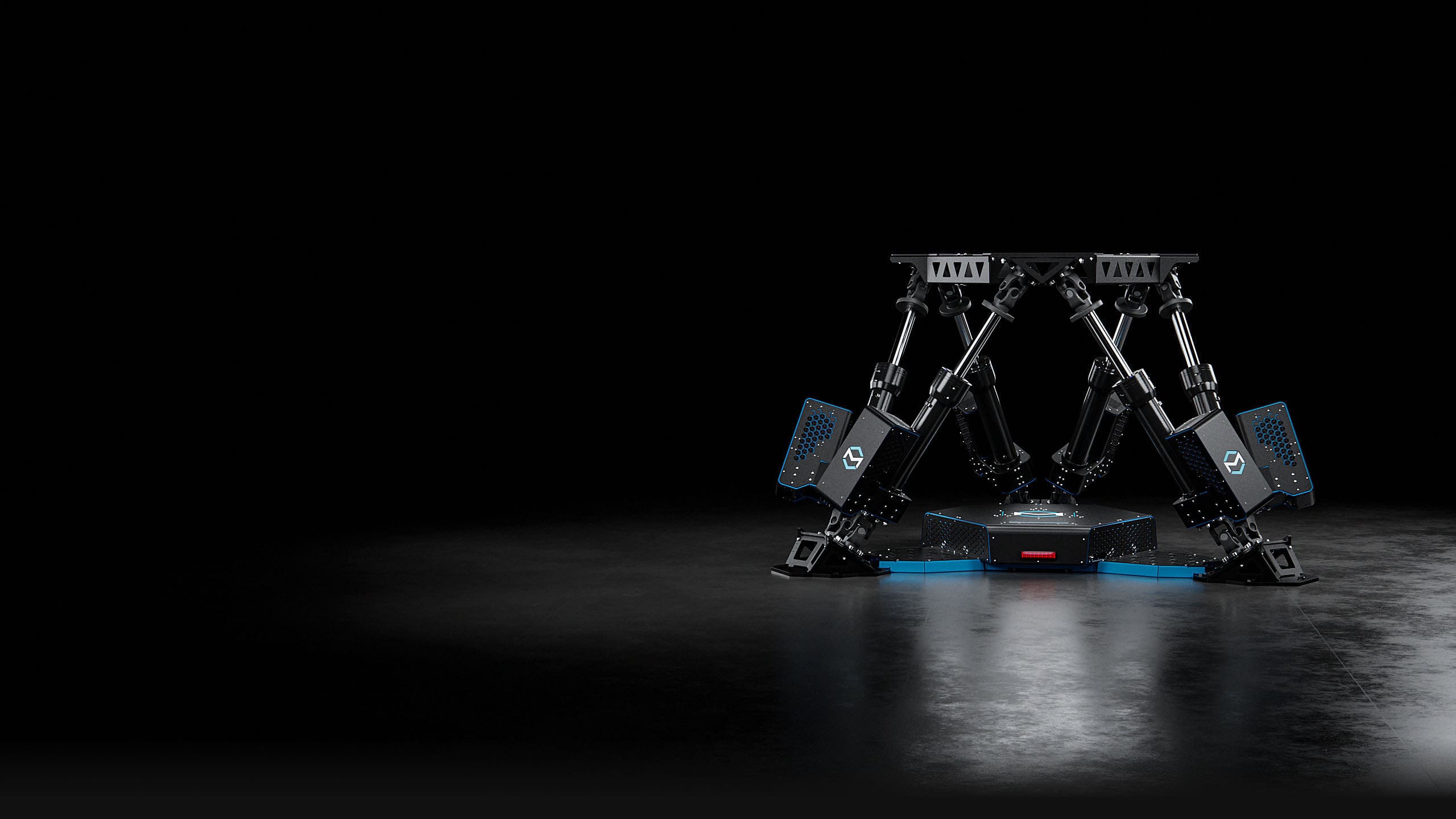

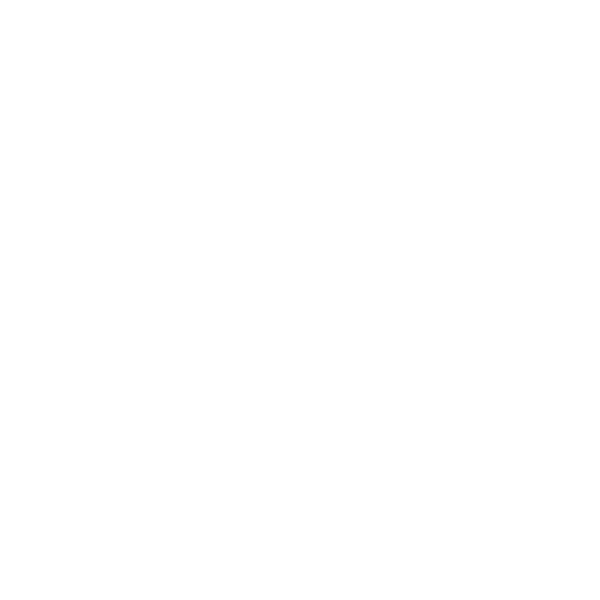

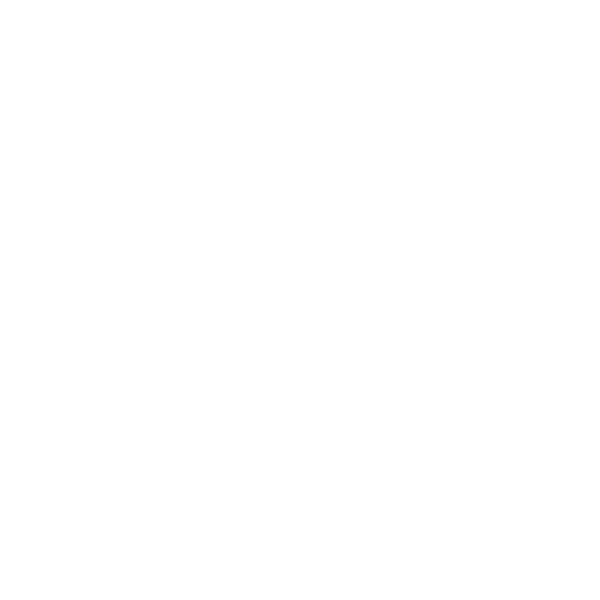

MOTION PLATFORM PS-6TL-1500
Ready for EASA Certification
The PS-6TL-1500 product based on a Stewart platform, which provides the highest level of motion sensation and matches unique requirements of customers. The 6DoF motion platform is mainly intended for professional applications in defense sector, flight and driving simulation and entertainment industry. Motion platform is applicable in projects regarding:
- military vehicle simulators
- rotary and fixed wing flight simulators
- car and truck driving simulators
- mining vehicle simulators
- naval ship simulators
- advanced research, testing and university simulators
- movie industry (including camera stabilization)
- virtual reality simulators for entertainment
- satellite, telescope and antenna positioners
- industrial testing
- simulation of autonomous vehicles
GENERAL SPECIFICATION
System performance
Excursion
SINGLE DOF
Excursion
NON-SINGLE DOF
Velocity
Acceleration
Surge
Excursions Single DOF
-0.36 m, 0.35 m
-14.3 in, 13.8 in
Excursions Non-Single DOF
-0.38 m, 0.38 m
-14.9 in, 14.9 in
Velocity
0.7 m/s
27.6 in/s
Acceleration
7 m/s²
0.7 g
Sway
Excursions Single DOF
-0.32 m, 0.32 m
-12.6 in, 12.6 in
Excursions Non-Single DOF
-0.38 m, 0.38 m
-14.9 in, 14.9 in
Velocity
0.7 m/s
27.6 in/s
Acceleration
7 m/s²
0.7 g
Heave
Excursions Single DOF
-0.24 m, 0.27 m
-9.4 in, 10.6 in
Excursions Non-Single DOF
-0.24 m, 0.27 m
-9.5 in, 10.6 in
Velocity
0.4 m/s
15.7 in/s
Acceleration
5 m/s²
0.5 g
Roll
Excursions Single DOF
-21.3°, 21.3°
Excursions Non-Single DOF
-22.5°, 22.5°
Velocity
35°/s
Acceleration
250°/s²
Pitch
Excursions Single DOF
-20.4°, 20.4°
Excursions Non-Single DOF
-25.5°, 25.5°
Velocity
35°/s
Acceleration
250°/s²
Yaw
Excursions Single DOF
-24.9°, 24.9°
Excursions Non-Single DOF
-26.5°, 26.5°
Velocity
35°/s
Acceleration
250°/s²
Payload specification
Product weight
1600 kg | 3527.4 lb
Payload
1350 kg | 2976 lb
Gross Moving Load
1500 kg | 3307 lb
Distance of COG above topside Platform
500 mm | 19.7 in
Actuator stroke
400 mm | 15.8 in
CoG: Center of Gravity - MPC: Moving Platform Centroid
Main dimensions
Total width
2933 mm |115.47 in
Min height
1236 mm | 48.66 in
Total length
2735 mm | 107.67 in
Power requirements
Max power consumption
13 kW
System power
3-phase 400 VAC +/- 10%, 50/60 Hz
ADD-ONS & ACCESSORIES
POWER CABINET
PS-SB400-63
Power cabinets PS-SB400-63 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
*ASK FOR PRICE
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
*ASK FOR PRICE
ADD-ONS & ACCESSORIES
POWER CABINET
PS-SB400-63
Power cabinets PS-SB400-63 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
*ASK FOR PRICE
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
*ASK FOR PRICE
SOFTWARE BASICS
To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.
If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.
ForceSeatMI supports
- Windows
ForceSeatDI supports
- Windows
- Raspberry Pi
- Linux
Both SDK's support*
- Unity
- Unreal Engine
- Matlab & Simulink
- C/C++/C#
- Python
