PS-6TM-550

 41 900.00 *

Payload: 550kg
Applications: Lightweight closed cabin units
Heave: -0.13, 0.134 m, 0.4G
Pitch: -13.1°, 12.8°, 35°/s, 250°/s2
Roll: ±14.2°, 35°/s, 250°/s2
Yaw: ±14.6°, 35°/s, 250°/s2
Surge: -0.157, 0.178 m, 200mm/s, 3 m/s2
Sway: ±0.152 m, 200mm/s, 3 m/s2
Weight: 460kg

Description

PS-6TM-550
PROFESSIONAL SERIES
ASK ABOUT PRODUCT

*tax and duty not incl.

€ 41 900.00 *

PLATFORM HIGHLIGHTS

6

ARCHITECTURE

550

PAYLOAD

54

MIN HEIGHT

460

WEIGHT

3

MAX POWER CONSUMPTION

MOTION PLATFORM

PS-6TM-550

PROFESSIONAL SERIES

6

ARCHITECTURE

550

PAYLOAD

54

MIN HEIGHT

460

WEIGHT

3

MAX POWER CONSUMPTION

ASK ABOUT PRODUCTASK ABOUT PRODUCT

KEY FEATURES

Resistant to overload

Good resistance to momentary overload resulting from dynamic change in mass distribution

Super Silent

Extremely quiet and smooth operation

Movement repeatability

High ability to generate vibrations and incredible movement repeatability

Safety

Safe mechanical design resistant to permanent damage

Unleashed performance

Highest performance in compact and mobile chassis

Software support

Control all our motion platforms using one of ours SDK

VR technology

All our motion platforms work in VR environment

Easy to transport

Modular design enabling transportation and assembly on site from the main components

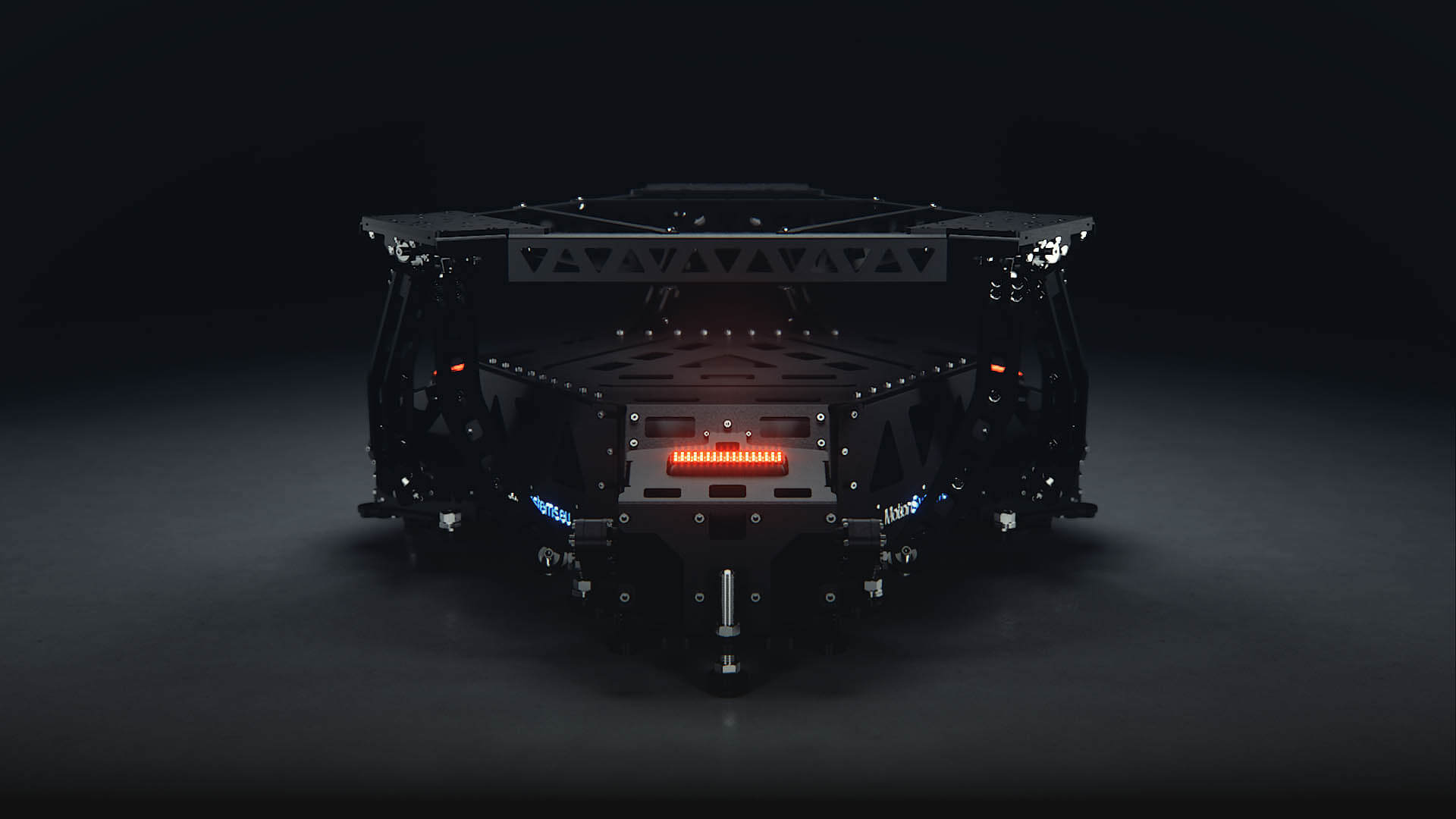

MOTION PLATFORM PS-6TM-550

NEXT LEVEL OF MOTION TECHNOLOGY

The PS-6TM-550 motion platform is the combination of high tech motion system with perfect look. The platform was considered the most stylish machine of the 6DoF family. Customers choose it not only for aesthetic reasons, but primarily for its low profile design, high ability to generate vibrations and good resistance to momentary overloads resulting from dynamic change in mass distribution which are necessary features in the construction of small and medium cockpits and cabins for simulation.

  • platforms are suitable for small up to medium flight simulators
  • vehicle training simulators for up to 4 people
  • small and medium size military training simulators for up to 4 people
  • land vehicle simulation
  • small and medium size mining equipment simulators
  • industrial testing
  • VR for entertainment up to 4 people

GENERAL SPECIFICATION

System performance

EXCURSIONS

Velocity

Acceleration

SINGLE DOF

Surge

SINGLE DOF

-0.157 m, 0.178 m
-6.18 in, 7 in

Velocity

0.8 m/s
31.5 in/s

Acceleration

3.9 m/s²
0.39 g

Sway

SINGLE DOF

-0.152 m, 0.152 m
-5.98 in, 5.98 in

Velocity

0.7 m/s
27.6 in/s

Acceleration

3.8 m/s²
0.38 g

Heave

SINGLE DOF

-0.13 m, 0.134 m
-5.1 in, 5.27 in

Velocity

0.46 m/s
18.1 in/s

Acceleration

4 m/s²
0.4 g

Roll

SINGLE DOF

-14.2°, 14.2°

Velocity

45°/s

Acceleration

380°/s²

Pitch

SINGLE DOF

-13.1°, 12.8°

Velocity

46°/s

Acceleration

380°/s²

Yaw

SINGLE DOF

-14.6°, 14.6°

Velocity

62°/s

Acceleration

320°/s²

Payload specification

Payload

550 kg | 1213 lb

Product weight

460 kg | 1014 lb

Main diemensions

Total width

1513 mm | 56.6 in

MIN height

521 mm | 20.5 in

Total height

587 mm | 23.1 in

(machine with feet)

Total length

1461 mm | 57.5 in

Power requirements

Power supply requirements

400 VAC Three Phase

Average Power (kVA)

3.3 kVA

Peak Power [kVA]

7.4 kVA

Peak Current [A]

32 A

Average Power - stress test [kW]

1.9 kW

Average Power - typical game [kW]

0.7 kW

Connection

USB | Ethernet

PRODUCT CARDPRODUCT CARDWORK ENVELOPEWORK ENVELOPE

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB400

Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

€ 4500.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT
PS-SB230-P3

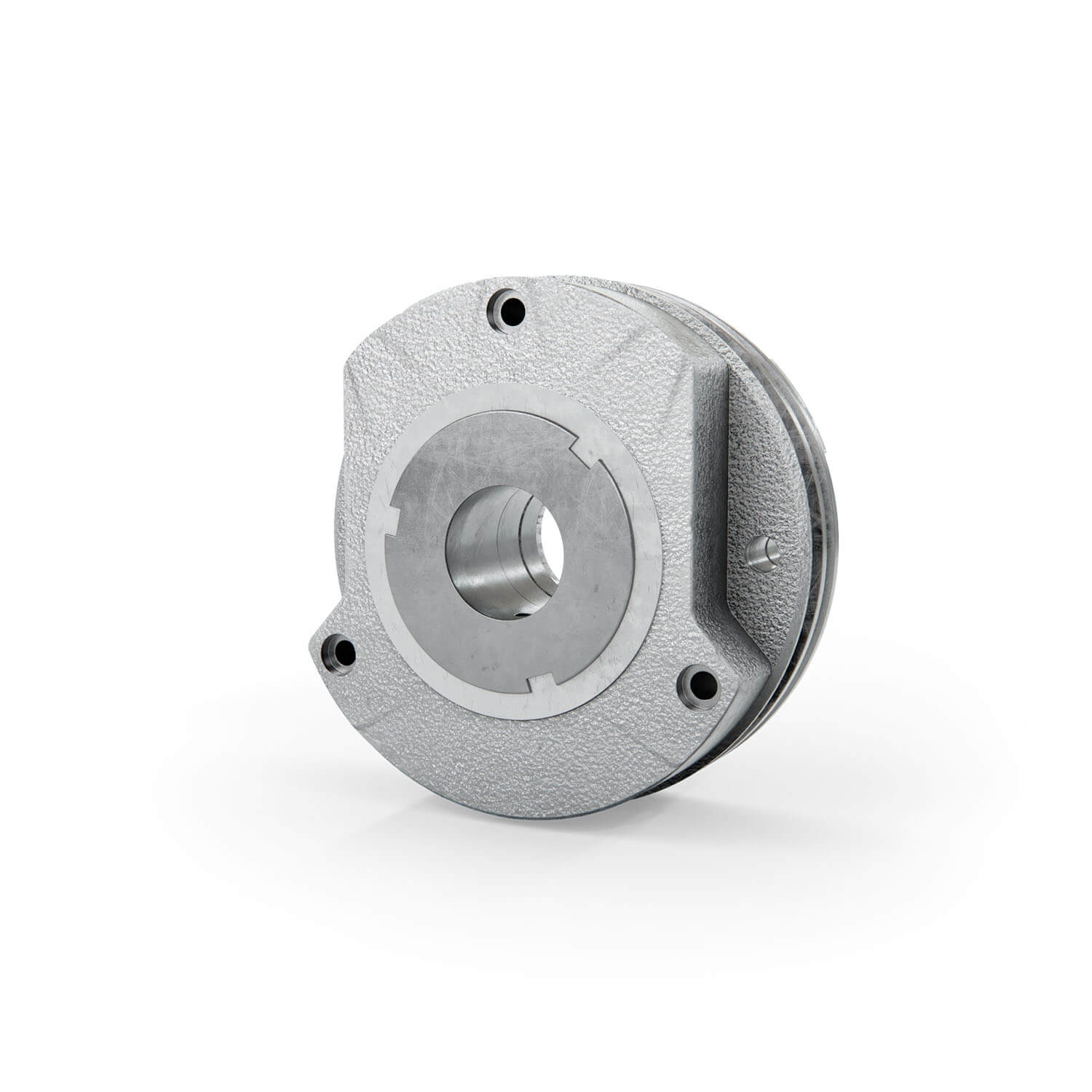

ELECTROMAGNETIC SAFETY BRAKES

One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).

€ 1200.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

WHEELS AND FEET

One set of wheels and feet dedicated for transport and platform stabilization on the floor. Motion platform anchoring is not required.

€ 900.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB400

PS-SB230-P3

Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

€ 4500.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

ELECTROMAGNETIC SAFETY BRAKES

One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).

€ 1200.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

WHEELS AND FEET

One set of wheels and feet dedicated for transport and platform stabilization on the floor. Motion platform anchoring is not required.

€ 900.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

SOFTWARE BASICS

To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.

If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.

ForceSeatMI supports

  • Windows

ForceSeatDI supports

  • Windows
  • Raspberry Pi
  • Linux

Both SDK's support*

  • Unity
  • Unreal Engine
  • Matlab & Simulink
  • C/C++/C#
  • Python

*Support for Motion Platforms can be added if UE4/Unity application is possible to modify.
