PS-3ROT-150 V2

Ask for price

PS-3ROT-150 V2 is the new version of 360 rotational motion platform with comfortable and lightweight cabin, which is easy to equipped in add-ons and accessories compatible with many applications.

Categories: , Tags: , ,
MOTION PLATFORM

PS-3ROT-150 V2

SUPERIOR FLIGHT EXPERIENCE
PS-3ROT-150 V2
PROFESSIONAL SERIES
SUPERIOR FLIGHT EXPERIENCE
ASK ABOUT PRODUCT

PLATFORM HIGHLIGHTS

3

UNLIMITED ROTATION

150

PAYLOAD

1875

WEIGHT

7

MAX POWER CONSUMPTION

KEY FEATURES

Unlimited rotation

Unlimited rotation around the longitudinal, vertical and lateral axis

Safety

Safe mechanical design resistant to electronic failures

Unleashed performance

Impressive dynamics and high performance

Add-ons & Accessories

Possibility of using 3rd party accessories

Highest quality

Built of industrial grade components

Super silent

Extremely quiet and smooth operation

Software support

Control motion systems using one of ours SDK

VR technology

Full VR technology support

LEADING EDGE OF MOTION TECHNOLOGY

Motion Platform PS-3ROT-150 V2

The PS-3ROT-150 V2 was designed to meet the most demanding professional’s needs. The aim was to create a motion platform with comfortable and lightweight cabin, which would be easy equipped in add-ons and accessories compatible with many applications. PS-3ROT-150 V2 is a strong, modular and highly upgradeable motion system, which will seduce every flight simulation enthusiasts.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

MULTIPURPOSE SOLUTION

Motion Platform PS-3ROT-150 V2

Motion Systems employing new technologies that significantly reduce complexity and improve functionality. This is the reason that the new version of PS-3ROT-150 V2 fits for many various applications:

  • rotary and fixed wings flight simulators
  • fighter plane simulator
  • 360 degree motion virtual reality simulator
  • space travel simulators
  • entertainment applications in VR centers and interactive museums
ASK ABOUT PRODUCTASK ABOUT PRODUCT

PS-3ROT-150 V2

UNLIMITED ROTATION IN 3 AXES - PITCH, ROLL, YAW

NEW FEATURES

Motion Platform PS-3ROT-150 V2
  • lower product weight
  • more compact design and smaller footprint
  • ergonomic and comfortable cabin interior
  • modular cabin with the possibility of add-ons and accessories assembly
  • ready to work with recommended VR headsets
  • adapted to work with selected flight simulations
ASK ABOUT PRODUCTASK ABOUT PRODUCT

DOWNLOAD OUR CATALOG

CATALOG 2019/2020CATALOG 2019/2020

DOWNLOAD OUR CATALOG

Find out more about company and products

CATALOG 2020/2021CATALOG 2020/2021

DOWNLOAD OUR CATALOG

CATALOG 2019/2020CATALOG 2019/2020

GENERAL SPECIFICATION

MOVEMENT PERFORMANCE ALONG THE AXIS

Longitudinal

Max angular movement speed: 75°/s
Max angular acceleration of motion: 30°/s²

Lateral

Max angular movement speed: 50°/s
Max angular acceleration of motion: 30°/s²

Vertical

Max angular movement speed: 90°/s
Max angular acceleration of motion: 30°/s²

Payload specification

Payload

150 kg | 331 lb

Product weight

1875 kg | 4134 lb

Main dimensions

Total width

3140 mm | 124 in

Total height

3280 mm | 129 in

Total length

2450 mm | 97 in

Power requirements

Max power consumption

7 kW

Power Supply System

2 x Single Phase 230V or 3-Phase 400V

PRODUCT CARDPRODUCT CARD
Motion Platform PS-3ROT-150 V2

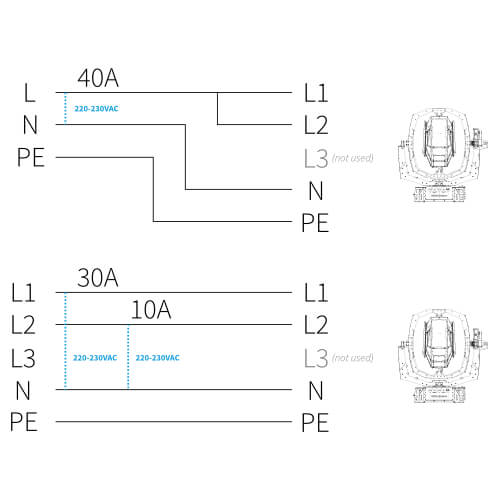

PS-3ROT-150 V2 requires two 220-240VAC, 50~60Hz power channels. First is used only for motion related components, second channel is dedicated for cabin accessories (e.g. computer, display system).

  • if the same phase is connected to both channels, 40A is required
  • if different phases are connected to each channels (e.g. L1 and L2 from 3×400 V power system), then first channel requires up to 30A, the second requires only 10A
  • this device does not require 120˚ between power sources/phases.
  • if one needs to install 115VAC accessories in cabin, then one must install AC-AC step down converter in the cabin as well
TECHNICAL SUPPORTTECHNICAL SUPPORT

SOFTWARE BASICS

To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.

If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.

ForceSeatPM supports

  • Windows

ForceSeatDI supports

  • Windows
  • Raspberry Pi
  • Linux

Both SDK's support*

  • Unity
  • Unreal Engine
  • Matlab & Simulink
  • C/C++/C#
  • Python

*Support for Motion Platforms can be added if UE4/Unity application is possible to modify.
