PS-6TM-2500

 56 000.00 *

Payload: 2500kg
Applications: Almost all types of closed cabin units.
Heave: -0.16, 0.21 m
Pitch: -19.9°, 17.2°
Roll: -20.5°, 20.5°
Yaw: -27.2°, 27.7°
Surge: -0.30 m, 0.31 m
Sway: -0.28 m, 0.28 m
Weight: 1270 kg

PS-6TM-2500
PROFESSIONAL SERIES
ASK ABOUT PRODUCT

*tax and duty not incl.

€ 56 000.00 *

PLATFORM HIGHLIGHTS

6

ARCHITECTURE

2500

PAYLOAD

110

MIN HEIGHT

1270

WEIGHT

13

MAX POWER CONSUMPTION

MOTION PLATFORM

PS-6TM-2500

PROFESSIONAL SERIES

6

ARCHITECTURE

2500

PAYLOAD

110

MIN HEIGHT

1270

WEIGHT

13

MAX POWER CONSUMPTION

KEY FEATURES

Resistant to overload

Good resistance to momentary overload resulting from dynamic change in mass distribution

Easy to transport

Modular design enabling transportation and assembly on site from the main components

Precision in movement repeatability

High ability to generate vibrations and incredible movement repeatability

Unleashed performance

Impressive dynamics and high performance

Software support

Control all our motion platforms using one of ours SDK

VR technology

All our motion platforms work in VR environment

Super Silent

Extremely quiet and smooth operation

Warranty

Global technical support and gear lifetime up to 10 years of operation

MOTION PLATFORM PS-6TM-2500

DESIGNED FOR SPECIAL TASKS

The PS-6TM- 2500 machine is the most popular products from the six degrees of freedom family used in professional applications. Customers appreciate motion system for its reliability, extremely quiet operation and impressive performance. The proven and balanced design allows motion platform to work flawlessly in the most difficult systems, dedicated to industry training and mass entertainment.
Typical applications for PS-6TM-2500 are simulators with full flight cabin mounting on upper frame such as:

  • big size cabin simulation systems with visualization – land, speed boats and flight simulators
  • vehicle training simulators for up to 6 people – car, truck, railway and bus simulators
  • medium size military training simulators for up to 6 people
  • medium size mining equipment simulators
  • certified full mission simulation system with full cockpit and visualisation system
  • full squad training simulation systems with free trainee movement
  • testing and verification application for full vehicle configuration
  • high load entertainment systems for up to 10 people
  • SFX production using serial vehicles up to 1700 kg
  • SFX production with specially prepared vehicles up to 2500 kg

GENERAL SPECIFICATION

System performance

EXCURSIONS

SINGLE DOF

NON-SINGLE DOF

Surge

SINGLE DOF

0.30 m, 0.31 m

NON-SINGLE DOF

-0.35 m, 0.36 m

Sway

SINGLE DOF

-0.28 m, 0.28 m

NON-SINGLE DOF

-0.32 m, 0.32 m

Heave

SINGLE DOF

-0.16 m, 0.21 m

NON-SINGLE DOF

-0.18 m, 0.18 m

Roll

SINGLE DOF

-20.5°, 20.5°

NON-SINGLE DOF

-20.5°, 20.5°

Pitch

SINGLE DOF

-19.9°, 17.2°

NON-SINGLE DOF

-25.5°, 23.0°

Yaw

SINGLE DOF

-27.2°, 27.7°

NON-SINGLE DOF

-32.0°, 32.0°

Payload specification

Payload

2500 kg

Product weight

1270 kg

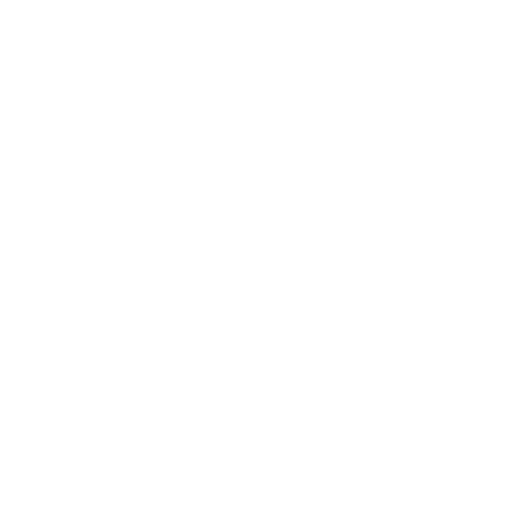

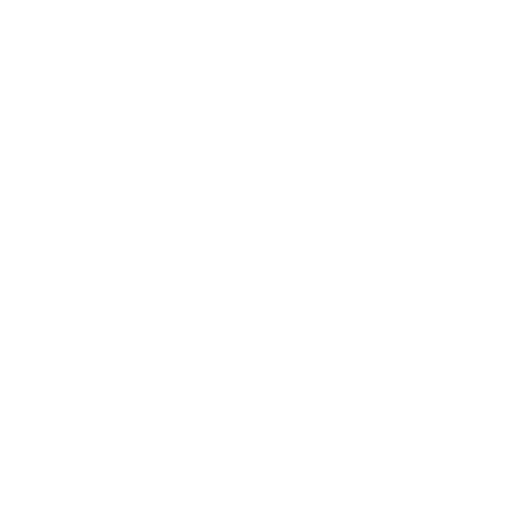

Main dimensions

Total width

2448 mm

MIN height

1100 mm

Total length

2780 mm

Power requirements

Max power consumption

13 kW 32 Amps

Power supply requirements

400 VAC Three Phases

DOWNLOAD DATASHEETDOWNLOAD DATASHEETWORK ENVELOPESWORK ENVELOPES

PRODUCT OVERVIEW

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB400

Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

€ 1800.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT
PS-SB400

ELECTROMAGNETIC SAFETY BRAKES

One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).

€ 720.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB400

PS-SB400

Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller.  Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

€ 1800.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

ELECTROMAGNETIC SAFETY BRAKES

One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).

€ 720.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

SOFTWARE - FAQ

Even most advanced hardware is nothing without good software. It might looks simple from the outside, but under the hood there is a lot going on, in both firmware and PC software. For instance, we monitor motion stream characteristic and adjust frequency inverters parameters on the fly to make sure that motion platforms is smooth when it is required or fast and brutal in other cases.

WHAT KIND OF SOFTWARE DO I GET?

Every our motion platform is delivered with the platform manager. This application is free of charge for every customers who buys our motion platforms. This rules all to both home and professional series motion platforms. The application allows to use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware and use SDK - ForceSeatMI to connect it to your custom applications.

CAN I CONTROL MOTION PLATFORM FROM MY SOFTWARE?

You can control all our motion platforms using one of ours SDKs.

IS IT VR READY?

All our motion platforms work in VR environment. Additionally if you need to compensate unwanted head movements caused by motion platform's top frame movements, we have a technology that will do it for you. The VR HeadWay is part of the platform manager and it is available free-of-charge for all customers who bought one of our motion platforms.

WILL IT WORK WITH UNREAL ENGINE 4 AND UNITY?

Both our SDK support both - UE4 and Unity. It means that as long as you can modify UE4/Unity application, you can add support for motion platform to it. Click here for details.

However if you use 3rd party closed source UE4/Unity application or game, then it will not support motion platform by default. Please check with application developers to confirm if they can use our SDKs in their product.

WILL IT WORK WITH LINUX?

The platform manager application supports only Windows PC however our low lever SDK - ForceSeatDI can be used with Linux and Raspberry Pi 3.
