Description
MIL-203-S1/S2
KEY FEATURES

Add-ons & Accessories
Possibility of using dedicated manipulators and accessories

Multifunctional
Flexible and universal unit for many various purposes

Highest quality
Built of industrial grade components

Super silent
Extremely quiet and smooth operation

Plug&Play
Ready to work out of the box

Compact design
Small footprint and two versions of the seat. The seat backrest is foldable

VR technology
Full and native hardware and software integration with the VR set

Software support
Delivered with software management package and plugins
PROFESSIONAL AND TACTICAL
VR SIMULATION SYSTEM

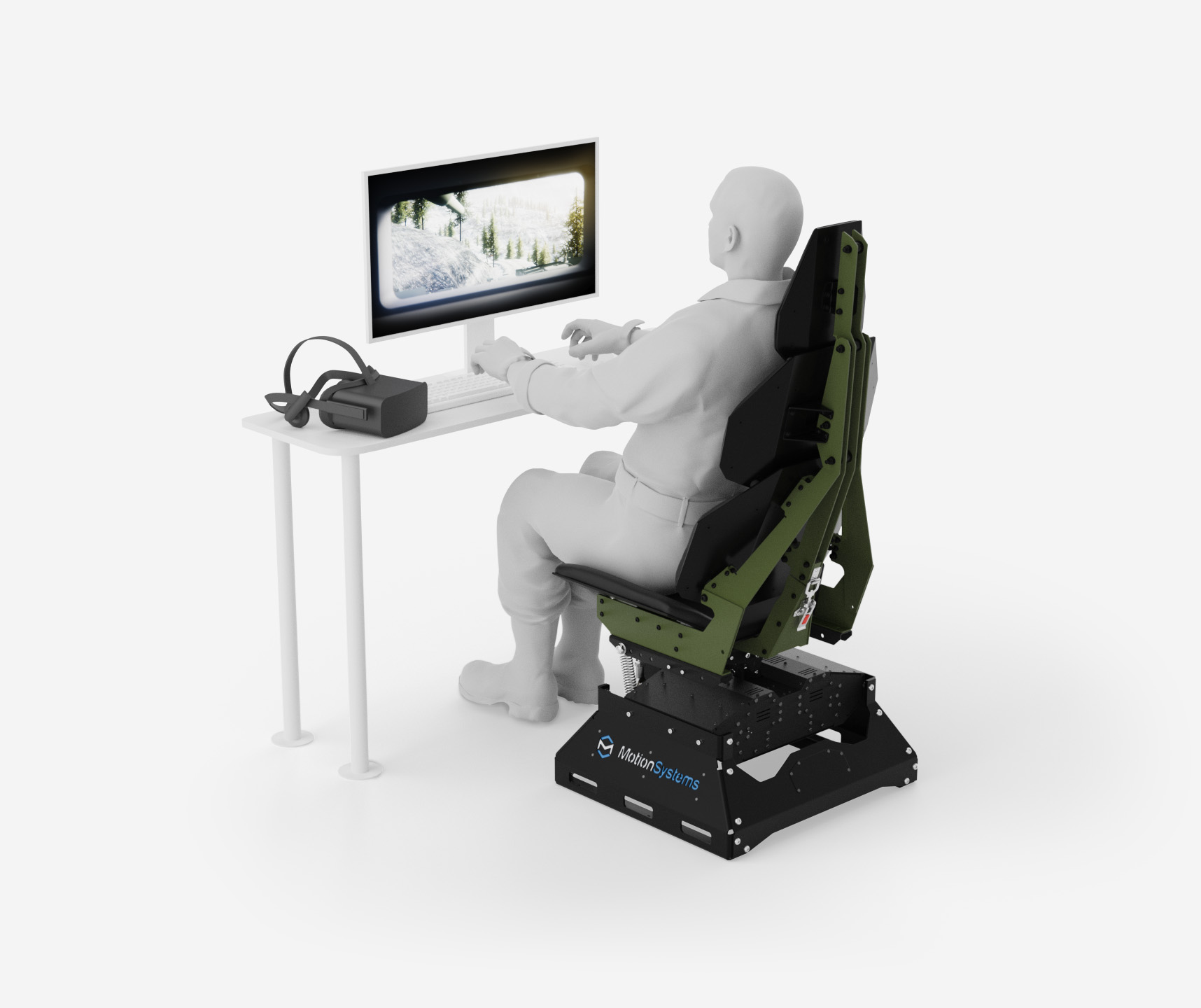

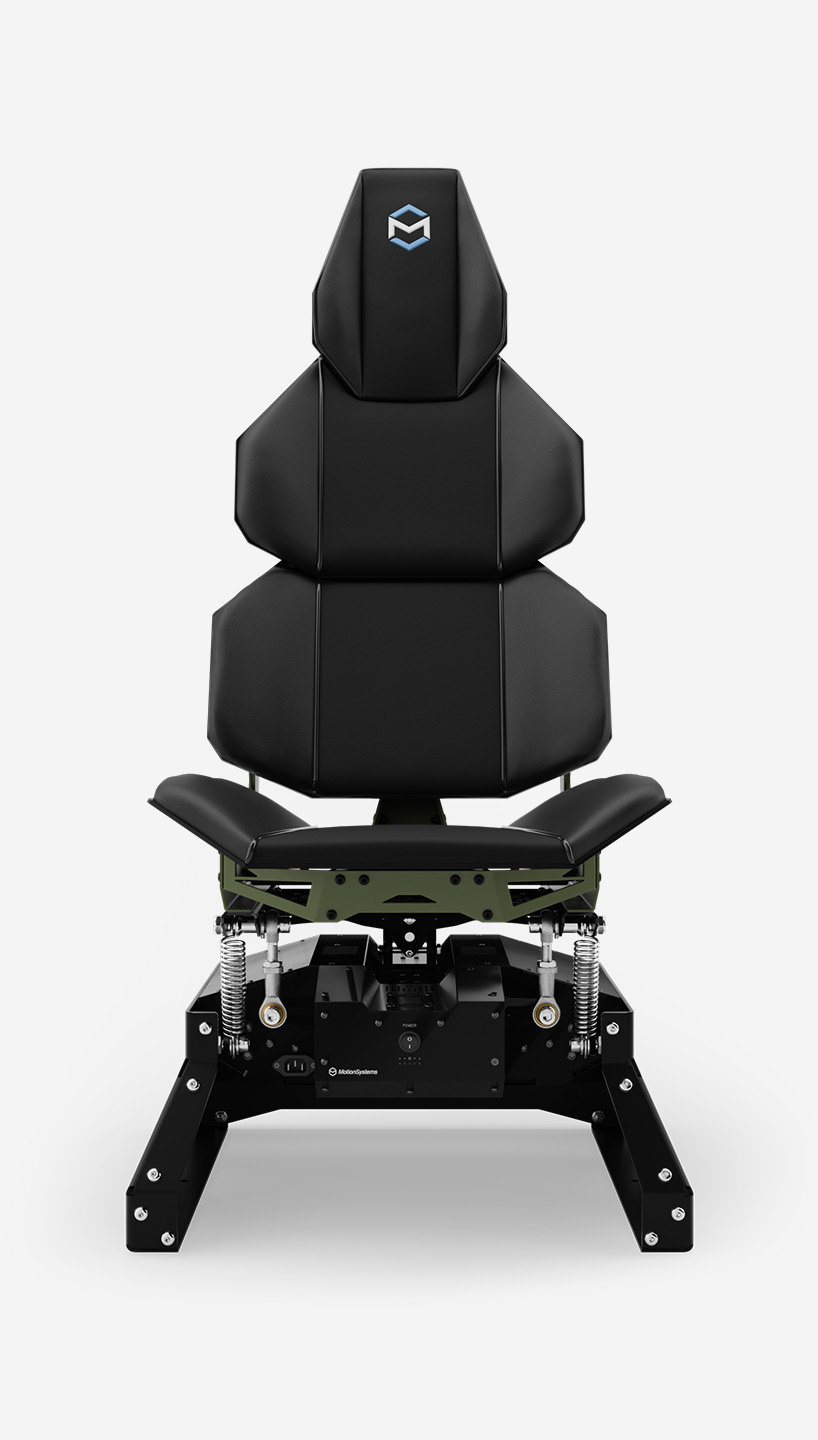

MIL-203-S1/S2 is composed of two main products - under seat mover MIL-203 dedicated seat S1 - higher version or S2 - lower version and bottom stand. The product is compatible with crucial mechanical system components which have made the product fully adapted to the demanding military client. This light, small, mobile and impressively powerful set has taken VR training to the higher level.
MIL-203-S1/S2 is composed of two products - under seat mover MIL-203 and dedicated seat S1 - higher version or S2 - lower version. The product is compatible with crucial mechanical system components which have made the product fully adapted to the demanding military client. This light, small, mobile and impressively powerful set has taken VR training to the higher level.

HIGH VERSION
MIL-203-S1

SHORT VERSION
MIL-203-S2
FLEXIBLE AND MODULAR UNIT
The seat and accessories are fully compatible with our motion platform. The variety of accessories and possibility of their reconfiguration make the product adaptable to the various military and civilian applications.
REDUCING THE NEGATIVE IMPACT OF VR SICKNESS
MIL-203-S1/S2 seat mover bridges a disconnect between the vestibular system and virtual reality visuals, thus reducing the risk of simulator and VR sickness.
POWERFUL 2DOF SEAT MOVER

The product is designed and engineered specifically just for the seat to move to give the most realistic immersion with the mind and body. Set was tested in the most demanding applications and proven to g-forces feeling.
This method of only the seat moving can be used for professional and tactical simulation systems. Implementation of MIL-203-S1/S2 in training process allows to minimize the negative impact of VR sickness in training process.


COMPATIBLE WITH OUR SOFTWARE

The platform comes with dedicated license of Platform Manager software compatible with VBS3, VBS4, Unity and Unreal Engine.
Software includes VR Headway technology which uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime providing the most authentic and immersive simulation experience.
PERSONALIZED DETAILS

Upgrade the motion chair with the name of your company or logo. All personalized elements are made by laser engraving, which guarantees durability and very inventive look.
For more details please contact to our sales team.

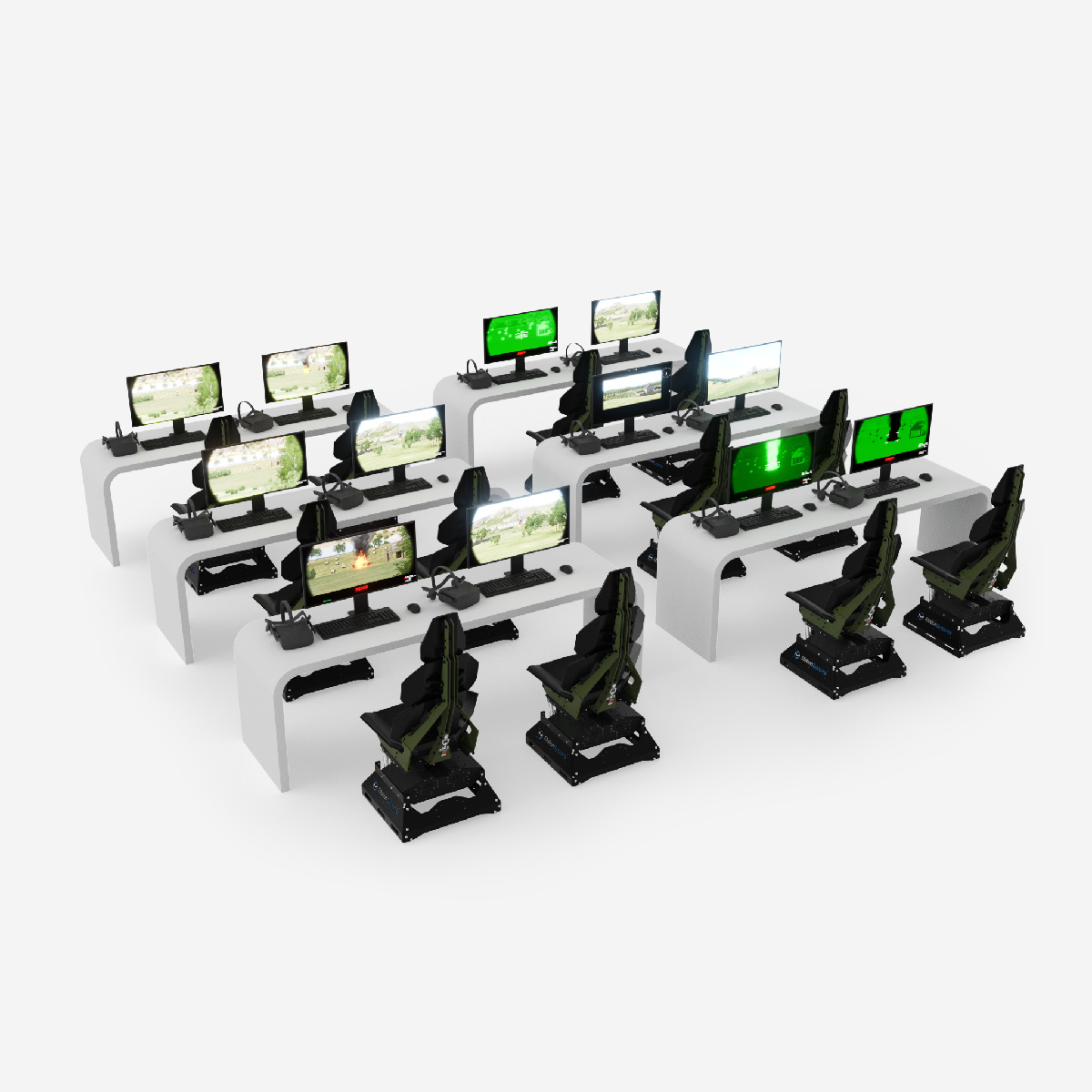

ADVANCED SIMULATION

Military applications examples:
- tactical and specialist training enhancement
- rotary and fixed wing flight simulator
- wheeled or tracked vehicle crew simulator
- portable crew training
- gunnery trainer
- vehicle special manipulators trainer
- maintenance and service operator training
- situational awareness training
- PTSD treatment
- part task trainer (PTT)
- ATC (air traffic controller) trainer
- part of RVCT (reconfigurable virtual collective trainer)
CIVILIAN APPLICATIONS EXAMPLES

VR or on screen simulation training for:
- gantry crane operators
- forklift operators
- harvester operators
- dozer operators
- articulated truck operators
- electric rope shovel operators
- wheel loader operators
- hydraulic excavator operators
- mining truck operators
- tractor operators
- dump truck operators
- telehandler operators
- mining machinery operators
- civil aviation pilots

ADD-ONS & ACCESSORIES

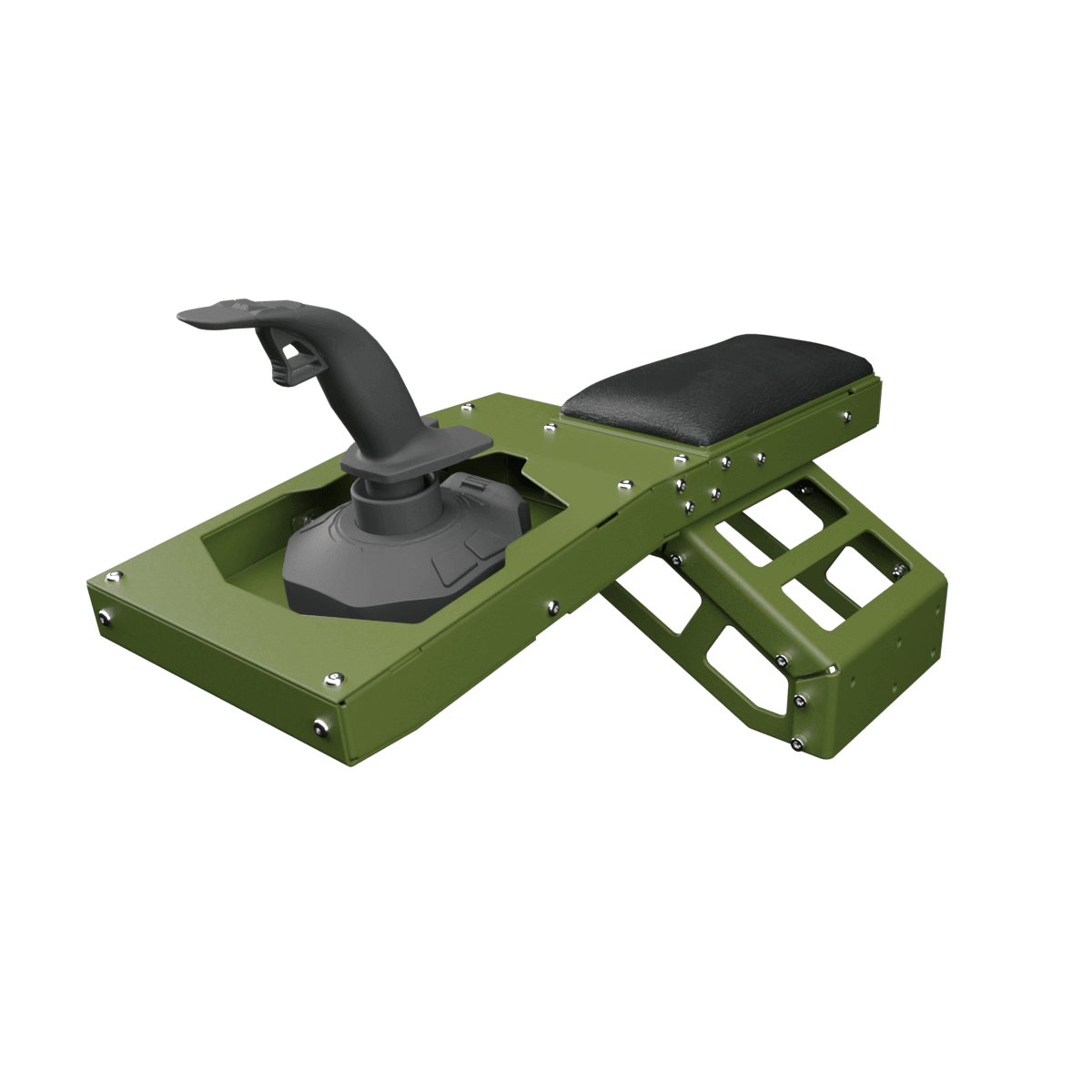

MIL-SA4-BIG

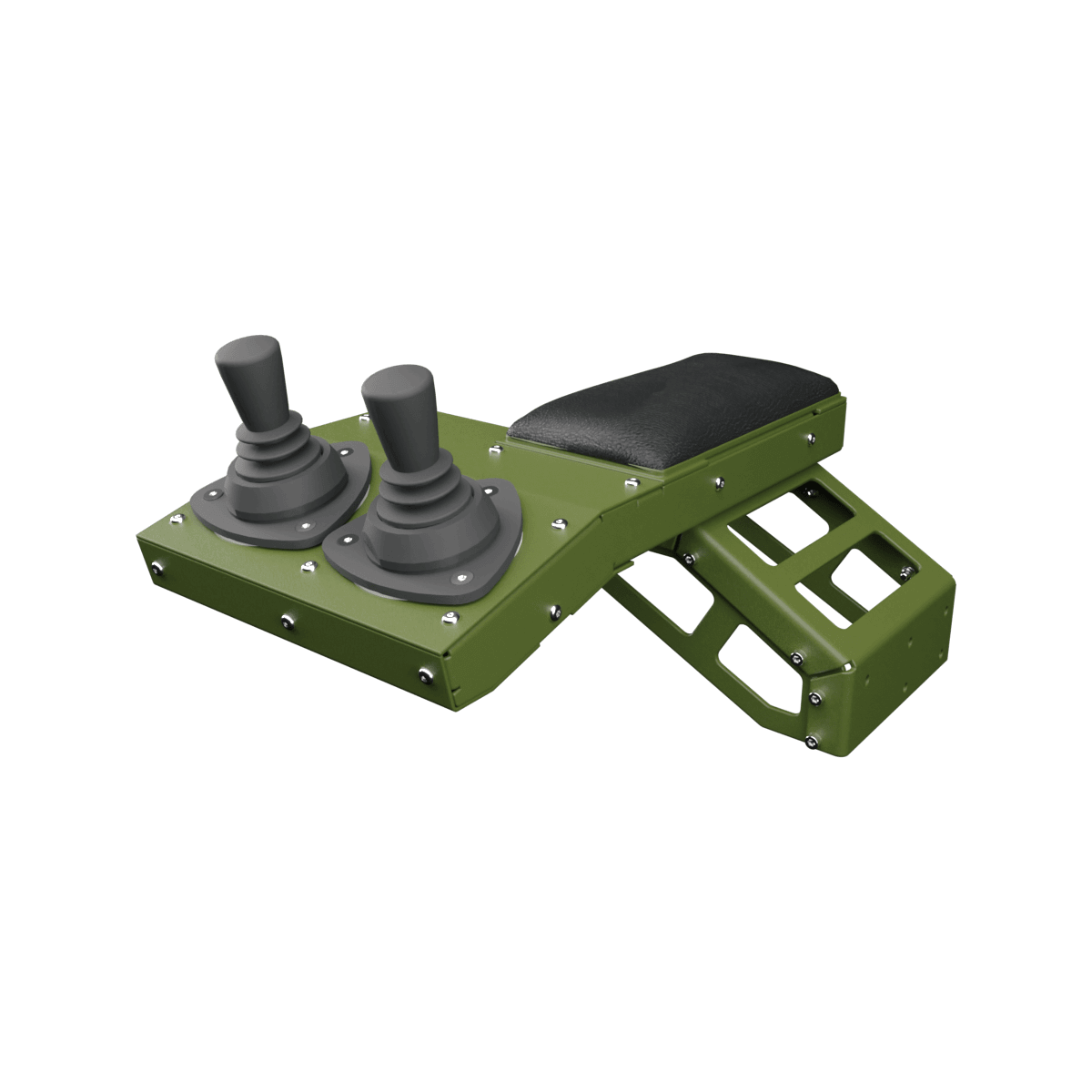

MIL-SA4-X

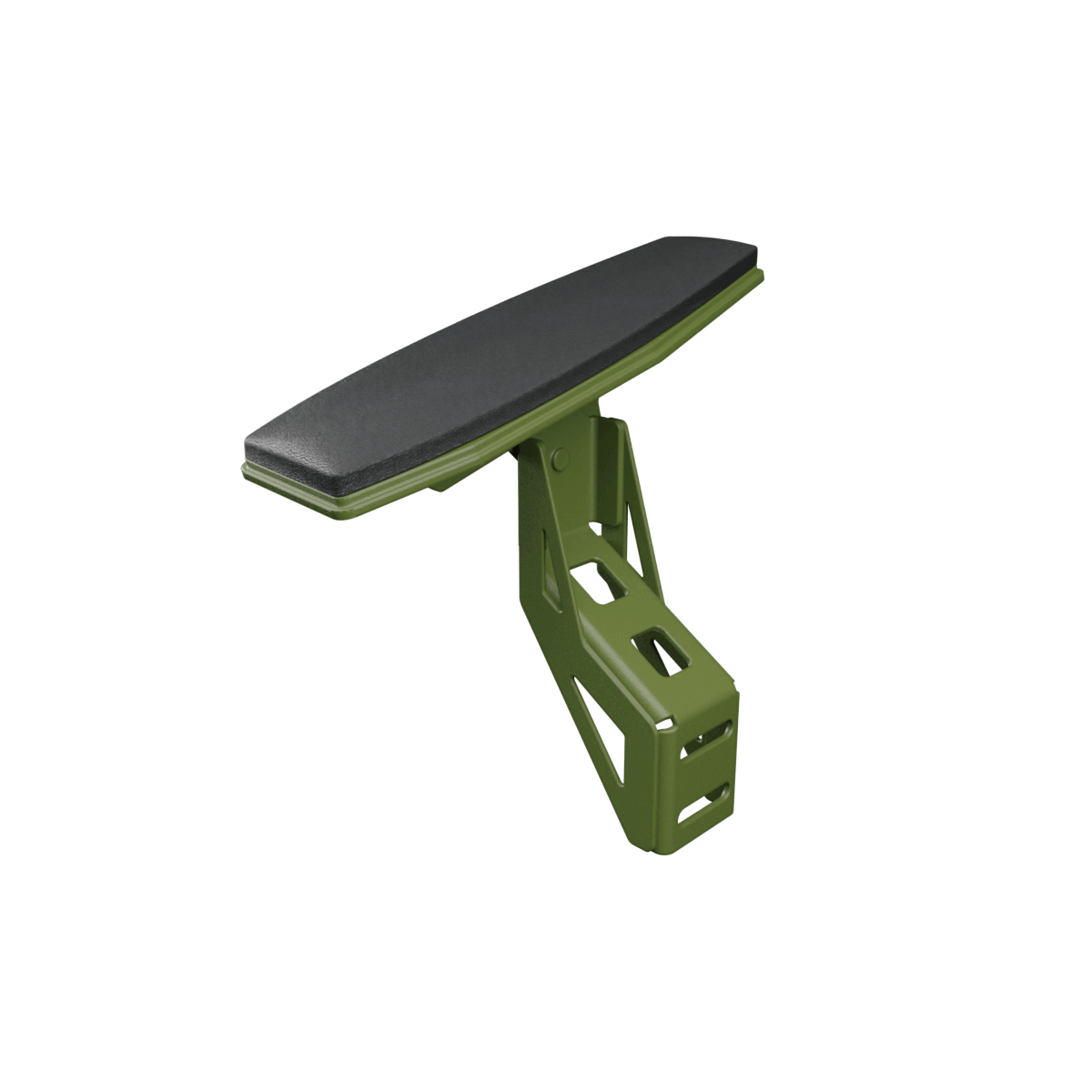

MIL-SA1-X

This product does not contain joysticks. Those are attached to the product if customer made an order for special equipment.
ADD-ONS & ACCESSORIES
MIL-SA4-BIG

MIL-SA4-X

MIL-SA1-X

GENERAL SPECIFICATION
System performance
Roll
-10°, 10°
Pitch
-10°, 10°
Product weight
MIL-203
28 kg | 62 lb
S1 Chair - higher version
23 kg | 51 lb
S2 Chair - lower version
19.5 kg | 43 lb
ST1 - Bottom stand (frame)
8 kg | 18 lb
Payload specification
MIN USER WEIGHT
30 kg | 66 lb
MAX USER WEIGHT
130 kg |287 lb
Main dimensions
Total width
570 mm | 22 in
Total height
1222 mm (S1), 972 mm (S2) | 48 in (S1), 38 in (S2)
Total length
665 mm | 25 in
Power requirements
Max power consumption
240 W
Power supply requirements
100~240V, 50-60Hz
Power supply certificates
