MIL-301-S1/S2

Ask for price

MIL-301-S1/S2 is composed of two products – under seat mover MIL-301 and dedicated seat S1 – higher version or S2 – lower version. This light, small, mobile and impressively powerful set has taken VR training to the higher level.

Category: Tags: , , , ,
MIL-301-S1/S2
MIL SERIES
ASK ABOUT PRODUCT
POWERFUL 3DOF SEAT MOVER
POWERFUL 3DOF SEAT MOVER

MIL-301-S1/S2

MIL SERIES

KEY FEATURES

Add-ons & Accessories

Possibility of using dedicated manipulators and accessories

Multifunctional

Flexible and universal unit for many various purposes

Highest quality

Built of industrial grade components

Super silent

Extremely quiet and smooth operation

Plug&Play

Ready to work out of the box

Compact design

Small footprint and two versions of the seat. The seat backrest is foldable

VR technology

Full and native hardware and software integration with the VR set

Software support

Delivered with software management package and plugins

PROFESSIONAL AND TACTICAL
VR SIMULATION SYSTEM

MIL-301-S1/S2 is composed of two main products - under seat mover MIL-301 dedicated seat S1 - higher version or S2 - lower version and bottom stand. The product is compatible with crucial mechanical system components which have made the product fully adapted to the demanding military client. This light, small, mobile and impressively powerful set has taken VR training to the higher level.

MIL-301-S1/S2 is composed of two products - under seat mover MIL-301 and dedicated seat S1 - higher version or S2 - lower version. The product is compatible with crucial mechanical system components which have made the product fully adapted to the demanding military client. This light, small, mobile and impressively powerful set has taken VR training to the higher level.

Motion System MIL-301- S1

HIGH VERSION

MIL-301-S1

Motion System MIL-301- S2

SHORT VERSION

MIL-301-S2

FLEXIBLE AND MODULAR UNIT

The seat and accessories are fully compatible with our motion platform. The variety of accessories and possibility of their reconfiguration make the product adaptable to the various military and civilian applications.

REDUCING THE NEGATIVE IMPACT OF VR SICKNESS

MIL-301-S1/S2 seat mover bridges a disconnect between the vestibular system and virtual reality visuals, thus reducing the risk of simulator and VR sickness.

READ MOREREAD MORE

POWERFUL 3DOF SEAT MOVER

Motion System MIL-301- S1

The product is designed and engineered specifically just for the seat to move to give the most realistic immersion with the mind and body. Set was tested in the most demanding applications and proven to g-forces feeling.

This method of only the seat moving can be used for professional and tactical simulation systems. Implementation of MIL-301-S1/S2 in training process allows to minimize the negative impact of VR sickness in training process.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

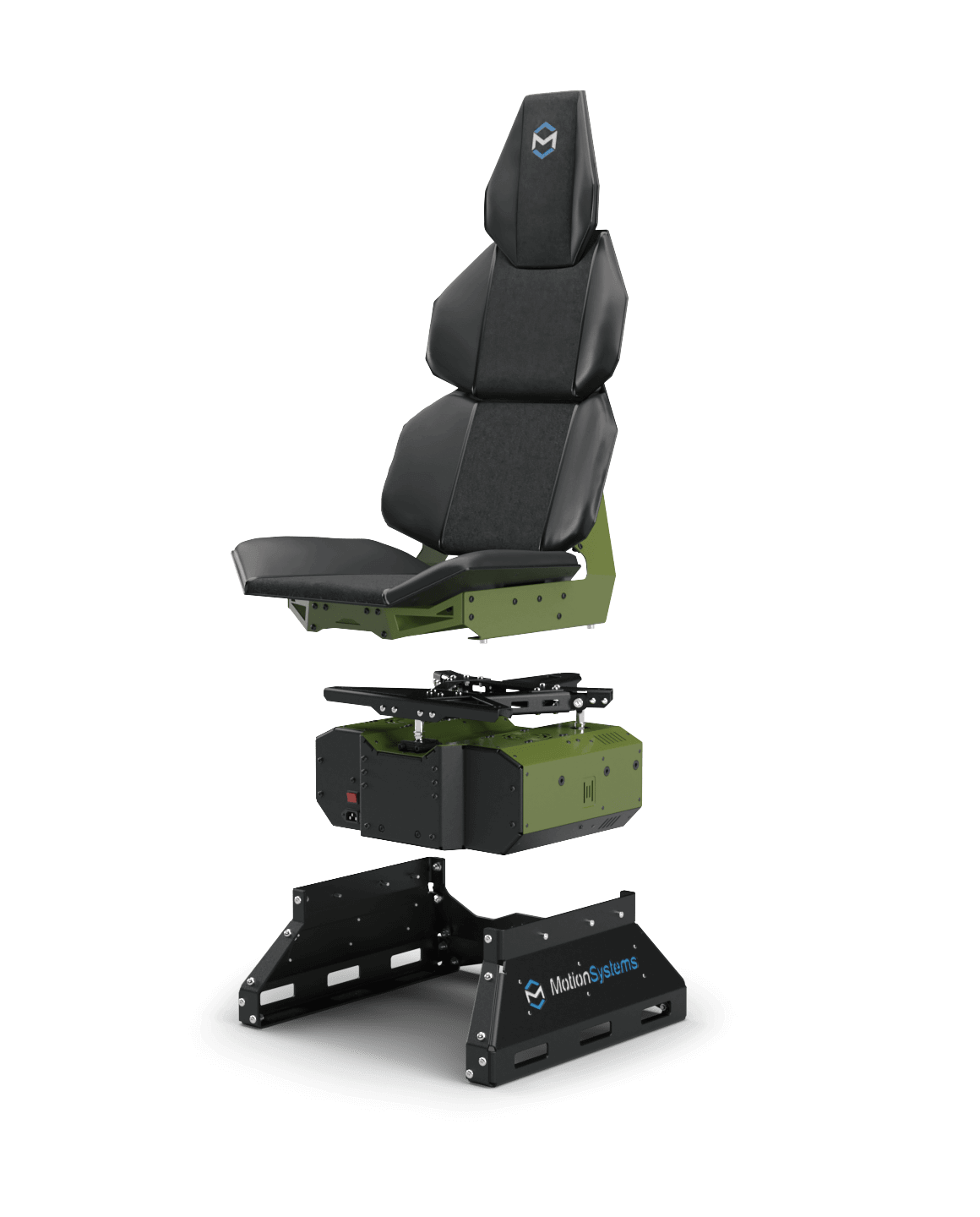

Motion System MIL-301- S1
1
SEAT
2
MIL-301 MOTION PLATFORM
3
BOTTOM STAND
Motion System MIL-301- S1 VBS

COMPATIBLE WITH OUR SOFTWARE

Motion System MIL-301- S1 VBS

The platform comes with dedicated license of Platform Manager software compatible with VBS3, VBS4, Unity and Unreal Engine.

Software includes VR Headway technology which uses advanced mathematic formulas to calculate necessary compensation and applies it to the VR headset at runtime providing the most authentic and immersive simulation experience.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

PERSONALIZED DETAILS

Motion System MIL-301- S1/S2

Upgrade the motion chair with the name of your company or logo. All personalized elements are made by laser engraving, which guarantees durability and very inventive look.

For more details please contact to our sales team.

ASK ABOUT PRODUCTASK ABOUT PRODUCT
Motion System MIL-301- S1/S2
Motion System MIL-301- S1/S2

ADVANCED SIMULATION

Motion System MIL-301- S1/S2

Military applications examples:

  • tactical and specialist training enhancement
  • rotary and fixed wing flight simulator
  • wheeled or tracked vehicle crew simulator
  • portable crew training
  • gunnery trainer
  • vehicle special manipulators trainer
  • maintenance and service operator training
  • situational awareness training
  • PTSD treatment
  • part task trainer (PTT)
  • ATC (air traffic controller) trainer
  • part of RVCT (reconfigurable virtual collective trainer)
ASK ABOUT PRODUCTASK ABOUT PRODUCT

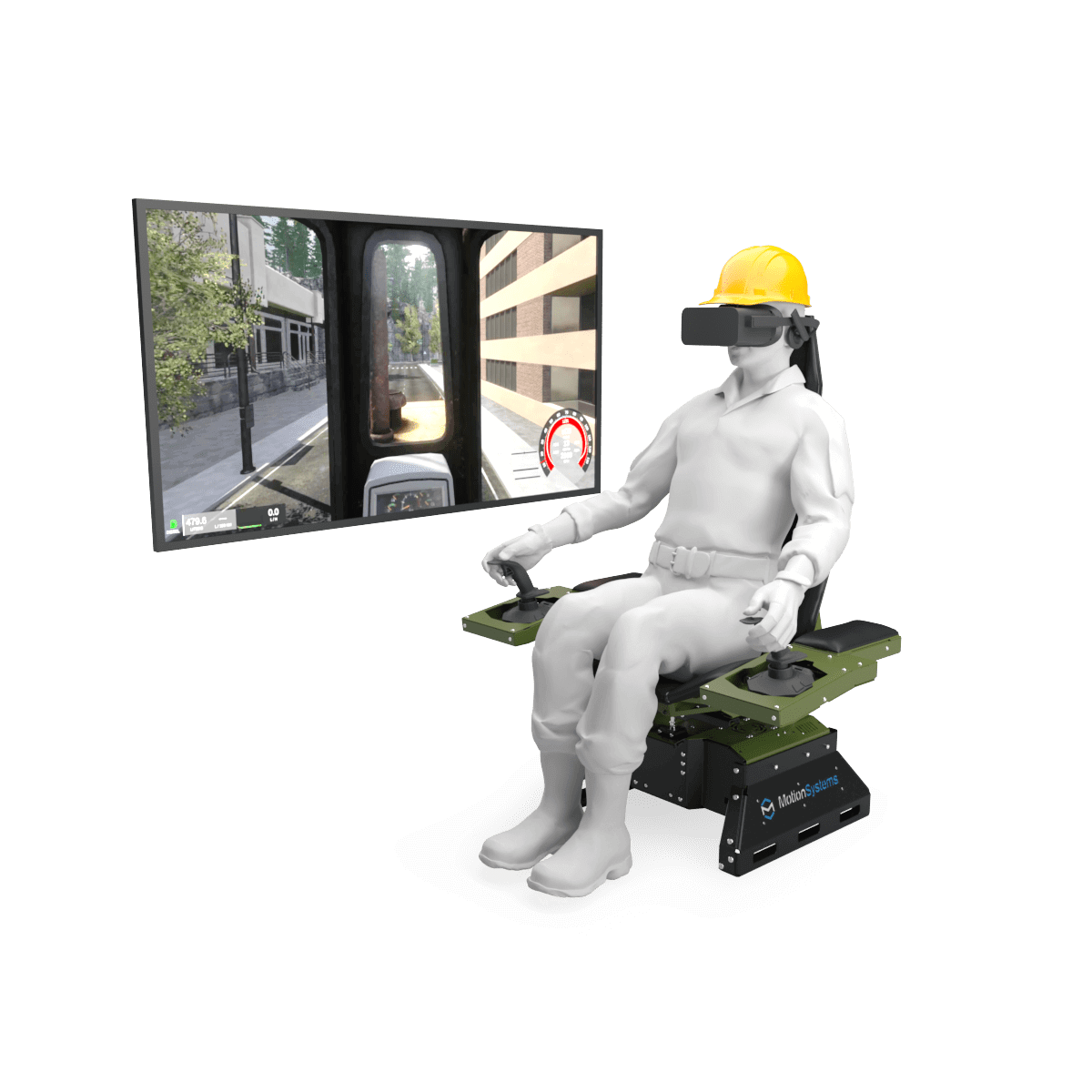

CIVILIAN APPLICATIONS EXAMPLES

Motion System MIL-301- S1

VR or on screen simulation training for:

  • gantry crane operators
  • forklift operators
  • harvester operators
  • dozer operators
  • articulated truck operators
  • electric rope shovel operators
  • wheel loader operators
  • hydraulic excavator operators
  • mining truck operators
  • tractor operators
  • dump truck operators
  • telehandler operators
  • mining machinery operators
  • civil aviation pilots
ASK ABOUT PRODUCTASK ABOUT PRODUCT
Motion System MIL-301- S1

ADD-ONS & ACCESSORIES

MIL-SA4-BIG

MIL-SA4-X

MIL-SA1-X

This product does not contain joysticks. Those are attached to the product if customer made an order for special equipment.

ADD-ONS & ACCESSORIES

MIL-SA4-BIG

MIL-SA4-X

MIL-SA1-X

GENERAL SPECIFICATION

System performance

Heave

30 mm | 1.2 in

Roll

-7°, 7°

Pitch

-6°, 6°

Product weight

MIL-301

29,2 kg | 64 lb

S1 Chair - higher version

22 kg | 49 lb

S2 Chair - lower version

20 kg | 44 lb

ST1 - Bottom stand (frame)

13,5 kg | 30 lb

Payload specification

MIN USER WEIGHT

30 kg | 66 lb

MAX USER WEIGHT

130 kg |287 lb

Main dimensions

Total width

570 mm | 22 in

Total height

1221 mm (S1), 972 mm (S2) | 48 in (S1), 38 in (S2)

Total length

667 mm | 26 in

Power requirements

Max power consumption

360 W

Power supply requirements

100~240V, 50-60Hz

Power supply certificates

Power Supply Certifcates
