Stream Deck Integration
Use Elgato Stream Deck to control platform manager with dedicated buttons for park, pause, and profiles.
1 Introduction

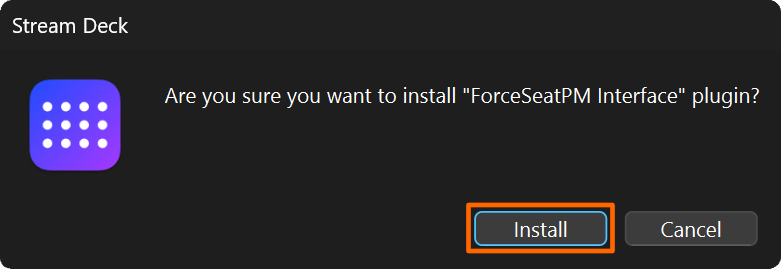

If a Stream Deck device is found in the system, ForceSeatPM will automatically prompt an installation in Action Center. It is a dedicated plugin which offers multiple predefined triggers and toggle actions like park or profile activation.
1. Install the plugin from Action Center.
2. Go to Stream Deck application. Install Motion Systems plugin.

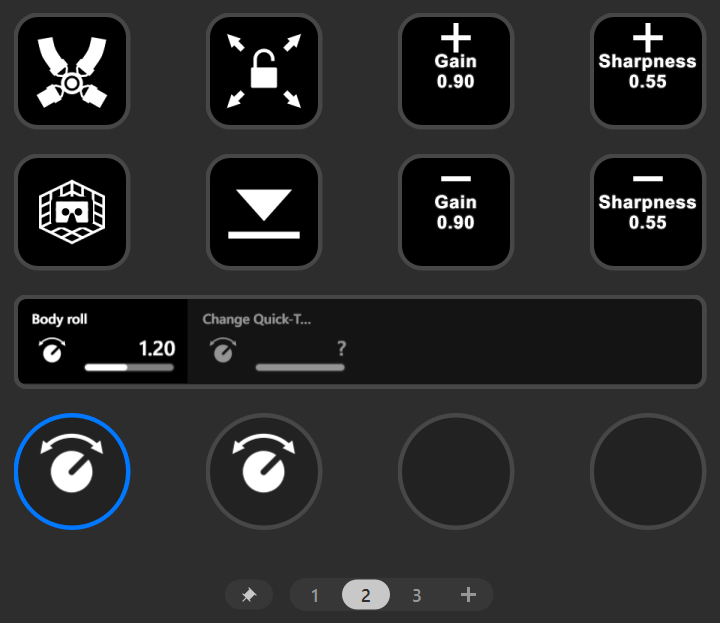

3. Configure a Stream Deck profile to your preferences using all of the supported actions from the side bar.
2 Configuration

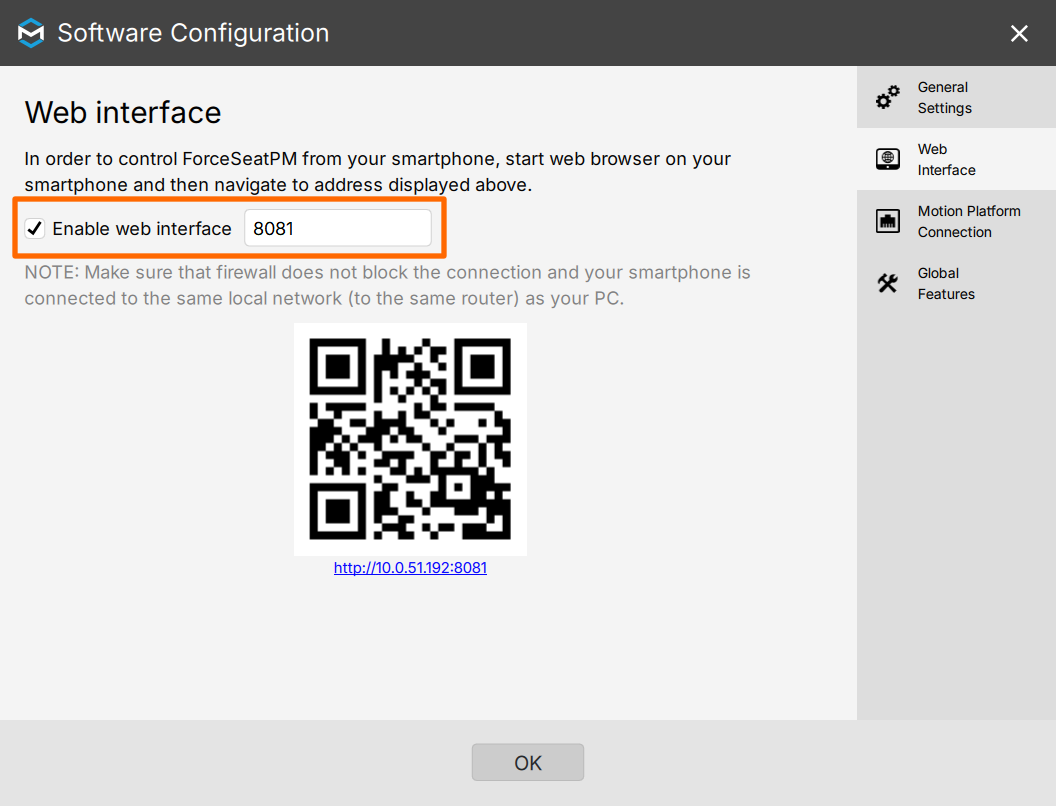

Stream Deck plugin requires Web Interface to be enabled in ForceSeatPM. You can find necessary settings in Software Configuration.
3 Actions

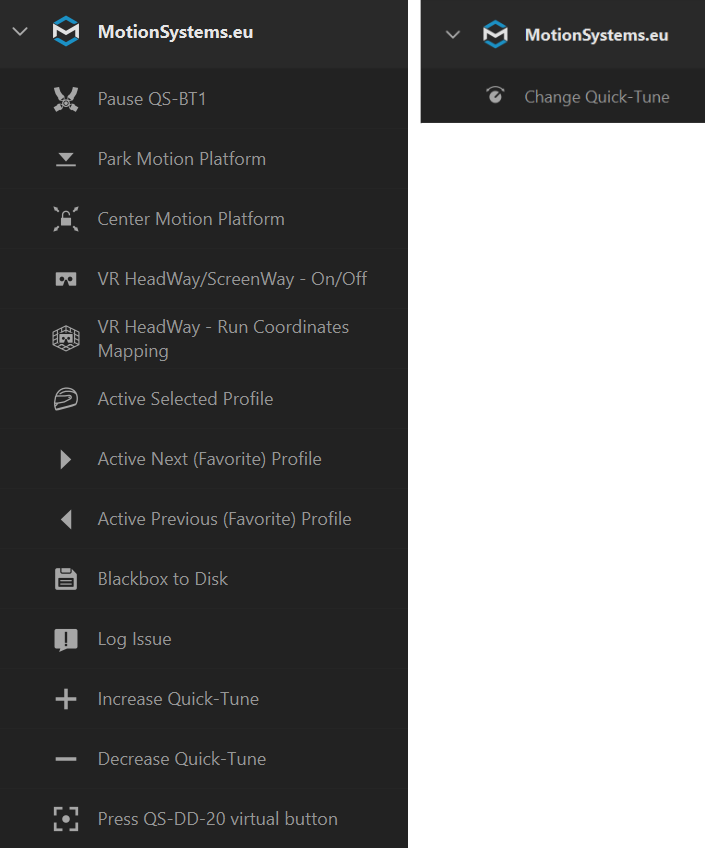

All supported actions are listed under MotionSystems.eu category. Switch between keys and dials to see all the available actions.
4 Quick-Tune URL
Increase Quick-Tune and Decrease Quick-Tune actions can be used to increase or decrease any Quick-Tune. In order to use it, you need to specify Quick-Tune category (e.g. SFX), Quick-Tune name (e.g. Longitudinal G-Force Sustained) and value subindex (e.g. Sharpness is usually 1). There is no binding to a specific profile, so as long as an activate profile contains specified Quick-Tune (search is performed by the name), then its value will be increased/decreased.
You do not have to write a Quick-Tune URL manually, ForceSeatPM can generate it for you.
1. Click on the profile to open details and navigate to Quick-Tune of your choice.
2. Click on the copy symbol (next to Quick Tune or subindex name) to copy the URL to clipboard.
3. The clipboard will contain a following URL:
M1/Lateral%20G-Force%20%28Sustained%29/1

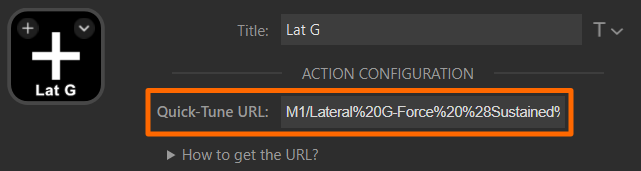

and to use it, just paste it into Stream Deck property inspector
4.1 Dials configuration

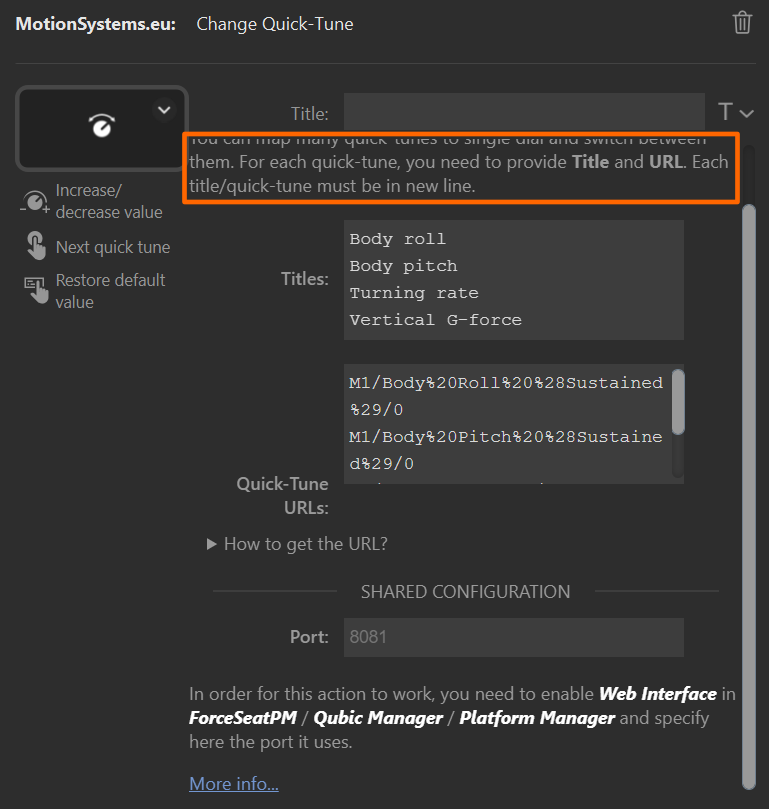

A single dial can control multiple Quick-Tune parameters. Follow the instructions provided in the Stream Deck application.
