OBD-II Simulator

Configure the built-in OBD-II simulator streaming virtual vehicle diagnostics to smartphones or tablets.

1 Introduction

The OBD-II protocol implemented in the simulator is ISO 14230-4 KWP (fast init) and it should be automatically detected by your OBD-II application. The module uses TCP/IP network (e.g. WiFi) and it is recommended that your OBD-II device (smartphone, tablet, another PC) is in the same network as the PC that runs the game.

In order to access it, go to Tools and diagnostic → OBD-II Simulator Configuration.

2 Configuration

By default OBD-II simulator is not enabled. In order to use it, correct IP address has to be selected and check box Enabled has to be selected.

You have to use IP address that is accessible from your smartphone.
127.0.0.1 can be used if you run the OBD-II application on the same PC as your game.
0.0.0.0 can be used if you want to enable listening on all network interfaces that are available on your PC (not recommended).

By default 35000 port is used and it is recommended to leave it unchanged.

Warning

Do not use a network interface that is directly connected to the Internet without a router or firewall in between.

3 Parameter IDs

OBD-II uses special codes (PID) to request data from a vehicle. There is a set of standard OBD-II PIDs and each car manufacturer can introduce vendor specific PIDs.

The OBD-II simulator supports following standard PIDs:

Supported PIDs 0x1 - 0x20 (0x00)
Monitor Status (0x01)
Freeze DTC (0x02)
Calculated Load (0x04)
ECT (0x05)
MAF (0x10)
MAP (0x0B)
RPM (0x0C)
Vehicle Speed (0x0D)
IAT (0x0F)
TPS (0x11)
OBD (0x1C)
Supported PIDs 0x21 - 0x40 (0x20)
Fuel Level (0x2F)
BAR (0x33)
Supported PIDs 0x41 - 0x60 (0x40)
Control Module Voltage (0x42)
Oil Temperature (0x5C)
Supported PIDs 0x61 - 0x80 (0x60)
Supported PIDs 0x81 - 0xA0 (0x80)
Supported PIDs 0xA1 - 0xC0 (0xA0)
Supported PIDs 0xC1 - 0xE0 (0xC0)

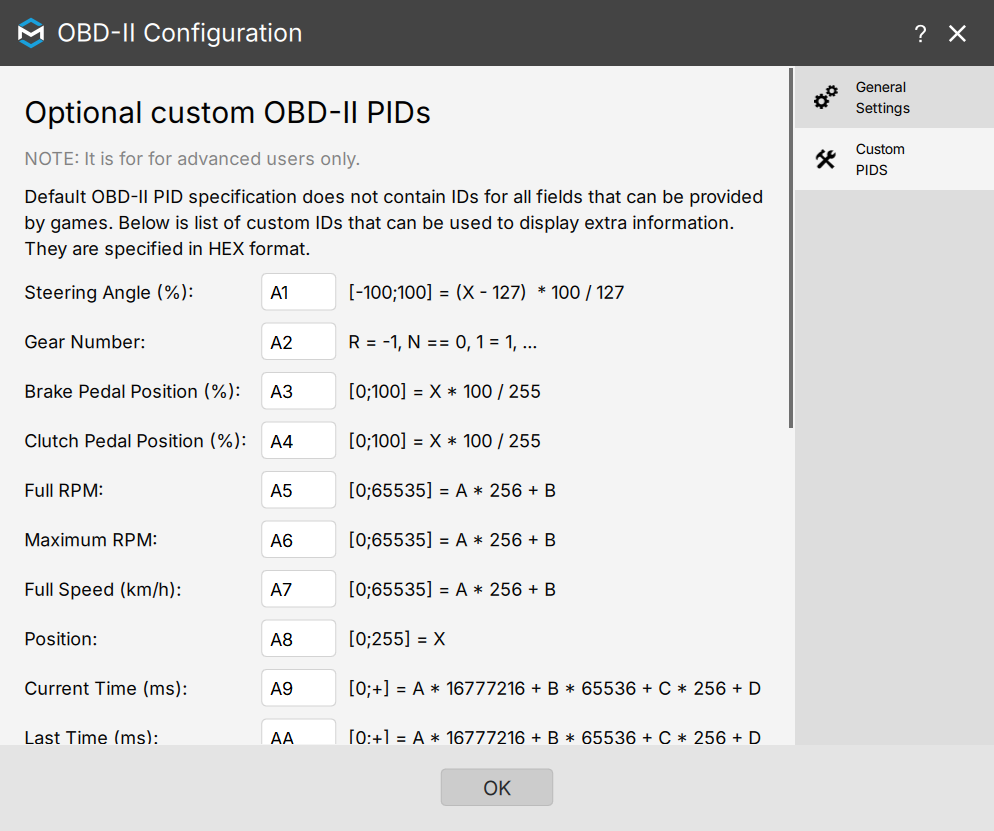

Standard PIDs are not enough in all cases. They do not provide e.g. gear number, race position, or last and best lap time. Additionally they limit speed to 255 km/h and RPM to 16383 which for example excludes F1 formula car. This is the reason why OBD-II simulator supports a lot of custom PIDs that can be used to get extra information.

4 Smartphone applications

The OBD-II simulator should work with any OBD-II applications that supports ELM327, ISO 14230-4 KWP protocol and TPC/IP network (e.g. WiFi) as connection type.

The simulator has been tested with following applications:

Torque Pro (Android)
DashCommander (Android)

In all above applications, you have to select WiFi as connection type, enter your PC IP address and port (by default 35000).

Information

Make sure that your firewall does not block incoming connection from your smartphone to platform manager.
