PS-2ROT3-150
2
UNLIMITED ROTATION
3
MOTION SEAT
150
MAX USER WEIGHT
1950
WEIGHT
PLATFORM HIGHLIGHTS
2
UNLIMITED ROTATION
3
MOTION SEAT
150
MAX USER WEIGHT
1950
WEIGHT
KEY FEATURES
Unlimited rotation
Unlimited rotation around the vertical and horizontal axis
Motion seat
3DOF motion system inside the cabine
Unleashed performance
Impressive dynamics and high performance
Safety
Safe mechanical design resistant to electronic failures
Compact design
Small footprint and lightweight body
Highest quality
Built of industrial grade components
VR technology
Full and native hardware and software integration with the VR set
Software support
Delivered with software management package and plugins
ENTERTAIN THE KNOWLEDGE

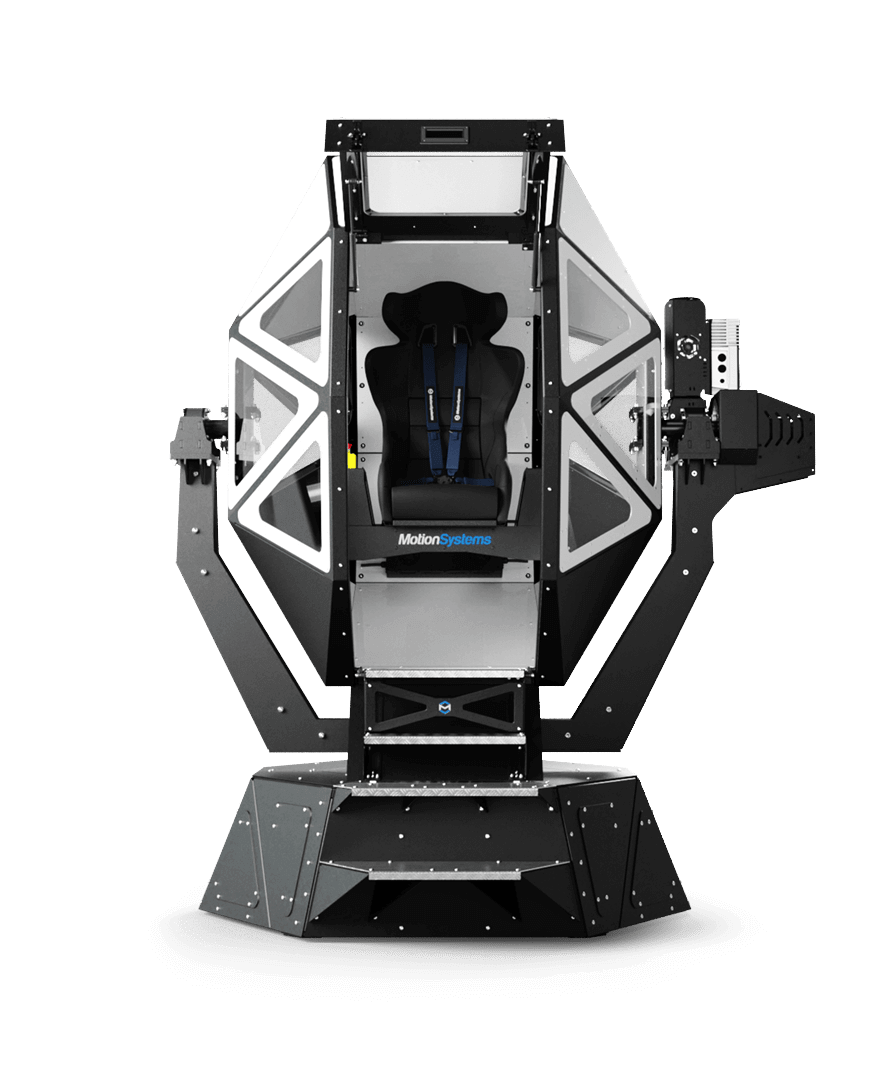

PS-2ROT3-150 is an original device dedicated for educational and entertainment purposes. Unlimited motion in two axes and additional 3DOF seat inside a cockpit allows to contribute the most advanced simulations such as space rocket launch or space travel. Thanks to two different motion platforms (2 DOF + 3 DOF ) it is a possible to carry out simulations in the highest quality such as rocket engines vibrations, plane turbulence or movements made with meteorite rain. Safe and spectacular solution does not only deliver a truly immersive experiences but it is an amazing educational tool as well. Both adults and youngsters can use it if they are at least 120 cm height.
FEEL THE DIFFERENCE
Motion platform PS-2ROT3-150 is capable of simulation no gravity illusions while space travels. Motion system was designed with the thought of customers who demand the most realistic and precise simulation.
FLEXIBLE AND FUN
Compact and lightweight PS-2ROT3-150 allows to place it in small theme parks or interactive museums. Dedicated 3DOF motion seat inside the cabin, additional 6 point seat belts, practical stairs and handy grips guarantee the highest safety and comfortable usage.
SIMULATION WITHOUT LIMITS
- 3DOF motion seat inside the cabin – suitable for 1 person
- 6-point seatbelts
- mounting brackets for dedicated manipulators and accessories
REAL MOTION EXPERIENCE
COMMERCIAL ENTERTAINMENT
- spaceship simulator
- baloon flight
- launch and flight in space rocket
- roller coaster ride
- hyperloop ride
PROFESSIONAL TRAINING
- training for operators of construction vehicles driver
- training for crane operators
- training for tank crew ( driver or gunner)
PRODUCT OVERLOOK
Height
2674 mm | 106 in
Length
2025 mm | 79.7 in
Width
2283 mm | 89.6 in
Max user weight
150 kg | 331 lb
Weight
1950 kg | 4300 lb
POWER SUPPLY SYSTEM
2 x Single Phase 230V
MOVEMENT PERFORMANCE ALONG THE AXIS
LONGITUDINAL
Max angular movement speed: 90°/s
Max angular acceleration of motion: 30°/s²
LATERAL
Max angular movement speed: 90°/s
Max angular acceleration of motion: 30°/s²
POWER SUPPLY SYSTEM
PS-2ROT-150 requires two 220-240VAC, 50~60Hz power channels. First is used only for motion related components, second channel is dedicated for cabin accessories (e.g. computer, display system).
- if the same phase is connected to both channels, 40A is required
- if different phases are connected to each channels (e.g. L1 and L2 from 3×400 V power system), then first channel requires up to 30A, the second requires only 10A
- this device does not require 120˚ between power sources/phases.
- if one needs to install 115VAC accessories in cabin, then one must install AC-AC step down converter in the cabin as well
PRODUCT OVERLOOK
Height
2674 mm | 106 in
Length
2025 mm | 79.7 in
Width
2283 mm | 89.6 in
Payload
150 kg | 331 lb
Weight
1950 kg | 4300 lb
