Fastest Angular, Highly Repeatable Motion in the PS Linear Series
The list price is the full price of the standard unit shown here - net and ex-works. VAT is normally zero on export orders; options, delivery and any duties are confirmed at order.
Three engineering decisions that define this product.

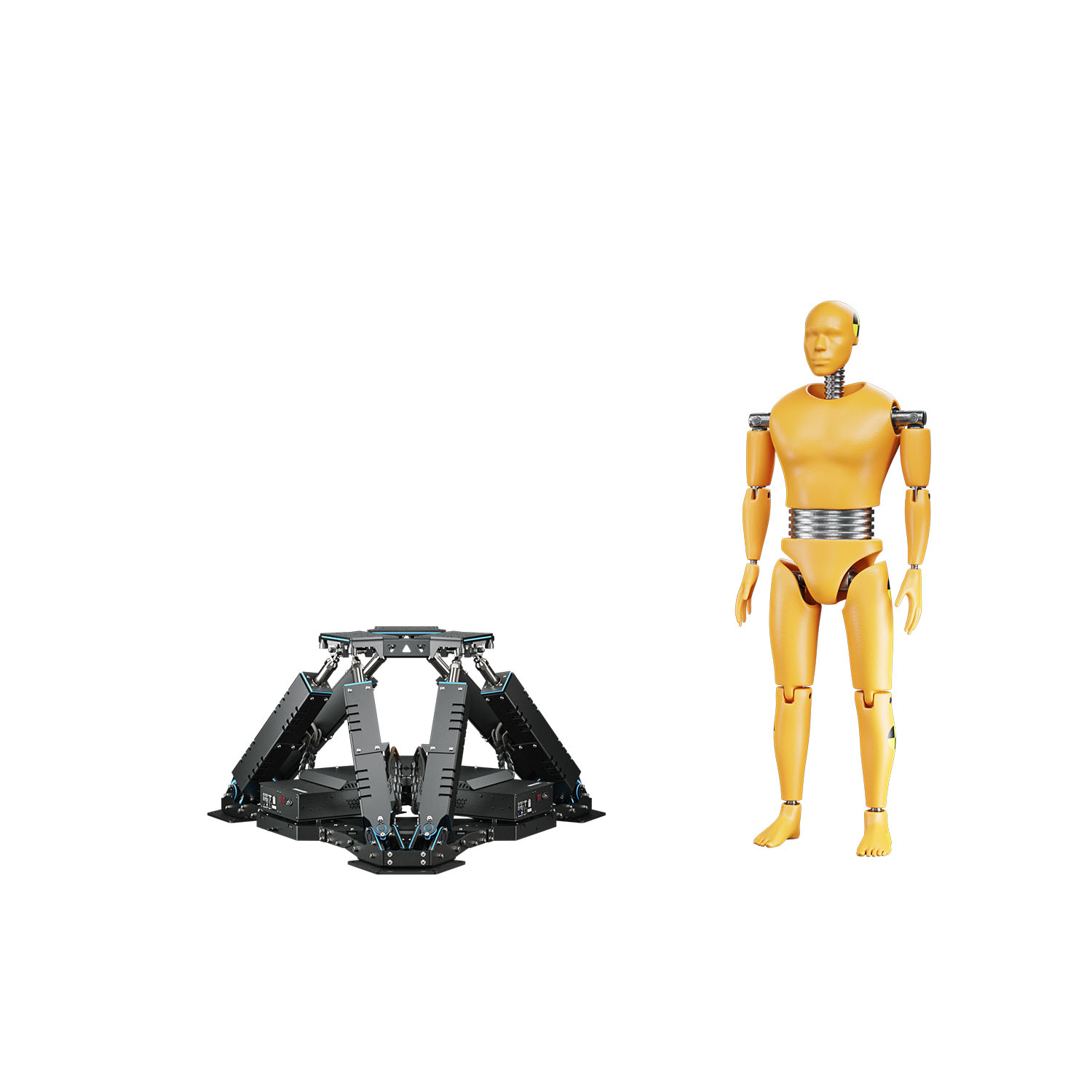

A 6DOF Stewart hexapod sized for cameras, antennas and optical benches, on a light square frame rather than a human cabin.
An R&D or metrology team runs dynamic profiles on a frame tuned for instruments, so the moving mass stays low.
A cabin-sized platform carries excess moving mass that drags out each test cycle and thins lab throughput.
The highest angular speed in the PS Linear range, on the QS-L1 actuators shared with the 6TL-250.
Profiles run at production speed while holding accuracy, and every run repeats the same way, so a long campaign yields comparable data.
Without that repeatability, a rig trades cycle count for accuracy - and that trade-off resurfaces at acceptance testing and every requalification.
The platform draws 230V single-phase, with no three-phase service needed to commission the rig in a lab.
It installs on existing single-phase supply with no facility power assessment or panel upgrade.
Worth knowing: a three-phase rig waits on a panel upgrade and inspection, idle while facilities schedules the work.
| Axis | Single excursion | Max excursion | Velocity | Acceleration | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Heave (Vertical) | -61.6/+77.1mm | -61.6/+77.1mm | 440mm/s | 0.38G | |||||||||||||||||||||||||||||||||||
| Surge (Longitudinal) | -80.2/+64.9mm | -89/+90mm | 500mm/s | 0.38G | |||||||||||||||||||||||||||||||||||
| Sway (Lateral) | -68/+68mm | -77/+77mm | 530mm/s | 0.38G | |||||||||||||||||||||||||||||||||||
| Pitch | -19.9/+20.8° | -24.7/+32.7° | 120°/s | 900°/s2 | |||||||||||||||||||||||||||||||||||
| Roll | -20.8/+20.8° | -22.3/+22.3° | 130°/s | 1200°/s2 | |||||||||||||||||||||||||||||||||||
| Yaw | -21.4/+21.4° | -22.1/+22.1° | 140°/s | - | |||||||||||||||||||||||||||||||||||
| Payload specifications | |||||||||||||||||||||||||||||||||||||||
| Gross Moving Load | 150kg | ||||||||||||||||||||||||||||||||||||||
| Payload | 150kg | ||||||||||||||||||||||||||||||||||||||
| CoG height above MPC | <500mm | ||||||||||||||||||||||||||||||||||||||
| Moments of Inertia (Ixx, Iyy, Izz) | 60kg·m2 | ||||||||||||||||||||||||||||||||||||||
| Main dimensions | |||||||||||||||||||||||||||||||||||||||
| Total Width | 1258mm | ||||||||||||||||||||||||||||||||||||||
| Total Length | 1258mm | ||||||||||||||||||||||||||||||||||||||
| Min Height | 587mm | ||||||||||||||||||||||||||||||||||||||
| Max Height | 726mm | ||||||||||||||||||||||||||||||||||||||
| Product Weight | 232kg | ||||||||||||||||||||||||||||||||||||||
| Power & installation | |||||||||||||||||||||||||||||||||||||||
| Supply | Single-phase from an ordinary earthed socket - US (120V) or EU (230V) mains. | ||||||||||||||||||||||||||||||||||||||
| Network type | Standard one-phase, ground and neutral, RCD-protected. | ||||||||||||||||||||||||||||||||||||||
| Circuit protection | 16A type B circuit breaker (EU 230V). | ||||||||||||||||||||||||||||||||||||||
| Grounding | Standard protective earth, as on any earthed socket. | ||||||||||||||||||||||||||||||||||||||
| Installation | Runs from a compact driver box - no power cabinet, no three-phase feed. | ||||||||||||||||||||||||||||||||||||||
| With PS-SB230 (optional) | The optional PS-SB230 cabinet runs the platform on 230V single-phase mains; for a 120V supply, contact Technical Support. | ||||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||||
Measured at center of gravity with 150 kg payload Tech Sheet | |||||||||||||||||||||||||||||||||||||||
This chart pairs any two motion axes to show how far they reach together, drawn to scale from the platform's measured limits. Drag the marker anywhere in the plot to read exact values and check whether that pose is reachable.
Traced 1:1 from the platform's measured work-envelope plots. The other axes are held at zero.
Powered by ForceSeatPM, with 154+ commercial and entertainment simulators supported out of the box. The ForceSeatMI license, held per motion platform with the key on the PC, adds native SDK access for custom logic in C++, C#, Python, Unity and UE5.
Dashboards
VR HeadWay
Control Protocol
Post ProcessingThe fully integrated platform manager for motion telemetry tuning and hardware diagnostics.
DashboardsVR HeadWayControl ProtocolPost ProcessingHardware, software and licenses included with every unit - plus the optional add-ons available on this model.

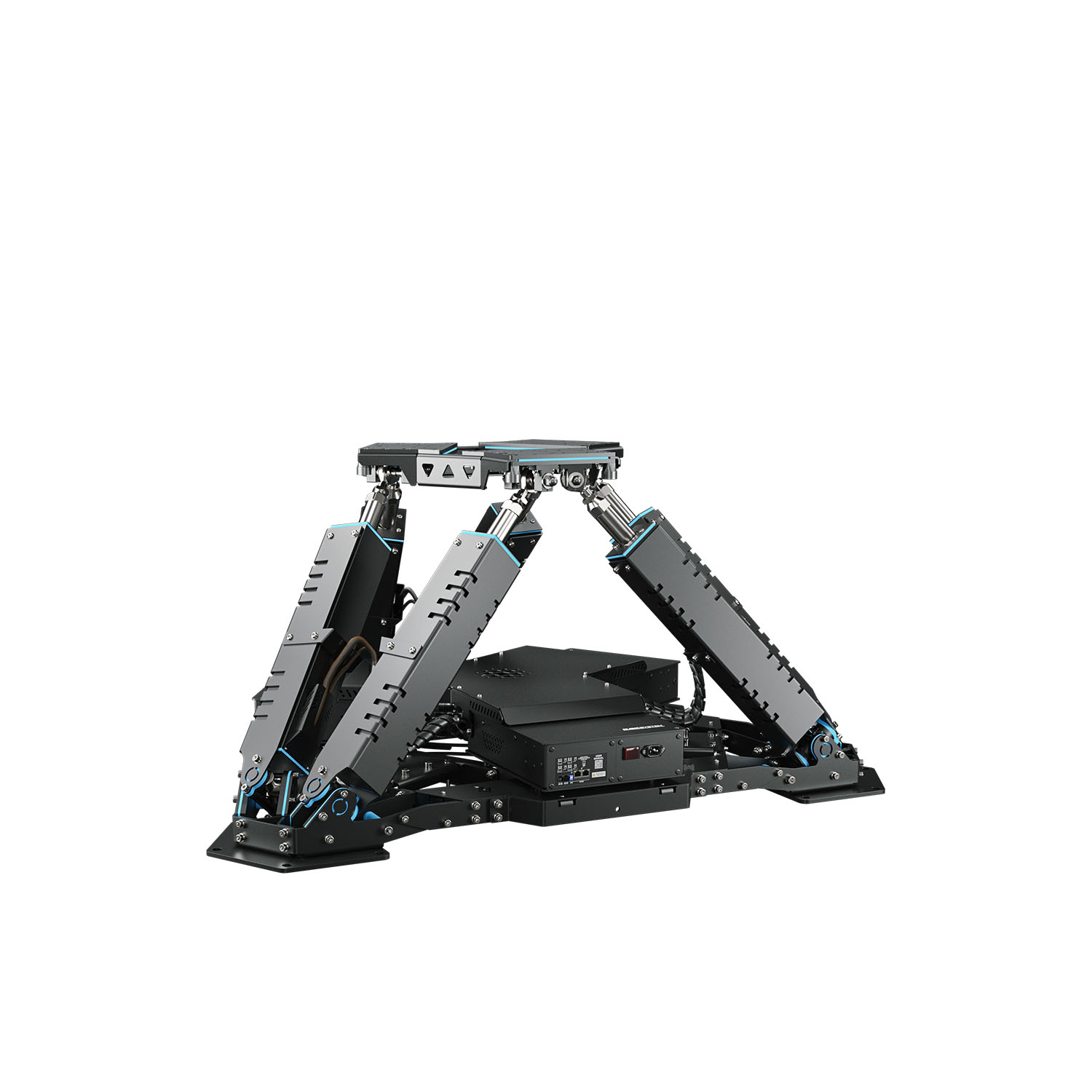

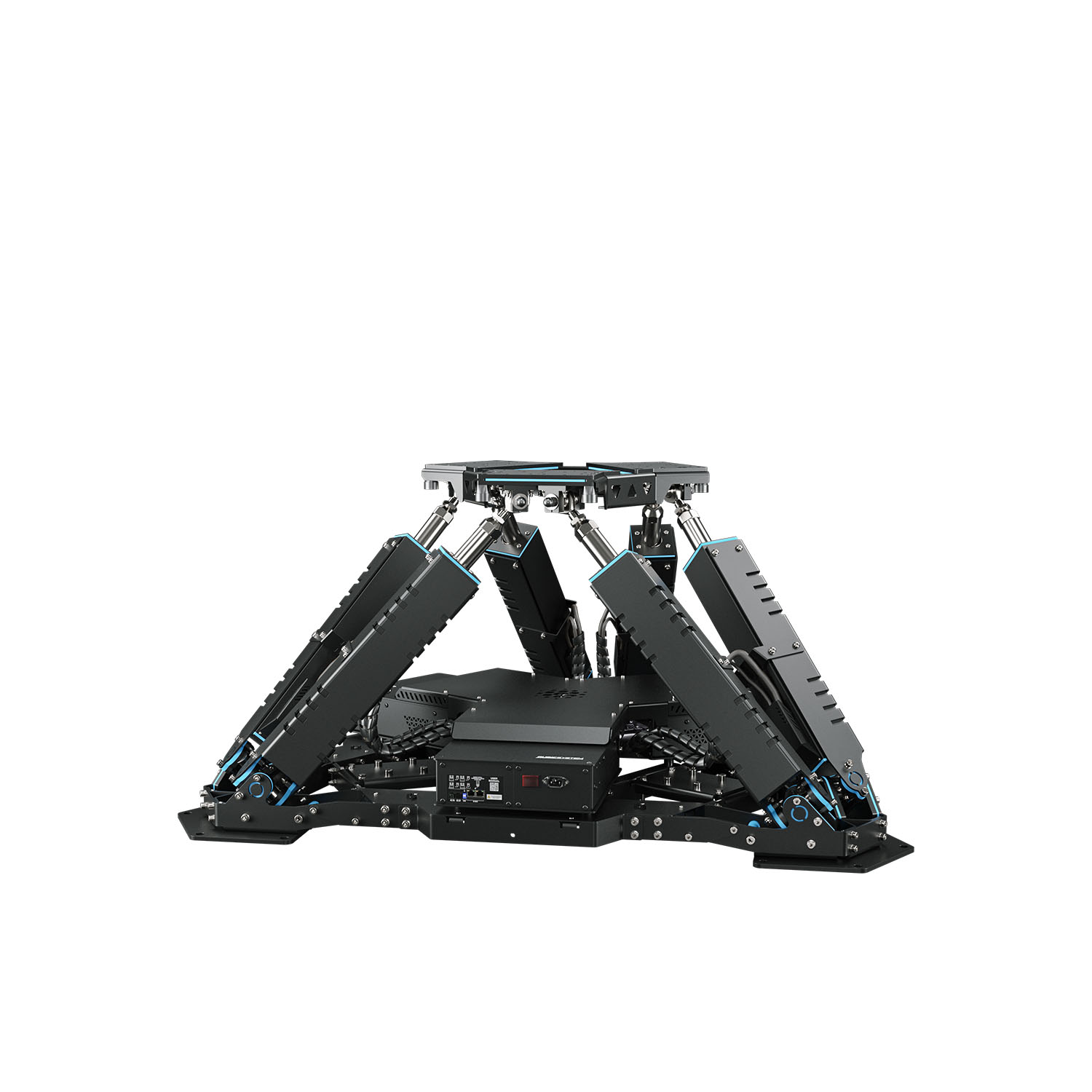

Six electric ball-screw linear actuators sit in a Stewart hexapod between the base feet and the upper frame, each carried on upper and lower cardan joints. A servo motor turns a recirculating ball screw, extending and retracting each strut; coordinating all six struts forms the full six axes of motion. The 6TL-150 uses the QS-L1 actuators, the same struts as the 6TL-250.
A light square frame and modest load give the highest angular speed in the PS Linear range, sized for instrumented payloads rather than human cabins. It runs from a single-phase outlet (120 V US / 230 V EU) with no three-phase service, and each actuator's motor encoder reports its extension so every test run repeats the same way.
On command the Motion-Lock cuts drive, and the frame lowers to its lowest position.
Side-by-side technical data. Toggle Differences only to highlight the higher values.
Explore real-world applications and professional simulations powered by Motion Systems technology.
Payload, motion envelope, delivery and software integration - answered up front, ahead of the first call.
The team provides mounting references so the platform drops onto an existing rig. On the software side, the Hardware Imitator M10 - a USB box that mirrors the platform's control interface - is available on request with a first platform order that includes a ForceSeatMI or ForceSeatDI license, and it comes with a 6-month SDK license so the software team can validate integration before delivery. Custom integration runs through the ForceSeat SDK with motion profiles set in ForceSeatPM; where a build calls for it, the engineering team handles any platform firmware changes.
Platforms run on the ForceSeat software stack: ForceSeatPM delivers out-of-the-box support for popular simulation titles, and the ForceSeatMI and ForceSeatDI SDKs expose a documented API for custom telemetry in C, C++, C# and Python, plus plugins for Unity and Unreal Engine.
Yes, on three levels. The catalog spans payload classes from compact cockpits to full-cabin builds, so most projects start with the right standard model and a payload reserve. For oversized cockpits and cabins, the motion envelope and dynamics are then matched to the load - in software on every platform, and with adjustable hardware travel limiters on selected higher-payload models. Where the catalog does not fit, a bespoke build scopes payload, envelope and travel. Share the intended payload, its mass and the motion requirements and the team will confirm the right configuration.
Delivery includes installation guidance that specifies the mounting points and the power and electrical setup per model; site preparation, floor requirements and platform anchoring are the integrator's responsibility. Every platform ships factory-tested and arrives ready for integration into the simulator build.
Professional Series platforms are built to order, typically in 6-10 weeks from payment, with the exact schedule confirmed at quote. With the optional Hardware Imitator M10, software integration runs in parallel with production, so go-live is not gated by delivery. The compact Qubic System line is often in stock and typically ships within 1-3 weeks.
Every Professional Series platform ships with a 24-month warranty, extendable by agreement. Spare-parts manufacturing and diagnostic support continue for the operational life of the platform, with SLA options for fleet and training deployments.
One team scopes the build, carries it through integration and commissioning - with integrator partners where a full simulator is the goal - and stays involved once the rig runs in the field.
A dedicated account manager reads the message directly.
The team analyzes feasibility and prepares questions or an initial concept.
Detailed technical proposal with a platform recommendation, transparent pricing, lead time, and integration timeline.
Ongoing support from the team behind the recommended platform - for the life of the project.
