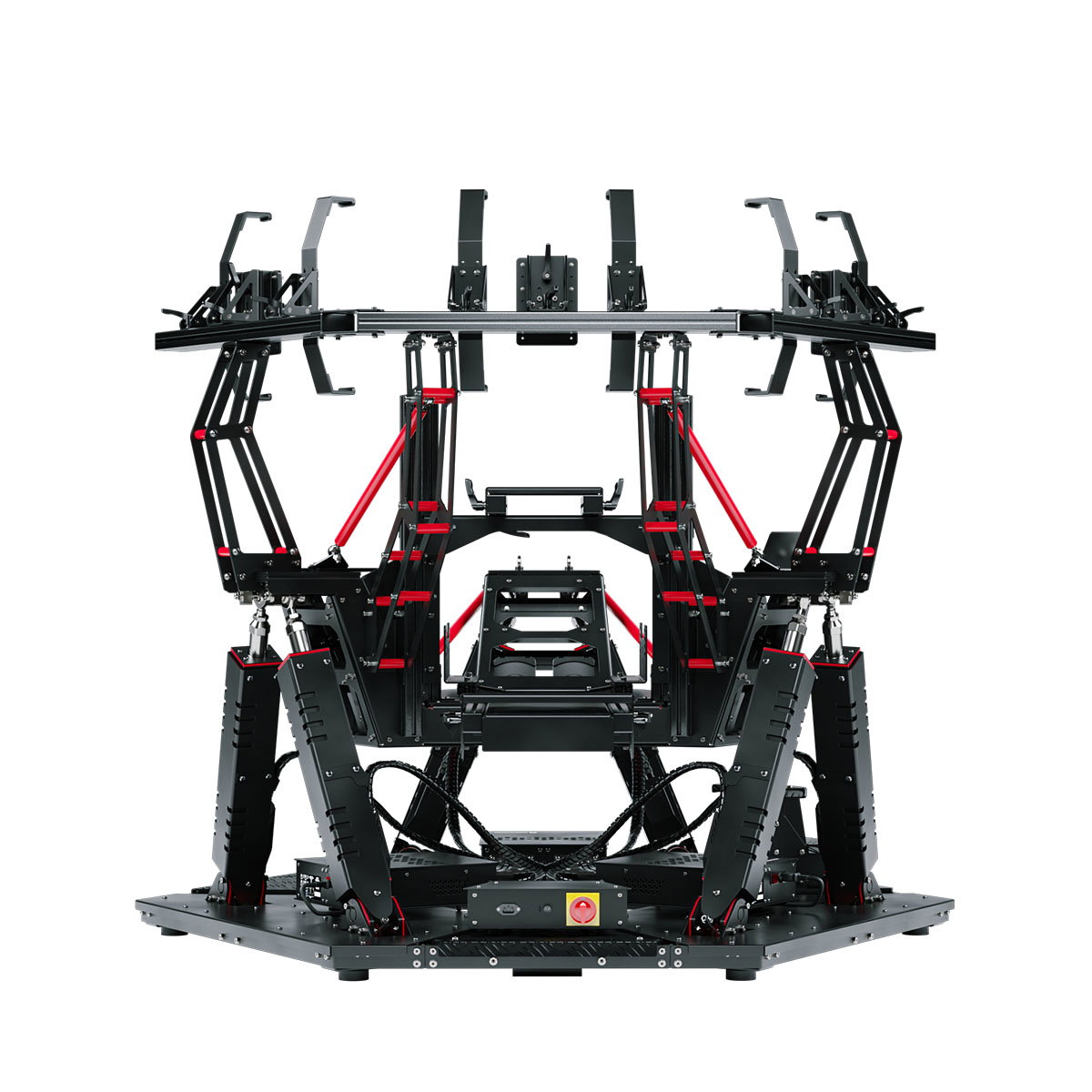

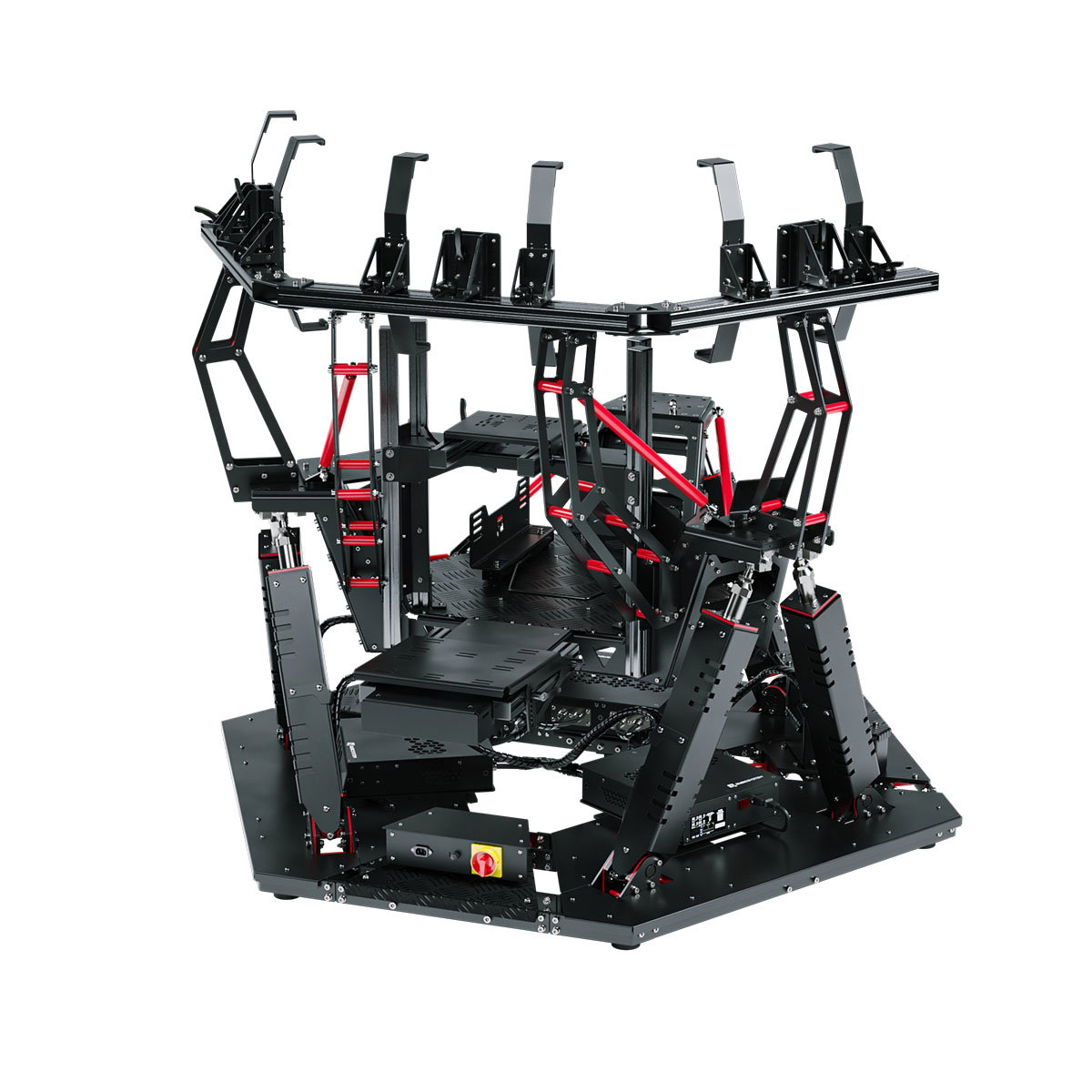

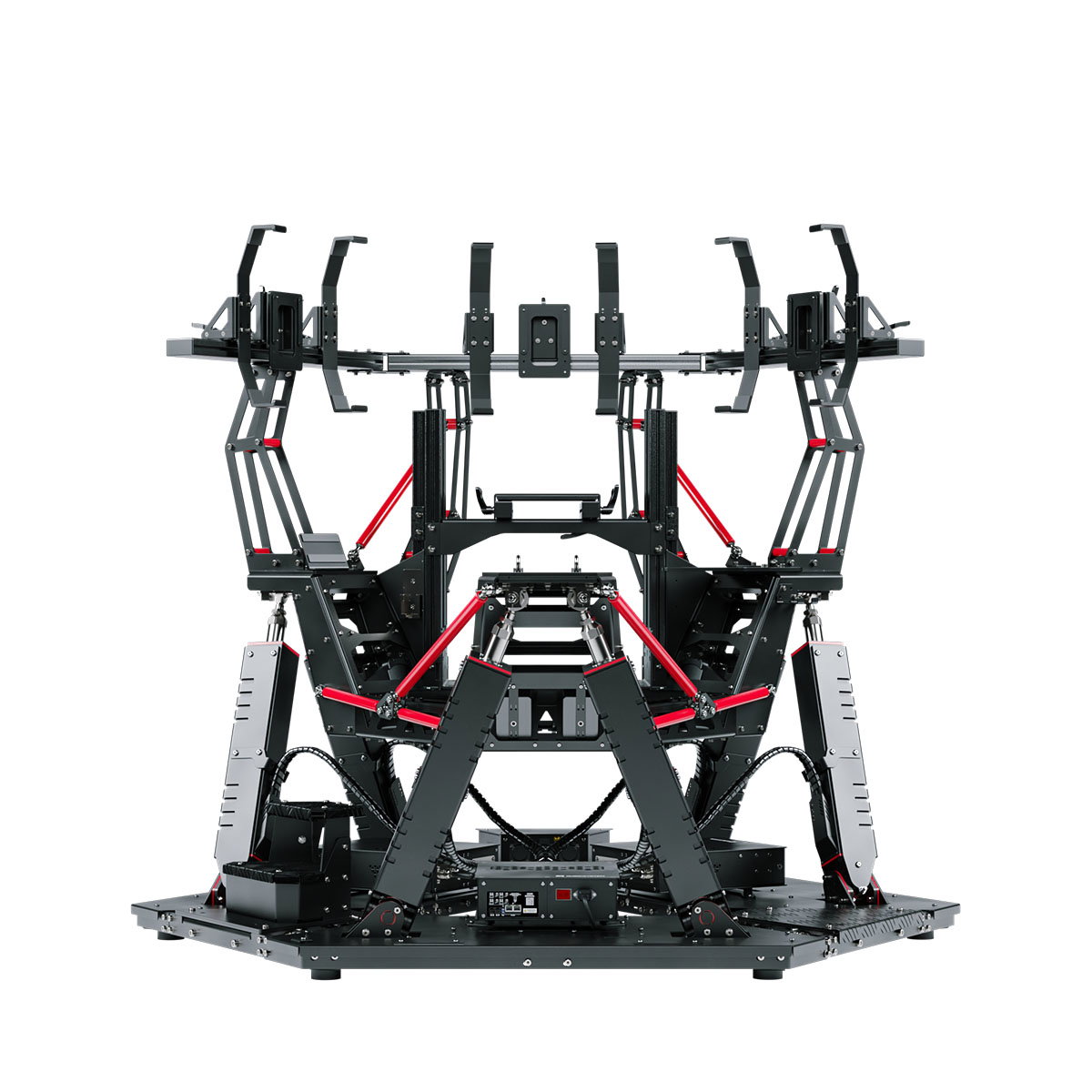

Premium Stewart Hexapod, Optional Modular Delivery
The list price is the full price of the standard unit shown here - net and ex-works. VAT is normally zero on export orders; options, delivery and any duties are confirmed at order.
Three engineering decisions that define this product.
On request, the platform can be prepared in segments sized to fit through a standard doorway, then bolted together on site over a weekend.
An integrator places it in a third-floor apartment or existing lab with no building work or lifting gear.
A full-frame 6DOF rig arrives as one welded structure, often demanding a freight lift or landlord consent.
Surge runs at 1000 mm/s and 1.0G, the highest longitudinal velocity in the Qubic System range.
A driver drilling braking points feels the cue at vehicle speed, so timing transfers cleanly to the track.
Without that onset speed, a slower hexapod softens the acceleration edge, and the brake-point drill loses its precision.
An in-house quiet drive keeps the platform inside a 54-59 dB(A) envelope, close to ordinary speech.
A home operator runs sessions without acoustic treatment, while a venue packs stations side by side, lifting count per floor.
A louder hexapod needs a treated room, sacrificing floor that could have earned another revenue station.
| Axis | Range | Velocity | Acceleration | |||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Heave (Vertical) | -54.3/+53.8mm | 350mm/s | 0.5G | |||||||||||||||||||||||||||||||||||
| Surge (Longitudinal) | -139.2/+115.3mm | 1000mm/s | 1G | |||||||||||||||||||||||||||||||||||
| Sway (Lateral) | -114.7/+114.7mm | 900mm/s | 1G | |||||||||||||||||||||||||||||||||||
| Pitch | -4.6/+4.6° | 40°/s | 500°/s2 | |||||||||||||||||||||||||||||||||||
| Roll | -5.1/+5.1° | 40°/s | 500°/s2 | |||||||||||||||||||||||||||||||||||
| Yaw | -9.8/+9.8° | 80°/s | 1000°/s2 | |||||||||||||||||||||||||||||||||||
| Payload specifications | ||||||||||||||||||||||||||||||||||||||
| Payload | 250kg(basic, no accessories) | |||||||||||||||||||||||||||||||||||||
| Main dimensions | ||||||||||||||||||||||||||||||||||||||
| Total Width | 1701mm | |||||||||||||||||||||||||||||||||||||
| Total Length | 1603mm | |||||||||||||||||||||||||||||||||||||
| Min Height | 769mm | |||||||||||||||||||||||||||||||||||||
| Max Height | 877mm | |||||||||||||||||||||||||||||||||||||
| Installed height (cockpit + monitors) | 1559mm | |||||||||||||||||||||||||||||||||||||
| Product Weight | 350kg | |||||||||||||||||||||||||||||||||||||
| Performance | ||||||||||||||||||||||||||||||||||||||
| Stroke | 100mm | |||||||||||||||||||||||||||||||||||||
| Vibration Range | 0-100Hz | |||||||||||||||||||||||||||||||||||||
| Latency | <8ms | |||||||||||||||||||||||||||||||||||||
| Payload (Perf. Mode) | 150kg | |||||||||||||||||||||||||||||||||||||
| Noise Level | 54-59dB(home-friendly) | |||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
Peak values in Performance mode, with payload up to 150 kg. Tech Sheet | ||||||||||||||||||||||||||||||||||||||
This chart pairs any two motion axes to show how far they reach together, drawn to scale from the platform's measured limits. Drag the marker anywhere in the plot to read exact values and check whether that pose is reachable.
Traced 1:1 from the platform's measured work-envelope plots. The other axes are held at zero.
Powered by ForceSeatPM, with 154+ commercial and entertainment simulators supported out of the box. The ForceSeatMI license, held per motion platform with the key on the PC, adds native SDK access for custom logic in C++, C#, Python, Unity and UE5.
Dashboards
VR HeadWay
Control Protocol
Post ProcessingThe fully integrated platform manager for motion telemetry tuning and hardware diagnostics.
DashboardsVR HeadWayControl ProtocolPost ProcessingHardware, software and licenses included with every unit - plus the optional add-ons available on this model.
Start with the motion Basic Set, then add the cockpit and monitor brackets as the build needs them.

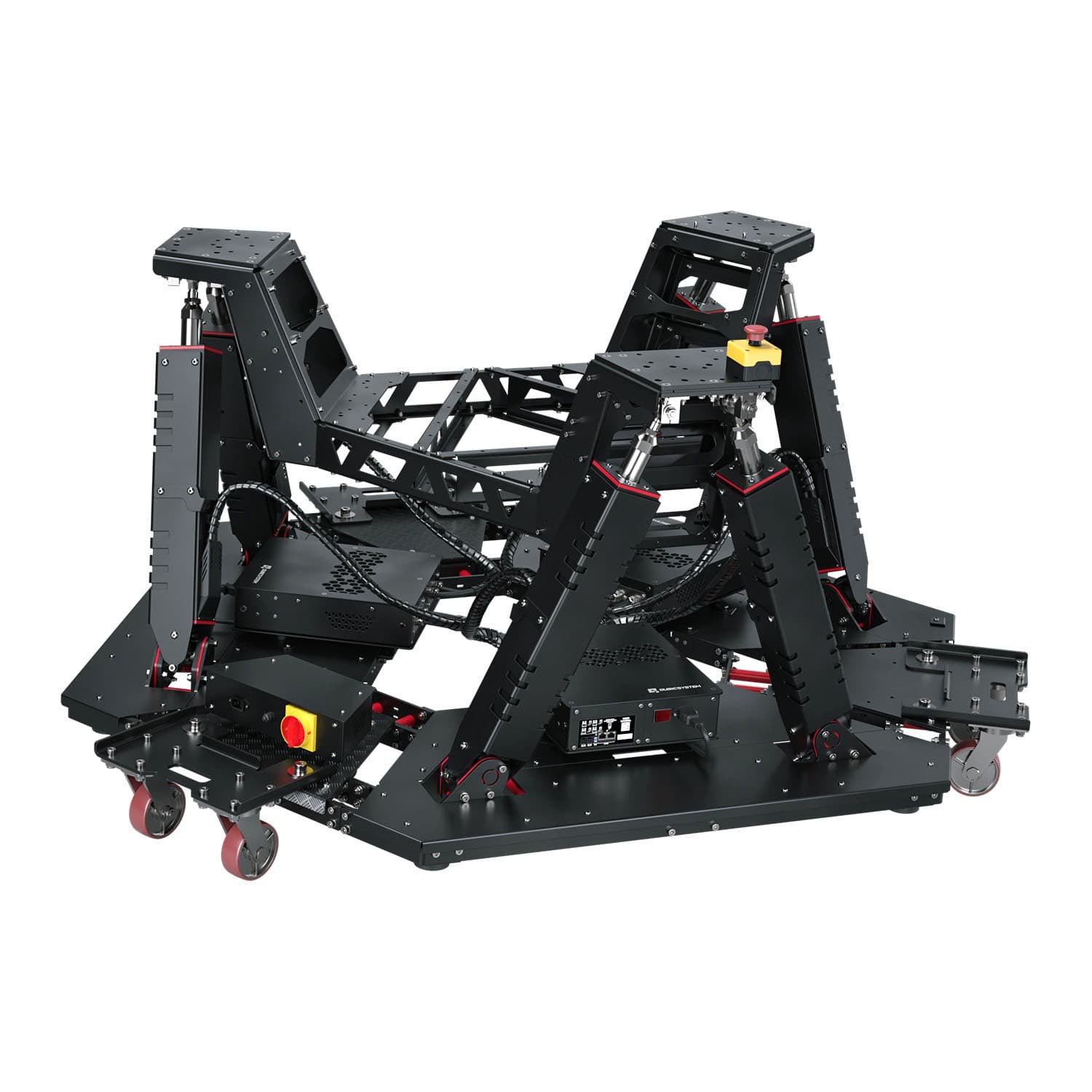

The 6DOF motion platform
The list price is the full price of the standard unit shown here - net and ex-works. VAT is normally zero on export orders; options, delivery and any duties are confirmed at order.

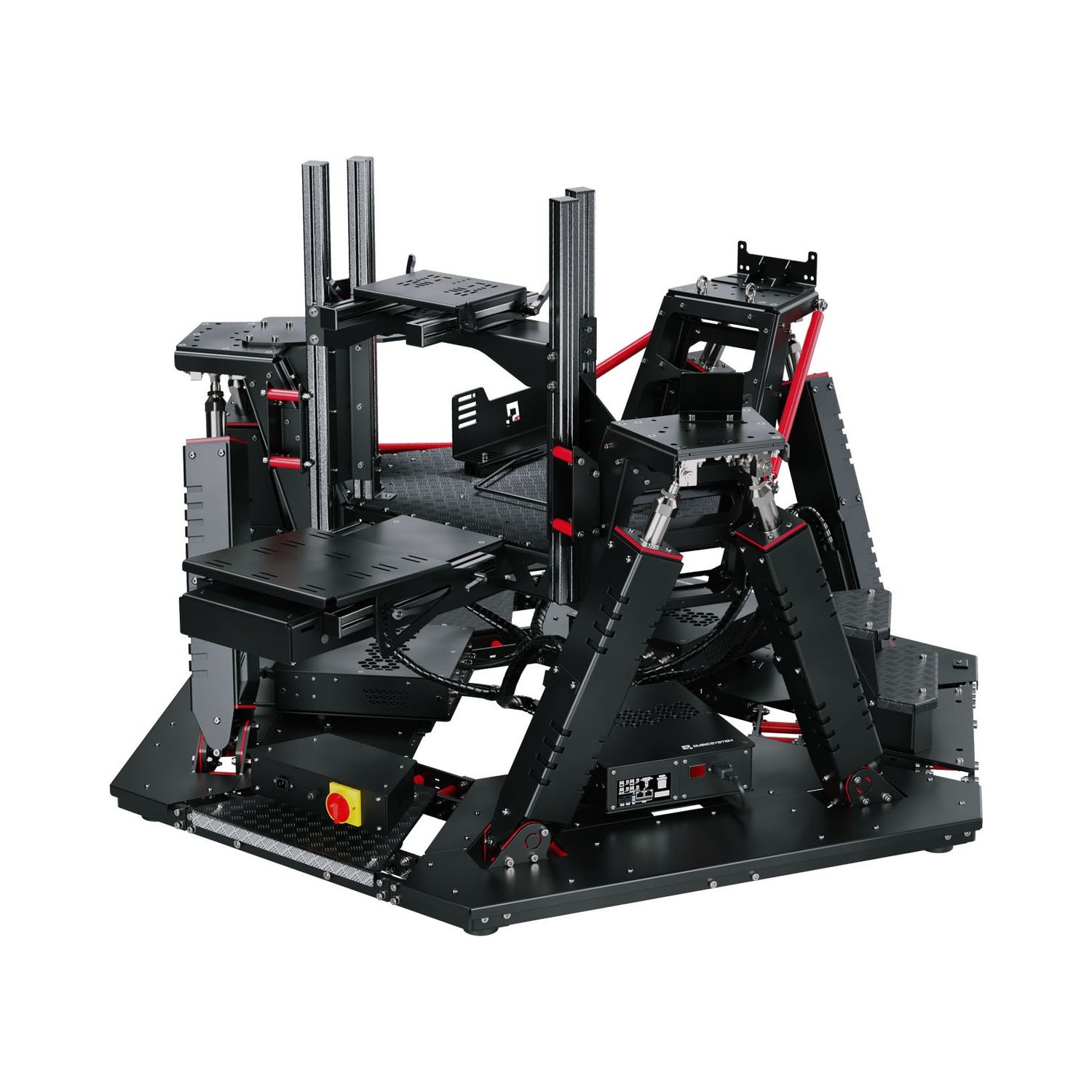

Turn the module into a driving position
The list price is the full price of the standard unit shown here - net and ex-works. VAT is normally zero on export orders; options, delivery and any duties are confirmed at order.

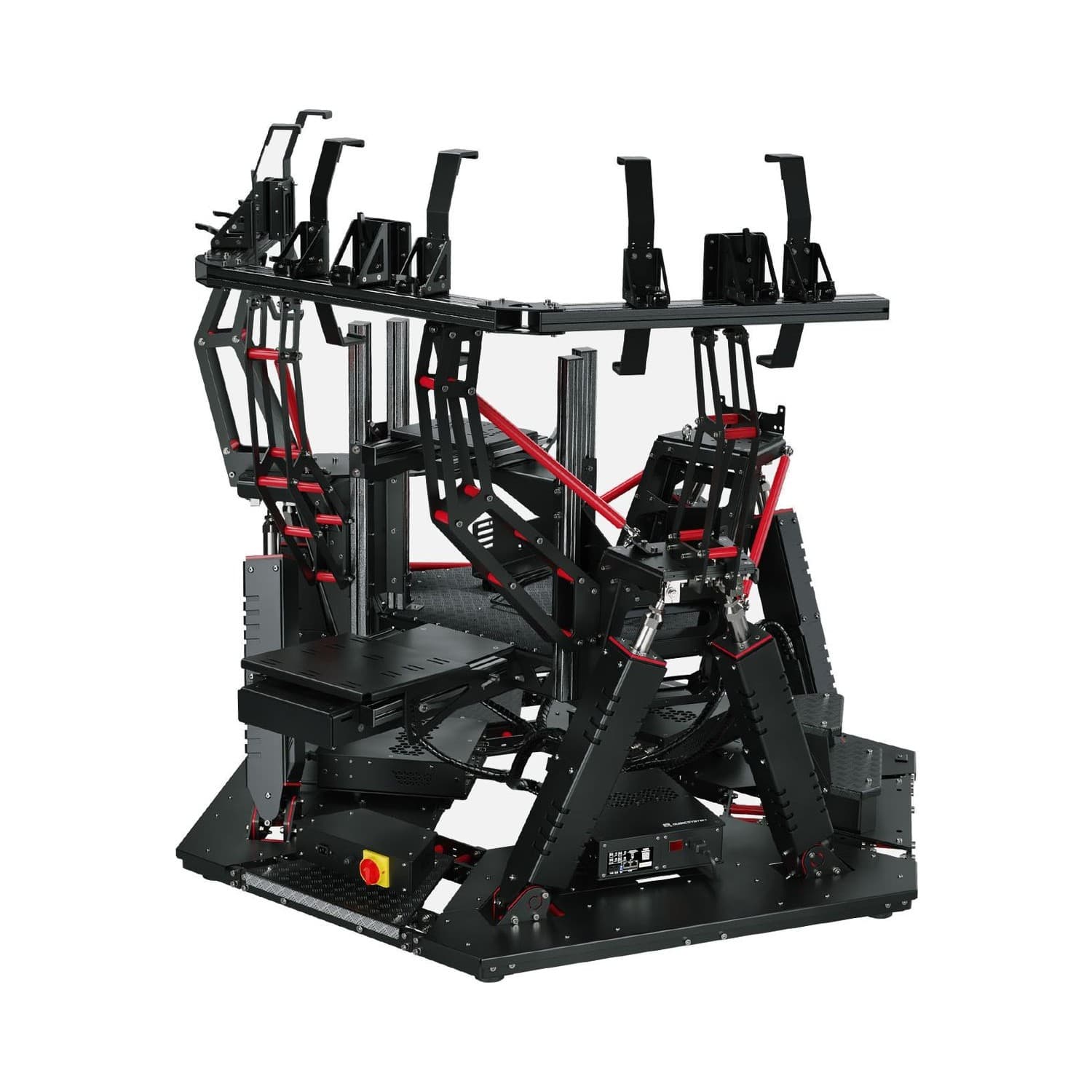

Screens that move with the platform
The list price is the full price of the standard unit shown here - net and ex-works. VAT is normally zero on export orders; options, delivery and any duties are confirmed at order.
The QS-BT1 Seat Belt Tensioner pulls on the racing harness in sync with the motion - braking, cornering and traction loss on track, climbs and G-loading in flight, all become physical. Fully compatible with the QS-S25.
The QS-S25 is a 6DOF Stewart hexapod. Six QS-L1 electric linear actuators sit between the base feet and the cockpit frame on cardan joints, and the coordinated push and pull of all six forms every axis - heave, surge, sway, pitch, roll and yaw. The surge and sway read as braking and cornering load, with no hydraulics to maintain.
ForceSeatPM reads telemetry from the running title and hands it to the M10 controller, which turns each frame into per-actuator extension and drives three QS-SB2 power cabinets end-to-end in under 8 ms, so the longitudinal cue lands in step with the picture. The platform runs on ordinary 120/230V single-phase mains and calibrates its actuator positions on start-up.
A hardware Motion-Lock circuit stops all motion on command. With no holding brakes, the locked platform settles to its lowest position for safe boarding.
Side-by-side technical data. Toggle Differences only to highlight the higher values.
Explore real-world applications and professional simulations powered by Motion Systems technology.
New Zealand
After years on 3DOF, the customer moved to a Motion Systems 6DOF platform for greater realism and power, reporting high build quality and responsive support.
Italy
Sim Maranello built the SIM RST 6DOF simulator on the QS-S25.
Dunsfold Aerodrome in Surrey Hills, United Kingdom
Imagination and LG delivered a secret test-drive gaming experience to celebrate the launch of the racing video game Forza Horizon 5.
Setup, supported titles, latency and software integration - answered up front, ahead of the first call.
Qubic System sets up in hours: the platform and ForceSeatPM auto-detect supported simulator titles with pre-tuned profiles, no code required. The customer supplies the PC, title and controls; the ForceSeat SDK covers custom integration.
ForceSeatPM auto-detects a wide range of supported simulator titles with pre-tuned profiles, and the ForceSeat SDK and API cover custom telemetry for bespoke integrations.
Yes. Qubic System accepts add-ons such as the QS-BT1 seat-belt tensioner and the QS-CH2 module, so a rig can extend the effects and axes it delivers over time.
The ForceSeat SDK streams telemetry in C, C++, C# and Python with Unity and Unreal Engine plugins, and the Hardware Imitator M10 lets integration code be written and validated in days, before the platform arrives.
Qubic System hardware is often in stock and typically ships within 1-3 weeks, with the exact date confirmed at order. Integration work does not have to wait for delivery - the ForceSeat SDK lets custom development start ahead of the hardware.
Every platform ships with a warranty, diagnostic support and access to spare parts, with the exact term listed in the box above. Extended service options are available for fleet and training deployments.
One team scopes the build, carries it through integration and commissioning - with integrator partners where a full simulator is the goal - and stays involved once the rig runs in the field.
A dedicated account manager reads the message directly.
The team analyzes feasibility and prepares questions or an initial concept.
Detailed technical proposal with a platform recommendation, transparent pricing, lead time, and integration timeline.
Ongoing support from the team behind the recommended platform - for the life of the project.
