QS-617

 21 500.00 *

The QS-617 motion platform is a perfect base for industrial testing, verification and testing application of camera modules, antennas, telescopes and ather optical technology.

Categories: , , Tags: ,

Description

QS-617
*tax and duty not incl.
€ 21 500.00 *
QUBIC SYSTEM
ASK ABOUT PRODUCT

PLATFORM HIGHLIGHTS

6

ARCHITECTURE

150

PAYLOAD

802

MIN HEIGHT

207

WEIGHT

MOTION PLATFORM

QS-617

PROFESSIONAL SERIES

6

ARCHITECTURE

150

PAYLOAD

802

MIN HEIGHT

207

WEIGHT

ASK ABOUT PRODUCTASK ABOUT PRODUCT

KEY FEATURES

Super silent

Extremely quiet operation

Modular and Reconfigurable

Easy to adapt to 3rd party cockpits

Software support

Motion adjustment, motion post-processing, extensive diagnostic and profiles

Precision in movement repeatability

Incredible movement repeatability

VR technology

VR HeadWay technology support (VR sickness compensation)

Compact design

Extremely small footprint and lightweight body

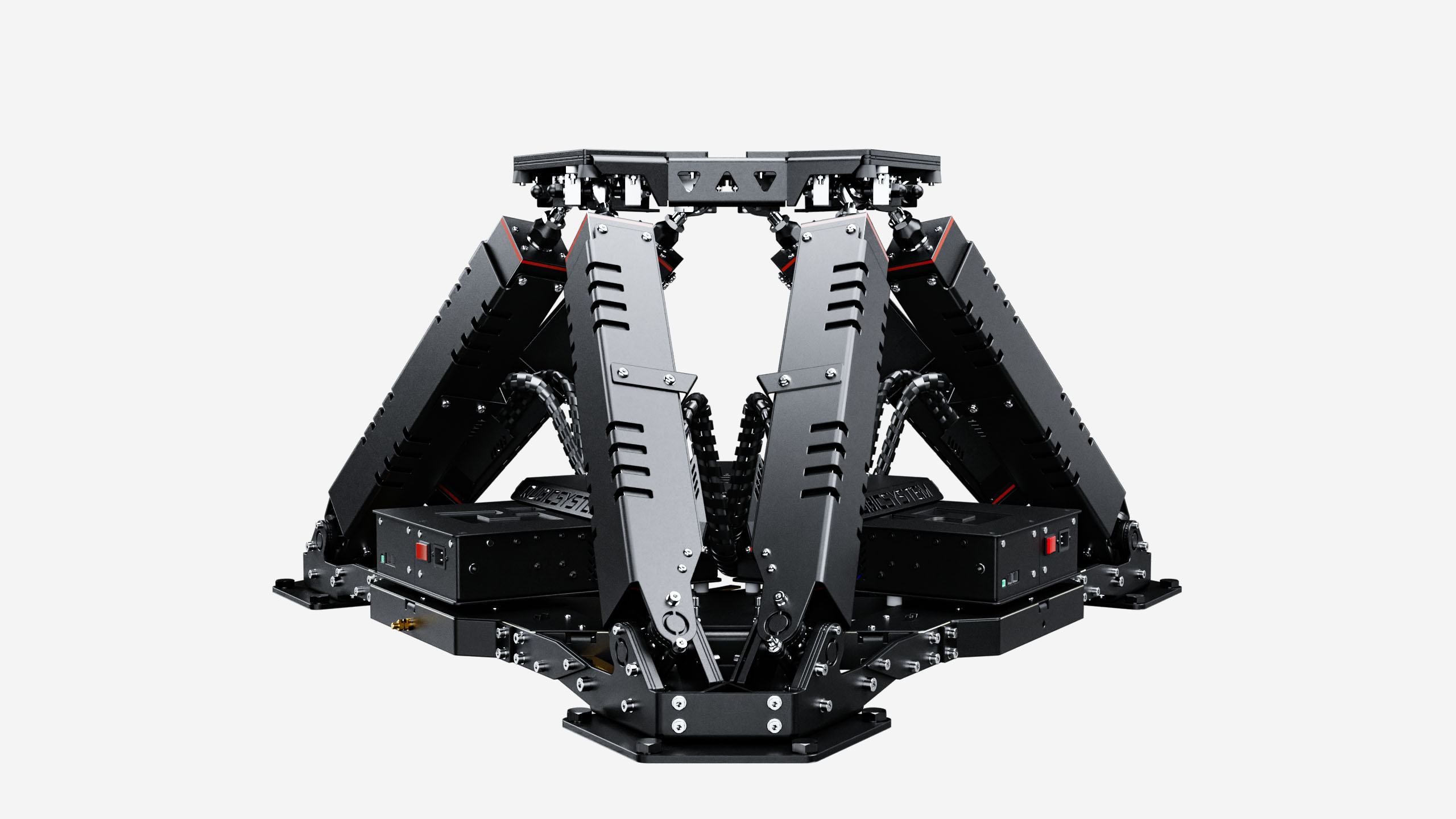

MOTION PLATFORM QS-617

The QS-617 motion platform is a perfect base for industrial testing, verification and testing application of camera modules, anntenas, telescopes and ather optical technology where the high frequencies and velocities are required. Gross moving load up to 250 kg/551 lb, super clean solution, compact size, and ultra-quiet operation, are not the only advantages of a six-axis machine. This 6DoF motion system is equipped with rigidity, high positioning accuracy and real-time vibrations, which is mainly intended for projects in the field of positioning and testing. Moreover, comparing this platform with the QS-625 motion system, it can be easily noticed that QS-617 has an extended motion envelope and increased velocity.

QS-617
QS-617

FOR PROFESSIONALS

QS-617

The 6DoF motion platform is mainly intended for professional applications. Motion system is applicable in projects regarding:

  • automotive components testing
  • optical devices, components testing and verification
  • advanced research and simulators for Universities
  • biomedical and rehabilitation applications
  • industrial testing
  • anntenas positioning and verification
ASK ABOUT PRODUCTASK ABOUT PRODUCT

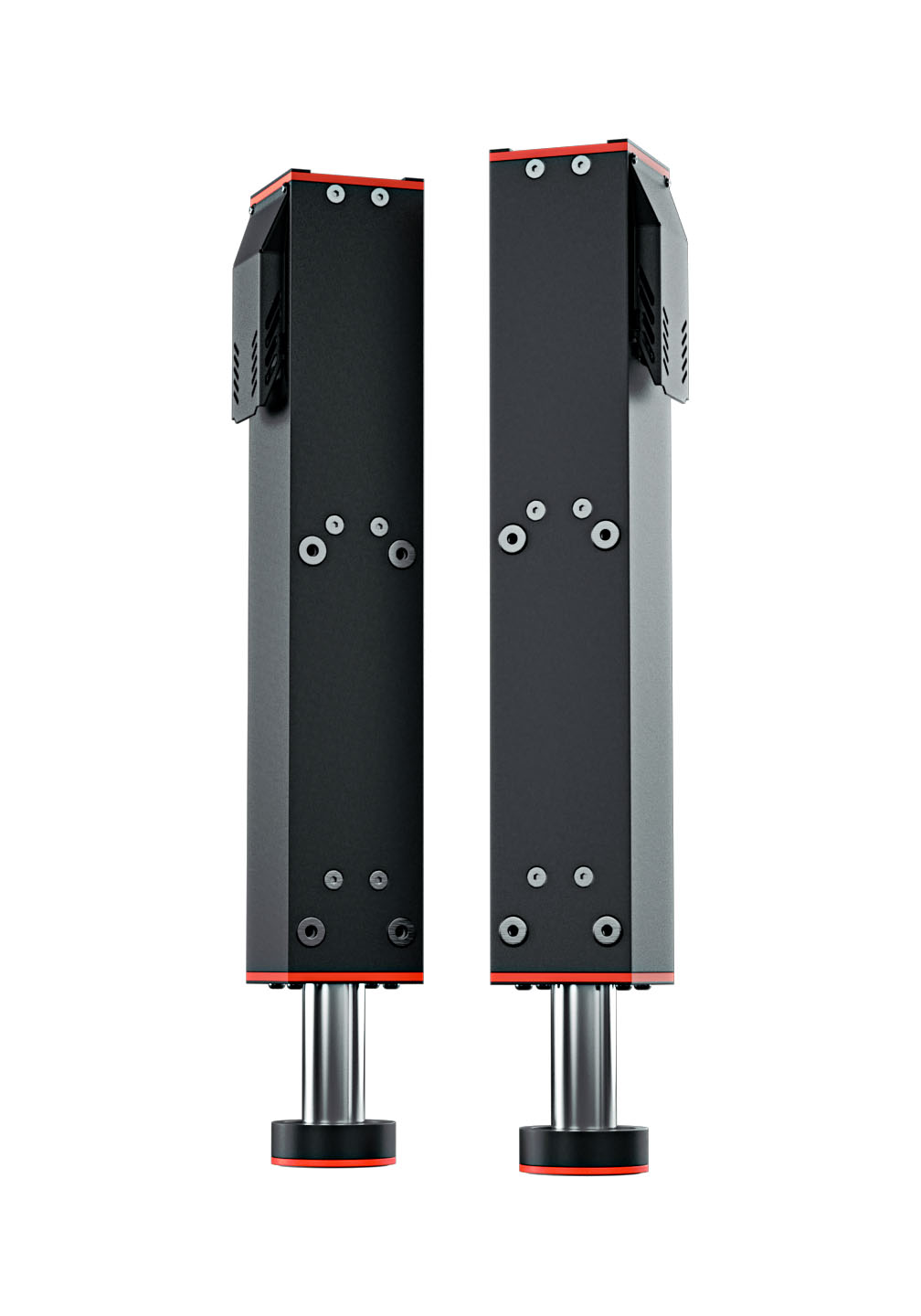

LINEAR MOTION TECHNOLOGY

This super silent  6DoF motion platform is being optimized through and through. Top benefits of QS-617 based on linear actuator’s technology:

  • wide range of motion
  • super clean and compact motion solution
  • high positioning accuracy
  • high rigidity
  • reduced sensitivity to certain errors
  • real-time vibrations
  • easier assembly
  • lower operating costs
  • lower maintenance costs
  • easy to integrate with other systems and equipment
  • more precise than hydraulics and pneumatics motion solutions
ASK ABOUT PRODUCTASK ABOUT PRODUCT

DOWNLOAD OUR CATALOG

Find out more about company and products

CATALOG 2022CATALOG 2022

GENERAL SPECIFICATION

System performance

EXCURSION

SINGLE DOF

NON SINGLE DOF

VELOCITY

ACCELERATION

Surge

EXCURSION (SINGLE)

- 80.2 mm, 64.9 mm

EXCURSION (NON SINGLE)

- 86.4 mm, 69.8 mm

VELOCITY

0.57 m/s

ACCELERATION

4 m/s²

Sway

EXCURSION

- 68 mm, 68 mm

EXCURSION (NON SINGLE)

- 73.1 mm, 73.1 mm

VELOCITY

0.53 m/s

ACCELERATION

3.6 m/s²

Heave

EXCURSION

- 61.6 mm, 77.1 mm

EXCURSION (NON SINGLE)

- 56.7 mm, 73.7 mm

VELOCITY

0.44 m/s

ACCELERATION

3 m/s²

Roll

EXCURSION

- 20.8°, 20.8°

EXCURSION (NON SINGLE)

- 19.5°, 19.5°

VELOCITY

150°/s

ACCELERATION

1100°/s²

Pitch

EXCURSION

- 19.9°, 20.8°

EXCURSION (NON SINGLE)

- 19.1°, 18.0°

VELOCITY

165°/s

ACCELERATION

1200°/s²

Yaw

EXCURSION

- 21.4°, 21.4°

EXCURSION (NON SINGLE)

- 22.9°, 22.9°

VELOCITY

140°/s

ACCELERATION

1000°/s²

Payload specification

Product weight

207 kg | 456 lb

Payload

150 kg | 331 lb

Main dimensions

Total length

1258 mm | 49.5 in

Total width

1258 mm | 49.5 in

Min height

802 mm | 31.57 in

Power requirements

Power supply requirement

230V 50-60HZ

Average power (Watts): 199
Average power (VA): 2114,53
Peak Current (A): 8,84

120V 50-60HZ

Average power (Watts): 238
Average power (VA): 2160,31
Peak Current (A): 17,45

PRODUCT CARDPRODUCT CARD

SOFTWARE BASICS

To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.

If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.

ForceSeatMI supports

  • Windows

ForceSeatDI supports

  • Windows
  • Raspberry Pi
  • Linux

Both SDK's support*

  • Unity
  • Unreal Engine
  • Matlab & Simulink
  • C/C++/C#
  • Python

*Support for Motion Platforms can be added if UE4/Unity application is possible to modify.
