Description
PLATFORM HIGHLIGHTS
3
ARCHITECTURE
1000
PAYLOAD
69
MIN HEIGHT
595
WEIGHT
PS-3TM-1000
KEY FEATURES
Movement repeatability
High ability to generate vibrations and incredible movement repeatability
Compact design
Small footprint and lightweight body
Safety
Safe mechanical design resistant to electronic failures. Safety Integrity Level up to 3
Software support
Control all our motion platforms using one of ours SDK
Unleashed performance
Impressive dynamics and performance
Super Silent
Extremely quiet and smooth operation
VR technology
All our motion platforms work in VR environment
Warranty
Global technical support and gear lifetime up to 10 years of operation
MOTION PLATFORM PS-3TM-1000
HEAVY DUTY SOLUTION
The PS-3TM-1000 three degrees of freedom motion platform was designed for most heavy-duty load application where customers require reliability up to 100 000 working hours and gross moving load up to 1000 kg. It is our most popular motion system.
Compact design, perfect fit and smooth operation for the entire movement envelope distinguishes the motion platform from other machines of similar payloads. Moreover, self stabilization and uncommon precision offers wide range of possible application – starting from single trainee up to crew simulation.
- platforms are suitable for medium size land, speed boat or flight simulators
- medium size full cockpit simulator with visualisation system
- vehicle training simulators for up to 4 people
- medium size military training simulators for up to 4 people
- squad training simulation systems with free trainee movement
- medium size mining equipment simulators
- high load entertainment system up to 5 people
- virtual reality up to 6 people
GENERAL SPECIFICATION
System performance
EXCURSIONS
Velocity
Acceleration
SINGLE DOF
NON-SINGLE DOF
Heave
SINGLE DOF
-0.16, 0.17 m
-6.3, 6.69 in
NON-SINGLE DOF
-0.16, 0.17 m
-6.3, 6.69 in
Velocity
0.51 m/s
20.1 in/s
Acceleration
4.5 m/s²
0.45 g
Roll
SINGLE DOF
-19.0°, 19.0°
NON-SINGLE DOF
19.0°, 19.0°
Velocity
47°/s
Acceleration
360°/s²
Pitch
SINGLE DOF
-16.4°, 16.4°
NON-SINGLE DOF
-22.5°, 21.5°
Velocity
55°/s
Acceleration
488°/s²
Payload specification
Payload
1000 kg | 2205 lb
Center of Gravity height above Moving Platform Centroid
500 mm
Product weight
595 kg | 1312 lb
Moment of inertia
500 kg x m2

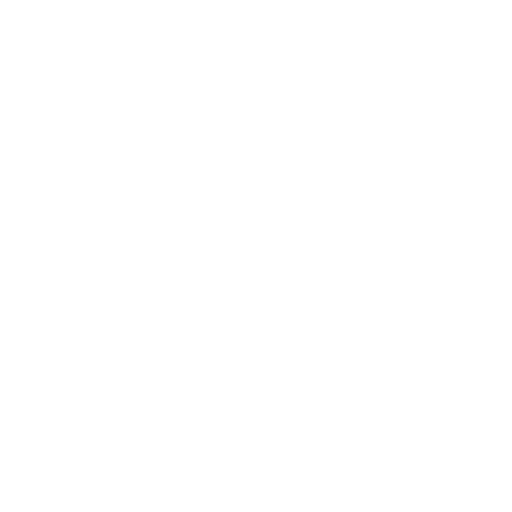

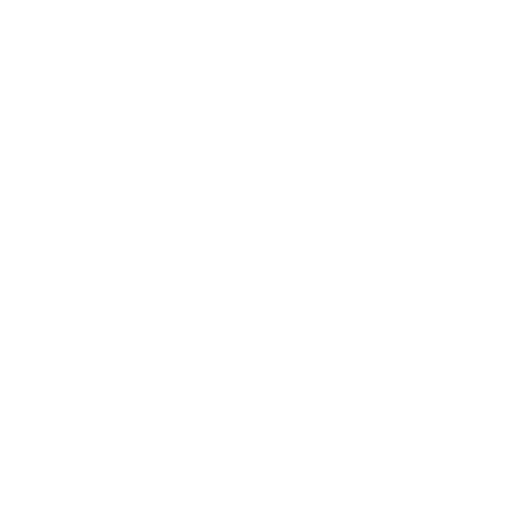

Main dimensions
Total width
1497 mm | 58.94 in
MIN height
688 mm | 27.1 in
Total length
1705 mm | 67.1 in
Power requirements
Power supply requirements
400 VAC Three Phases
Peak Power [kVA]
10.4 kVA
Peak Current [A]
9 A
Average Power - typical game [kW]
3.8 W
Connection
USB | Ethernet
ADD-ONS & ACCESSORIES
POWER CABINET
PS-SB400
Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. The new generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. An additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
€ 4500.00 (tax and duty not incl.)
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is a necessary part of motion platform’s power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
€ 600.00 (tax and duty not incl.)
ADD-ONS & ACCESSORIES
POWER CABINET
PS-SB400
Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
€ 4500.00 (tax and duty not incl.)
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
€ 600.00 (tax and duty not incl.)
LATEST PRODUCT VIDEO
SOFTWARE BASICS
To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.
If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.
ForceSeatMI supports
- Windows
ForceSeatDI supports
- Windows
- Raspberry Pi
- Linux
Both SDK's support*
- Unity
- Unreal Engine
- Matlab & Simulink
- C/C++/C#
- Python
