Motion Platform PS-6TL-800

PS-6TL-800

€ 51 500.00 *

Gross moving load: 800kg
Applications: Almost all types of closed cabin units
Heave: – 0.18 m, 0.22 m, 0.5G
Pitch: -23.6°, 21.8°, 45°/s, 600°/s2
Roll: -24.5°, 24.5°, 40°/s, 550°/s2
Yaw: -37.0°, 37.0° , 65°/s, 800°/s2
Surge: – 0.37, 0.35 m, 680mm/s, 7 m/s2
Sway: – 0.33, 0.33 m, 770mm/s, 7 m/s2
Weight: 750kg

Categories: , , Tags: ,

Description

PROFESSIONAL SERIES

PS-6TL-800

€ 51 500.00*

*tax and duty not incl.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

PLATFORM HIGHLIGHTS

6

ARCHITECTURE

800

GROSS MOVING LOAD

350

ACTUATOR STROKE

750

WEIGHT

KEY FEATURES

Precision in movement repeatability

High ability to generate vibrations and incredible movement repeatability

Compact design

Extremely small footprint and lightweight body

Safety

Safe mechanical design resistant to electronic failures. Safety Integrity Level up to 3

Software support

Control all our motion platforms using one of ours SDK

Resistant to overload

Good resistance to momentary overload resulting from dynamic change in mass distribution

Super Silent

Totally smooth and quite operation

VR technology

All our motion platforms work in VR environment

Easy to transport

Perfect size enabling worldwide transportation

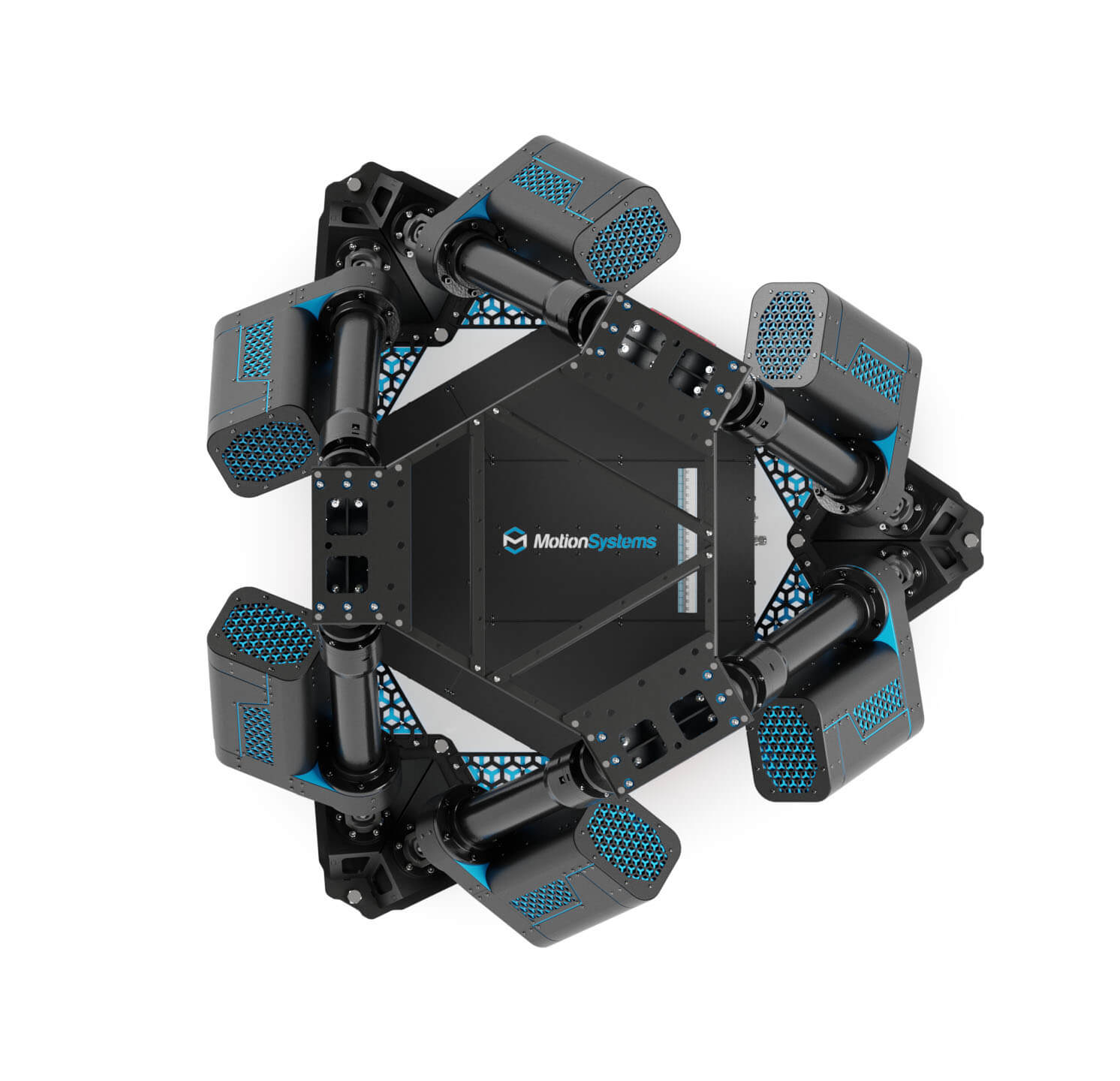

MOTION PLATFORM PS-6TL-800

The PS-6TL-800 device is a type of Stewart platform with gross moving load up to 800 kg. It is a type of six-degree-of-freedom parallel manipulator that allows execution of three translational movements and three rotational movements about the vertical, longitudinal and lateral axis.

Motion Platform PS-6TL-800
Motion Platform PS-6TL-800

FOR PROFESSIONALS

Motion Platform PS-6TL-800

The 6DoF motion platform is mainly intended for professional applications in research and biomedical field, flight and driving simulation or industry.
Motion system is applicable in projects regarding:

  • flight simulators
  • robotics industry
  • advanced research, testing and university simulators
  • industrial testing
  • biomedical applications
  • electrodischarge machining
  • radio telescope positioning system
  • simulation of autonomous vehicles
ASK ABOUT PRODUCTASK ABOUT PRODUCT

LINEAR MOTION TECHNOLOGY

Motion Platform PS-6TL-800

This precise 6DoF motion system is being optimized through and through. Top benefits of PS-6TL-800 based on linear actuators technology:

  • high load capacity
  • precise positioning
  • high rigidity
  • reduced sensitivity to certain errors
  • quiet operation
  • small footprint
  • easier assembly
  • lower operating costs
  • lower maintenance costs
  • easy to integrate with other systems and equipment
  • more precise than hydraulics and pneumatics
  • increased flexibility and synchronization options
ASK ABOUT PRODUCTASK ABOUT PRODUCT
Motion Platform PS-6TL-800

GENERAL SPECIFICATION

System performance

EXCURSIONS

SINGLE EXCURSION

VELOCITY

ACCELERATION

Surge

SINGLE EXCURSION

- 0.37 m, 0.35 m

VELOCITY

0.68 m/s

ACCELERATION

7 m/s²

Sway

SINGLE EXCURSION

- 0.33 m, 0.33 m

VELOCITY

0.75 m/s

ACCELERATION

7 m/s²

Heave

SINGLE EXCURSION

- 0.18 m, 0.22 m

VELOCITY

0.4 m/s

ACCELERATION

5 m/s²

Roll

SINGLE EXCURSION

-24.5°, 24.5°

VELOCITY

40°/s

ACCELERATION

550°/s²

Pitch

SINGLE EXCURSION

-23.6°, 21.8°

VELOCITY

45°/s

ACCELERATION

600°/s²

Yaw

SINGLE EXCURSION

-37.0°, 37.0°

VELOCITY

65°/s

ACCELERATION

800°/s²

Payload specification

Product weight

750 kg | 1653 lb

Payload

720 kg | 1587 lb

Gross moving load

800 kg | 1544 lb

COG height above MPC*

* COG: CENTER OF GRAVITY – MPC: MOVING PLATFORM CENTROID

500 mm | 19.7 in

Moments of inertia

Ixx = 450 kg*m²

Iyy = 450 kg*m²

Izz = 450 kg*m²

Main dimensions

Total length

2116 mm | 83.27 in

Total width

1898 mm | 74.73 in

Min height

1066 mm | 41.95 in

Power requirements

Power supply requirements

400 VAC Three Phases

Average Power (kVA)

13 kVA

Peak Power (kVA)

27 kVA

Peak Current (A)

23 A

Average Power - stress test (kW)

8.5 kW

Average Power - typical game (kW)

4 kW

Connection

USB | Ethernet

PRODUCT CARDPRODUCT CARD

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB400

Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller.  Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

€ 4500.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT
PS-SB400-P3

ELECTROMAGNETIC SAFETY BRAKES

One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).

€ 1900.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

ADD-ONS & ACCESSORIES

POWER CABINET

PS-SB400

PS-SB400-P3

Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.

It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller.  Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.

€ 4500.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

ELECTROMAGNETIC SAFETY BRAKES

One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).

€ 1900.00 (tax and duty not incl.)

ASK ABOUT PRODUCTASK ABOUT PRODUCT

SOFTWARE BASICS

To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.

If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.

ForceSeatMI supports

  • Windows

ForceSeatDI supports

  • Windows
  • Raspberry Pi
  • Linux

Both SDK's support*

  • Unity
  • Unreal Engine
  • Matlab & Simulink
  • C/C++/C#
  • Python

*Support for Motion Platforms can be added if UE4/Unity application is possible to modify.
