Description
PLATFORM HIGHLIGHTS
3
ARCHITECTURE
550
PAYLOAD
61
MIN HEIGHT
390
WEIGHT
PS-3TM-550
KEY FEATURES
Movement repeatability
High ability to generate vibrations and incredible movement repeatability
Compact design
Small footprint and lightweight body
Safety
Safe mechanical design resistant to electronic failures. Safety Integrity Level up to 3
Software support
Control all our motion platforms using one of ours SDK
Unleashed performance
Impressive dynamics and performance
Super Silent
Extremely quiet and smooth operation
VR technology
All our motion platforms work in VR environment
Warranty
Global technical support and gear lifetime up to 10 years of operation
MOTION PLATFORM PS-3TM-550
INCREDIBLE MOVEMENT REPEATABILITY
The PS-3TM-550 motion platform is middleweight champion in the 3DoF products family. Motion system was designed for most heavy duty load application where customer requires reliability up to 100 000 working hours. This gives us possiblity of offering service support in machine full life cycle up to 10 years. Used drive technology makes this motion platform one of the most silent solution avaliable on the market.
Customers appreciate this motion platform for its reliability, compact design and impressive movement repeatability. The proven and balanced design allows PS-3TM-550 to work flawlessly in the most difficult systems.
- platforms are suitable for small size open cabin land, speed boat or flight simulators
- platforms are suitable for small and medium size land, speed boat or flight simulators
- small size full cockpit simulation systems
- vehicle training simulators for up to 2 people
- small and medium size military training simulators for up to 2 people
- small and medium size mining equipment simulators
- entertainment simulators up to 2 people
- virtual reality up to 4 people
GENERAL SPECIFICATION
System performance
EXCURSIONS
Velocity
Acceleration
SINGLE DOF
NON-SINGLE DOF
Heave
SINGLE DOF
-0.13, 0.17 m
-5.12, 6.69 in
NON-SINGLE DOF
-0.13, 0.17 m
-5.12, 6.69 in
Velocity
0.3 m/s
11.8 in/s
Acceleration
3 m/s²
0.3 g
Roll
SINGLE DOF
± 17.2°
NON-SINGLE DOF
-20.1°, 20.1°
Velocity
45°/s
Acceleration
420°/s²
Pitch
SINGLE DOF
-14.8°, 17.4°
NON-SINGLE DOF
-22.5°, 24.8°
Velocity
45°/s
Acceleration
500°/s²
Payload specification
Payload
550 kg | 1213 lb
Product weight
390 kg | 860 lb
Main dimensions
Total width
1444 mm | 56.8 in
MIN HEIGHT
610 mm | 24.4 in
Total length
1554 mm | 61.2 in
Power requirements
Power supply requirements
200-250 VAC Single Phase
Average Power (Watts)
1426 W
Average Power (VA)
2258 VA
Peak Power (VA)
5273 VA
Peak Power (Amps)
22 A
Connection
USB | Ethernet
ADD-ONS & ACCESSORIES
POWER CABINET

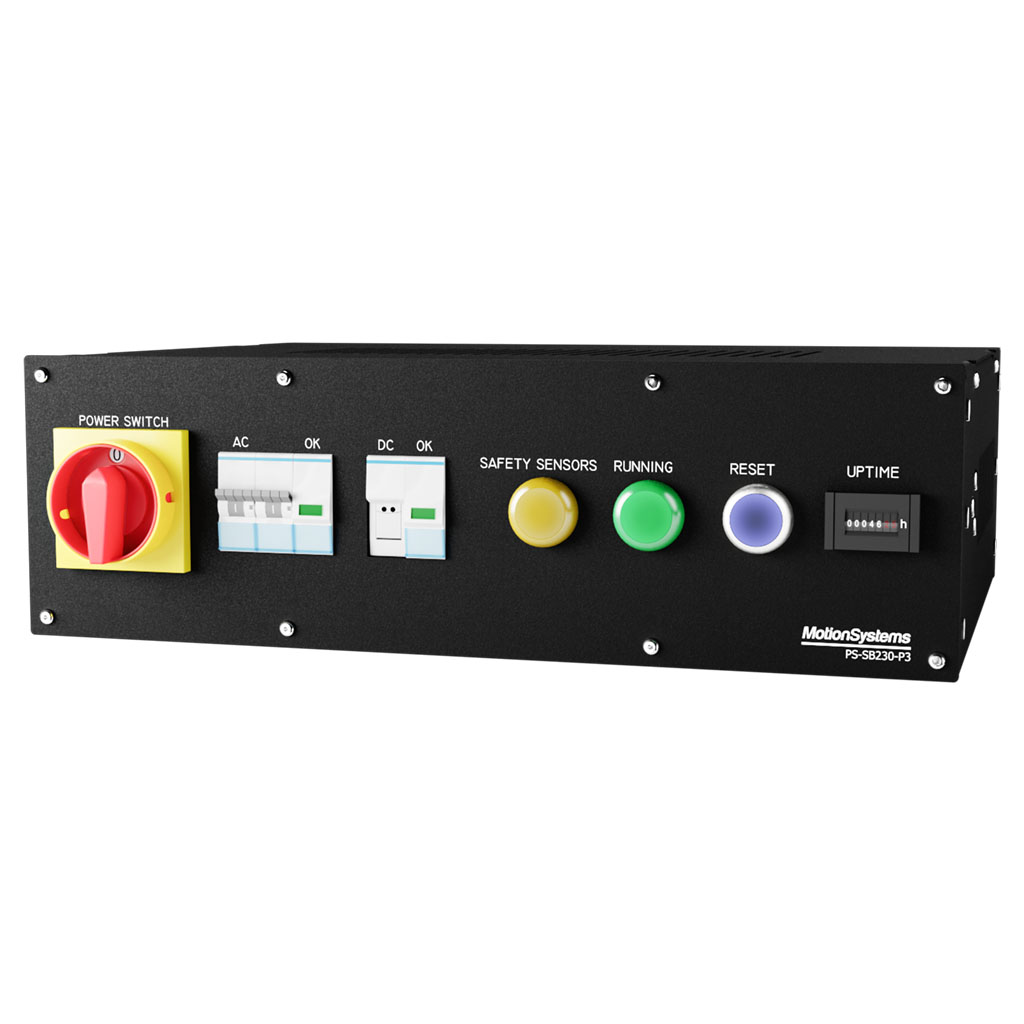

PS-SB230-P3
Power cabinets PS-SB230-P3 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
€ 3900.00 (tax and duty not incl.)
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
€ 600.00 (tax and duty not incl.)
WHEELS AND FEET
One set of wheels and feet dedicated for transport and platform stabilization on the floor. Motion platform anchoring is not required.
€ 600.00 (tax and duty not incl.)

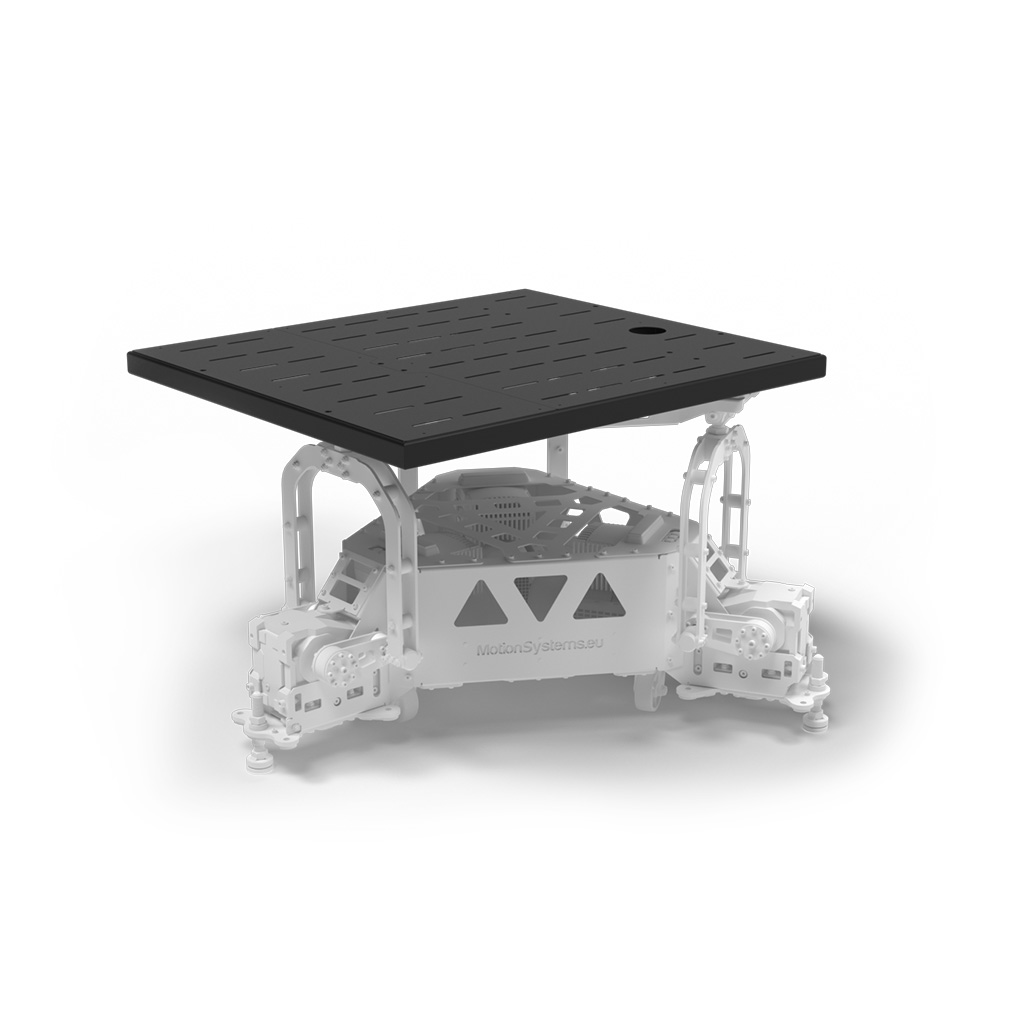

EXTENDED TOP FRAME
Extended rig (top frame) with multiple assembly holes and brackets for direct mounting of the seat or cabin.
€ 1900.00 (tax and duty not incl.)
ADD-ONS & ACCESSORIES
POWER CABINET
PS-SB230
Power cabinets PS-SB230 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
€ 3900.00 (tax and duty not incl.)
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
€ 600.00 (tax and duty not incl.)
WHEELS AND FEET
One set of wheels and feet dedicated for transport and platform stabilization on the floor. Motion platform anchoring is not required.
€ 600.00 (tax and duty not incl.)
EXTENDED TOP FRAME
Extended rig (top frame) with multiple assembly holes and brackets for direct mounting of the seat or cabin.
€ 1900.00 (tax and duty not incl.)
EXAMPLE OF IMPLEMENTATION

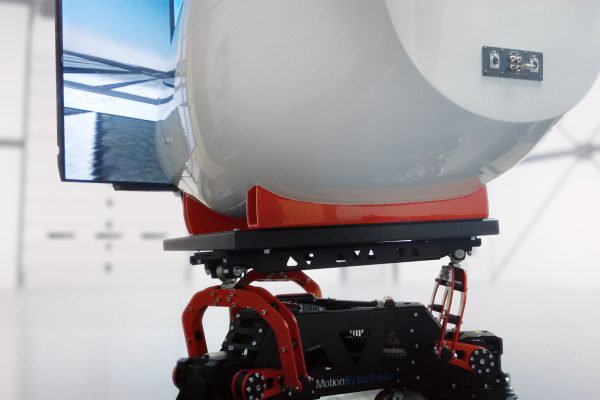

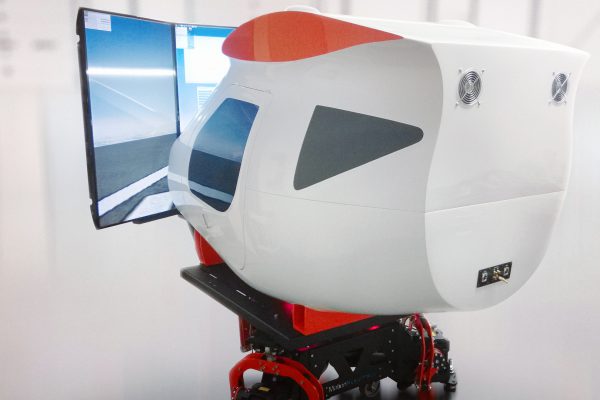

3DOF PROFESSIONAL FLIGHT SIMULATOR TRAINER DEVELOPED IN COLLABORATION WITH THE BOT-AIRCRAFT COMPANY
SOFTWARE BASICS
To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.
If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.
ForceSeatMI supports
- Windows
ForceSeatDI supports
- Windows
- Raspberry Pi
- Linux
Both SDK's support*
- Unity
- Unreal Engine
- Matlab & Simulink
- C/C++/C#
- Python
