Description
PLATFORM HIGHLIGHTS
3
ARCHITECTURE
8
LATENCY
1000
MAXIMUM CONTROL FREQUENCY
100
ACTUATOR STROKE
KEY FEATURES
Real time vibration
Based on patent pending linear actuators technology
Compact Design
Small footprint and lightweight body
Modular and reconfigurable
Quick integration with external actuators set from 2 to 3 DOF
Plug&Play
Ready to work in few minutes
Software support
Control all our motion platforms using one of ours SDK
VR technology
Full and native hardware and software integration with the VR headset

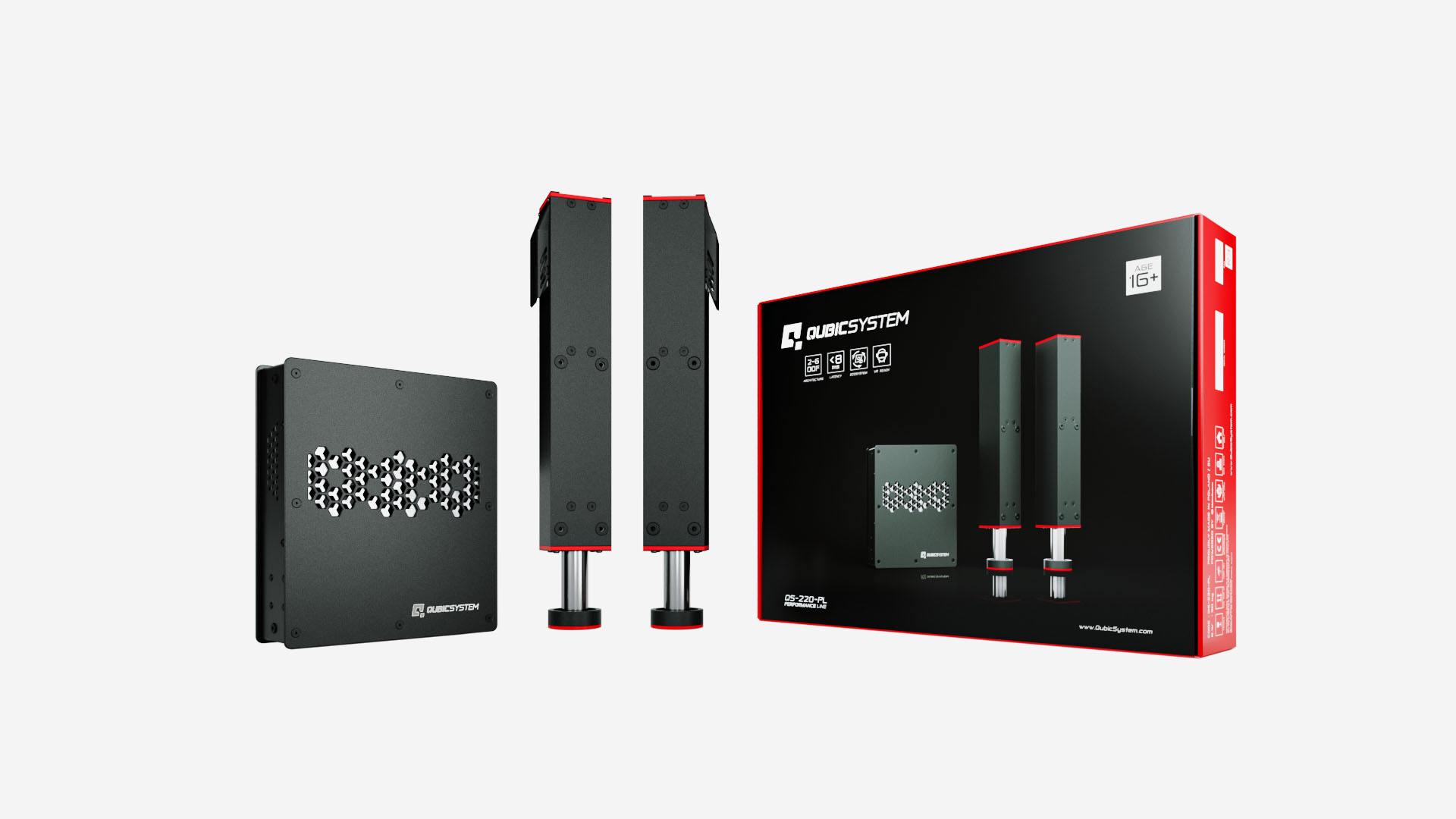

LINEAR ACTUATORS SET QS-220

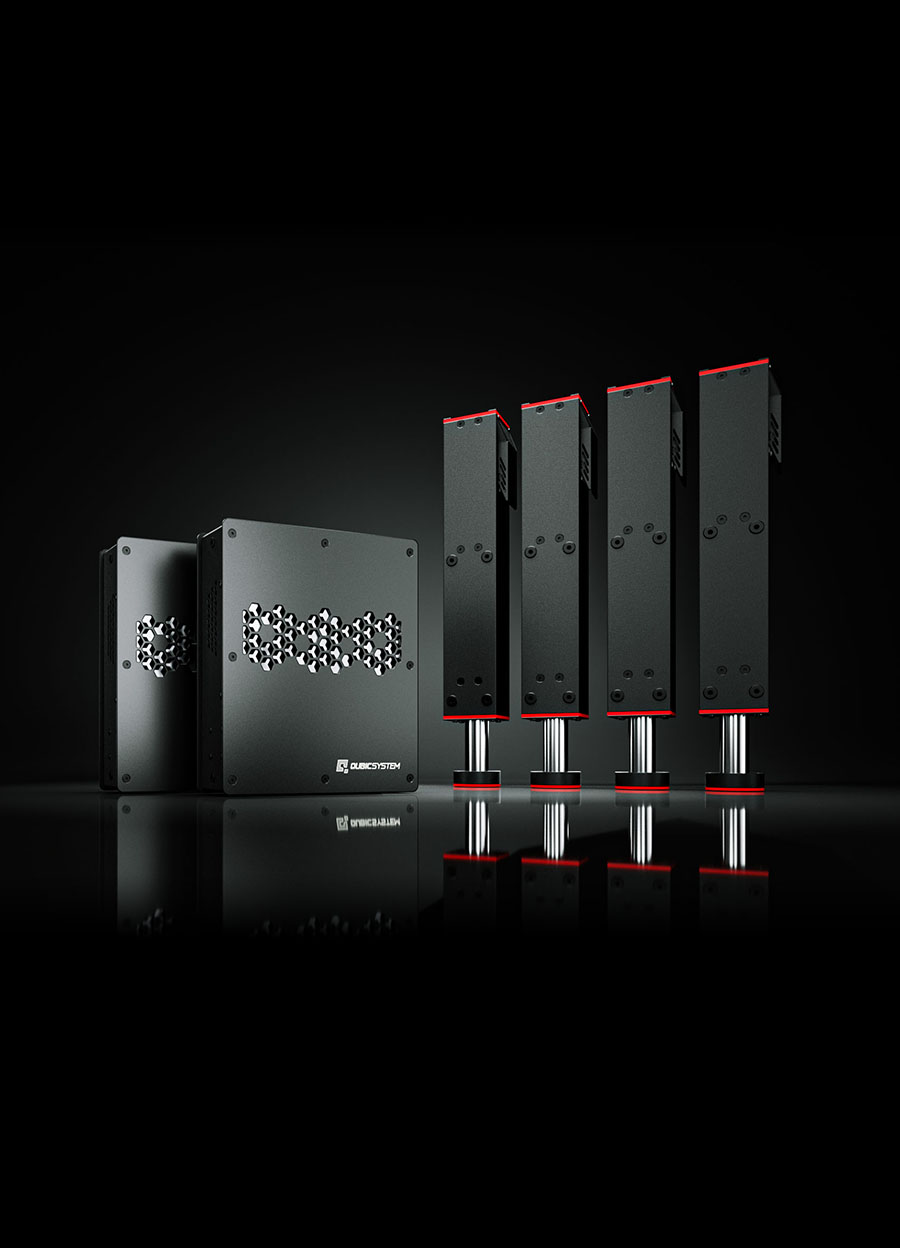

Patent pending linear actuators technology, modular and compact design, as well as the extremely quiet operation makes the QS-220 as a perfect motion base for professional application in various types of cockpits. The QS-220 3DOF motion set consisting of 4 actuators, 2 power cabinets and motion controller (QS-MC6). QS-220 3DOF motion system is fully compatible with the most popular aluminum based cockpits available on the global market.
Maximum velocity
800 mm/s
Maximum acceleration
0.8 G
Actuator stroke
100 mm
Latency
<8 ms
Maximum control frequency
1000 Hz
Vibration frequency range
0-100 Hz
VIDEO REVIEWS
LINEAR ACTUATORS SET QS-220
Patent pending linear actuators technology, modular and compact design, as well as the extremely quiet operation makes the QS-220 as a perfect motion base for professional application in various types of cockpits. The QS-220 3DOF motion set consisting of 4 actuators, 2 power cabinets and motion controller (QS-MC6). QS-220 3DOF motion system is fully compatible with the most popular aluminum based cockpits available on the global market.
Maximum velocity
800 mm/s
Maximum acceleration
0.8 G
Actuator stroke
100 mm
Latency
<8 ms
Maximum control frequency
1000 Hz
Vibration frequency range
0-100 Hz
USE-CASE EXAMPLE
The QS-220 motion set is also intended for flight simulation where the high frequency, real time vibrations are needed.
- Flight training simulators VR and on screen visualisation
- Helicopter and aircraft simulators
- F16, F18 fighter cockpits
MOTION PLATFORM FOR FLIGHT SIMULATION
Incredible platform feedback to the pilot and vibartions allows to feel exactly what the machine is doing in a real time. The 3DOF configuration is dedicated to all pilots who expect the most realistic and precise simulation.
USE-CASE EXAMPLE
The QS-220 motion set is mainly intended for training applications. This motion system is a perfect base for flight cockpits using for pilots vr training.
- Commercial flight simulators
- Home use flight simulators
- Training simulators for students
- Virtual reality simulators for entertainment
MOTION PLATFORM FOR DRIVING SIMULATION
QS-220 is a modular and configurable motion system dedicated for special training applications. World’s fastest linear actuators with 800 mm/s velocity and maximum reduced of latency 8ms, gives possibility to build ready-to-go simulators for ground, sea and aircraft systems operators.
USE-CASE EXAMPLE
The QS-220 motion set is mainly intended for professionals as well as racing applications where reduced latency and maximum velocity are required.
- Ground vehicle simulators
- Driving simulators
- Simracing motion cockcpits
- Virtual reality simulators for entertainment
- Forklift simulators
APPLICATION NOTE
The QS-220 consists of four linear actuators, two power cabinets and the compact control unit. This motion system can be easly extended to 4-6DOF configuration. The new generation of electrical cabinet is equipped with proprietary design electronics and software.
ADD-ONS & ACCESSORIES
QS-BRACKET
Qubic System is not only a motion platforms, it’s also a wide range of sim accessories. The universal brackets for Qubic System actuators and 3rd party racing cockpits. The QS-Brackets have a hole spacing suited to the most popular simracing cockpits available on the market.
€ 80.00 (tax and duty not incl.)
ADD-ONS & ACCESSORIES
QS-BRACKET
Qubic System is not only a motion platforms, it’s also a wide range of sim accessories. The universal brackets for Qubic System actuators and 3rd party racing cockpits. The QS-Brackets have a hole spacing suited to the most popular simracing cockpits available on the market.
€ 80.00 (tax and duty not incl.)
SOFTWARE BASICS
To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.
If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.
ForceSeatMI supports
- Windows
ForceSeatDI supports
- Windows
- Raspberry Pi
- Linux
Both SDK's support*
- Unity
- Unreal Engine
- Matlab & Simulink
- C/C++/C#
- Python
