Description
PLATFORM HIGHLIGHTS
6
ARCHITECTURE
1500
PAYLOAD
83
MIN HEIGHT
1145
WEIGHT
13
MAX POWER CONSUMPTION
PS-6TM-1500
6
ARCHITECTURE
1500
PAYLOAD
83
MIN HEIGHT
1145
WEIGHT
13
MAX POWER CONSUMPTION
KEY FEATURES
Resistant to overload
Good resistance to momentary overload resulting from dynamic change in mass distribution
Easy to transport
Modular design enabling transportation and assembly on site from the main components
Precision in movement repeatability
High ability to generate vibrations and incredible movement repeatability
Unleashed performance
Impressive dynamics and high performance
Software support
Control all our motion platforms using one of ours SDK
VR technology
All our motion platforms work in VR environment
Super Silent
Extremely quiet and smooth operation
Warranty
Global technical support and gear lifetime up to 10 years of operation
MOTION PLATFORM PS-6TM-1500
DEDICATED FOR 0.4G SIMULATORS
The motion platform is dedicated for 0.4G simulators, where the fully equipped cabin is mounting directly on upper frame.
PS-6TM-1500 motion system is chosen by customers, thanks to its ease of installation, super silent operation, good resistance to momentary overloads and reduced deployment time. All our motion platforms are supported by our Platform Manager software and they are easy to implemented in the most advanced projects.
- big size cabin simulation systems with visualization – land, speed boats and flight simulators
- vehicle training simulators for up to 4 people – car, truck, railway and bus simulators
- medium size military training simulators for up to 4 people
- medium size mining equipment simulators
- certified full mission simulation system with full cockpit and visualisation system
- full squad training simulation systems with free trainee movement
- testing and verification application for full vehicle configuration
- high load entertainment systems for up to 6 people
- virtual reality applications up to 8 people
- SFX production using serial vehicles up to 1000 kg
- SFX production with specially prepared vehicles up to 1500 kg
GENERAL SPECIFICATION
System performance
EXCURSIONS
SINGLE DOF
NON-SINGLE DOF
VELOCITY
ACCELERATION
Surge
SINGLE DOF
-0.21 m, 0.22 m
-8.27 in, 8.66 in
NON-SINGLE DOF
-0.24 m, 0.24 m
-9.45 in, 9.45 in
VELOCITY
± 0.3 m/s
ACCELERATION
± 6m/s2
Sway
SINGLE DOF
-0.20 m, 0.20 m
-7.87 in, 7.87 in
NON-SINGLE DOF
-0.24 m, 0.24 m
-9.45 in, 9.45 in
VELOCITY
± 0.3 m/s
ACCELERATION
± 6m/s2
Heave
SINGLE DOF
-0.14 m, 0.18 m
-5.51 in, 7.09 in
NON-SINGLE DOF
-0.16 m, 0.16 m
-6.3 in, 6.3 in
VELOCITY
± 0.3 m/s
ACCELERATION
± 4m/s2
Roll
SINGLE DOF
-20.3°, 20.3°
NON-SINGLE DOF
-22.0°, 22.0°
VELOCITY
± 35 °/s
ACCELERATION
± 250 °/s2
Pitch
SINGLE DOF
-19.7°, 18.2°
NON-SINGLE DOF
-25.0°, 24.8°
VELOCITY
± 35 °/s
ACCELERATION
± 250 °/s2
Yaw
SINGLE DOF
-22.0°, 22.0°
NON-SINGLE DOF
-24.0°, 24.0°
VELOCITY
± 35 °/s
ACCELERATION
± 250 °/s2
Payload specification
Payload
1500 kg | 3307 lb
Center of Gravity height above Motion Platform Centroid
750 mm | 29.5 in
Moments of intertia
1500 kg x m2
Product weight
1145 kg | 2524 lb

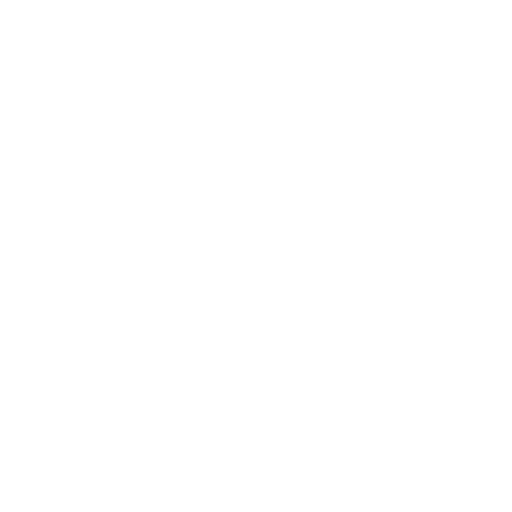

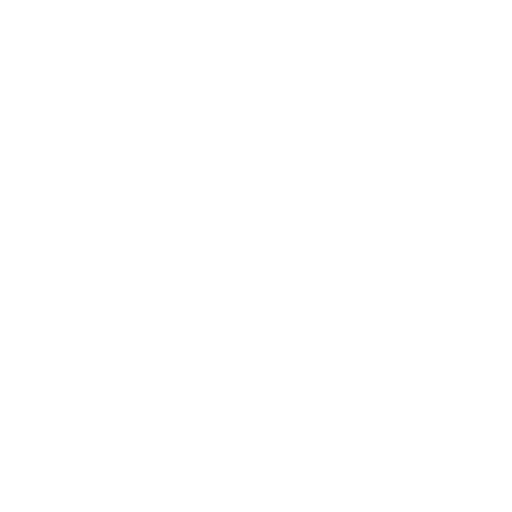

Main dimensions
Total width
2213.4 mm | 87,1 in
MIN height
830 mm | 32,7 in
Total length
2530.5 mm | 99,6 in
Power requirements
Average Power [kVA]
19 kVA
Peak Power [kVA]
51 kVA
Peak Current [A]
42 A
Average Power - stress test - [kW]
11 kW
Average Power - typical game - [kW]
4 kW
Power supply requirements
400 VAC Three Phases
Connection
USB | Ethernet
ADD-ONS & ACCESSORIES
POWER CABINET
PS-SB400
Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
€ 4500.00 (tax and duty not incl.)
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
€ 1900.00 (tax and duty not incl.)
ADD-ONS & ACCESSORIES
POWER CABINET
PS-SB400
Power cabinets PS-SB400 are integrated continuous power supply solutions for all our motion platforms. New generation of electrical cabinet is equipped with proprietary design electronics and software. The switch box is responsible for power distribution and acts as safety and control device.
It contains AC and DC fuses and handles remote safety switches also provides power to inverters and motion controller. Design of cabinets allows users to achieve security measures CL class up to SIL(Safety Integrity Level) 3 if required. Additional remote control unit is provided for operator convenience and safety. It allows to start the motion platform, park and stop it immediately in case of emergency situation.
€ 4500.00 (tax and duty not incl.)
ELECTROMAGNETIC SAFETY BRAKES
One set of electromagnetic safety brakes is a protection feature incorporated into our motion platforms. The product is necessary part of motion platforms power supplying set and enables maintaining appropriate SIL (Safety Integrity Level).
€ 1900.00 (tax and duty not incl.)
SOFTWARE BASICS
To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.
If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.
ForceSeatMI supports
- Windows
ForceSeatDI supports
- Windows
- Raspberry Pi
- Linux
Both SDK's support*
- Unity
- Unreal Engine
- Matlab & Simulink
- C/C++/C#
- Python
