RCM-C420

Ask for price

RCM (Reconfigurable Cockpit Module) is a modular, flexible and cost effective training product dedicated for special applications. Its design is based on RVCT (Reconfigurable Virtual Collective Trainer).

Category: Tags: , , , , ,

Description

MIL SERIES

RCM-C420

RECONFIGURABLE COCKPIT MODULE

ASK ABOUT PRODUCTASK ABOUT PRODUCT

PRODUCT HIGHLIGHTS

3

ARCHITECTURE

160

TOTAL LENGTH

71

TOTAL WIDTH

200

PAYLOAD

KEY FEATURES

Easy to transport

Dedicated wheel system, folded for transport

Plug&Play

Ready to work in few minutes

Modular and Reconfigurable

Quickly integration with external motion simulation system
from 3 to 6 DOF

Software support

Delivered with software management package and plugins. Simulation software support

VR technology

Full and native hardware and software integration with the VR headset

Compact design

Small footprint and lightweight body

Add-ons & Accessories

Possibility of using dedicated manipulators and accessories

Wide range of motion

Linear actuators with slide up to 100 mm

RCM-C420

RECONFIGURABLE COCKPIT MODULE

RCM-C420 (Reconfigurable Cockpit Module) is a modular and flexibly configurable training product dedicated for special applications. RCM is a part of the military equipment of the MIL Motion Systems series. By using a number of expansion accessories, including manipulators and dedicated peripherals, it is possible to quickly build function positions for ground, sea and aircraft systems operators. RCM design is based on RVCT requirements (Reconfigurable Virtual Collective Trainer) developed and described by US Military.

COMPACT DESIGN

Motion Platform RCM-C420

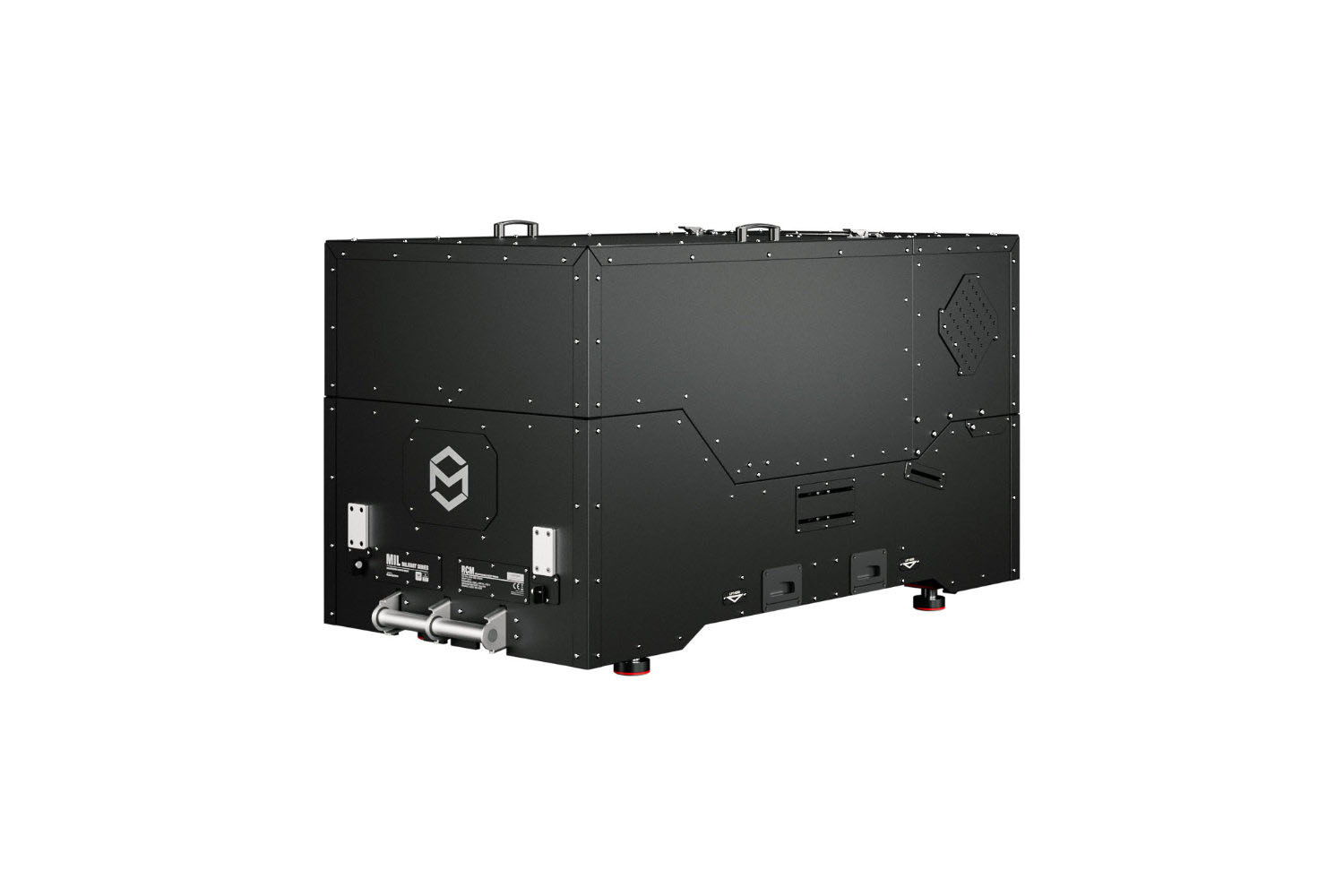

The RCM-C420 was designed so that the entire set can be transported comfortably and safely. In addition, the width of the box has been adjusted to fit the door width of 90 cm which makes transportation much easier.

ASK ABOUT PRODUCTASK ABOUT PRODUCT
Motion Platform RCM-C420

EASY TO TRANSPORT

A dedicated transport wheel system allows to quickly and safely change training locations or reposition RCM modules in the training room.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

TRACKED AND WHEELED VEHICLE SIMULATION

RCM module is used in Academy of Land Forces in Wroclaw. Product implementation has opened new opportunities for instructors already using the battle laboratory application for cadets training. Modularity of RCM unit, native VBS3, VBS4 support and dynamic motion systems allows instructor to change RCM equipment training set and use it for both tracked and wheeled vehicle simulation.

For example, combination of 3 RCM units offers possibility of training for variety of land tracked and wheeled vehicles. In combination with computers in battle lab, system can be used in scenarios dedicated for both specialist and tactical training.

DRIVER

Motion Platform RCM-C420

The user has access to the driver’s panel, where he can see information about the vehicle’s location, speed, fuel level and the vehicle condition. The driver can also use the navigation function to find the best route and avoid the obstacles.

ASK ABOUT PRODUCTASK ABOUT PRODUCT
Motion Platform RCM-C420
Motion Platform RCM-C420

GUNNER

Motion Platform RCM-C420

The trainee has access to the gunner’s panel, where he can see information about the vehicle’s armament, its range and how to operate it. The gunner can also use the targeting system to detect and takes aim at targets or coordinate fire with other team members.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

COMMANDER

Motion Platform RCM-C420

The user has access to the commander’s panel, where he can see information about the position and status of vehicles and units in the team. The commander can also assign tasks to individual team members and communicate with other units to carry out orders and reports.

ASK ABOUT PRODUCTASK ABOUT PRODUCT
Motion Platform RCM-C420

DEDICATED PLUGINS FOR VBS3 & VBS4

TRAINING SYSTEM FOR ADVANCED, EFFECTIVE AND FLEXIBLE TRAINING IN ANY LOCATION

RCM-420 is fully equipped and offers of number simulation software including Virtual Battlespace VBS3, VBS4. Product offers flexibility, encouraging the user to adopt its training hardware according to its fast changing needs.

Applications examples:

  •  VR and on screen virtual training applications
  • cross domain tactical and specialist training
  • driver, gunner, commander applications military vehicle simulators
  • more about RCM-C420 applications: https://motionsystems.eu/customer-showcase/

GENERAL SPECIFICATION

System performance

HEAVE

75 mm | 2,95 in

PITCH

-5°, 5°

ROLL

-7.0°, 7.0°

Payload specification

Payload

200 kg | 441 lb

Main dimensions

Total width

710 mm | 28 in

Total height

790 mm | 31 in

Total length

1600 mm | 63 in

Power requirements

Power Supply Requirements

120/230 VAC Single Phase

Avarage power consumption (120 V power supply) [W]

462W

Peak current for breaker specification [A]

9,89A

Avarage power consumption (230 V power supply) [W]

436W

Peak current for breaker specification [A]

9,89A

Peak current for breaker specification

9,89A / 5,88A

ADD-ONS & ACCESSORIES

REGARDLESS OF YOUR NEEDS, YOU CAN CREATE YOUR OWN MODULE CONFIGURATION BY ATTACHING ADDITIONAL ACCESSORIES AT ANY PLACE

Vast range of dedicated accessories for RCM-C420 allows to extend unit functionality or expand module in the future, depend of your training needs.

  • additional left and right side screens
  • backwards touch screen- left and right side
  • control column
  • steering wheel
  • brake
  • pedals
  • additional manipulators (made by AVF SIM)
  • radio controller with programmable touch screen
  • built-in headphones and USB slots
  • folding transport wheels
  • VR goggles holder
  • headphones holder
  • securing clip for signal and power cables
  • mounting bracket for a wireless keyboard
  • and many other options for mounting accessories from various brands
