Description
KEY FEATURES
Easy to transport
Modular design enabling transportation and assembly on site from the main components
Add-ons & Accessories
Possibility of using dedicated manipulators and accessories
Modular and Reconfigurable
Easy to adopt to 3rd party cockpits
VR technology
Full VR technology support
Unleashed performance
Impressive dynamics and high performance
Highest quality
Built of industrial grade components
Multifunctional
Flexible and universal unit for many various purposes
Software support
Compatible with all major racing and flight titles on PC with simple USB plug in

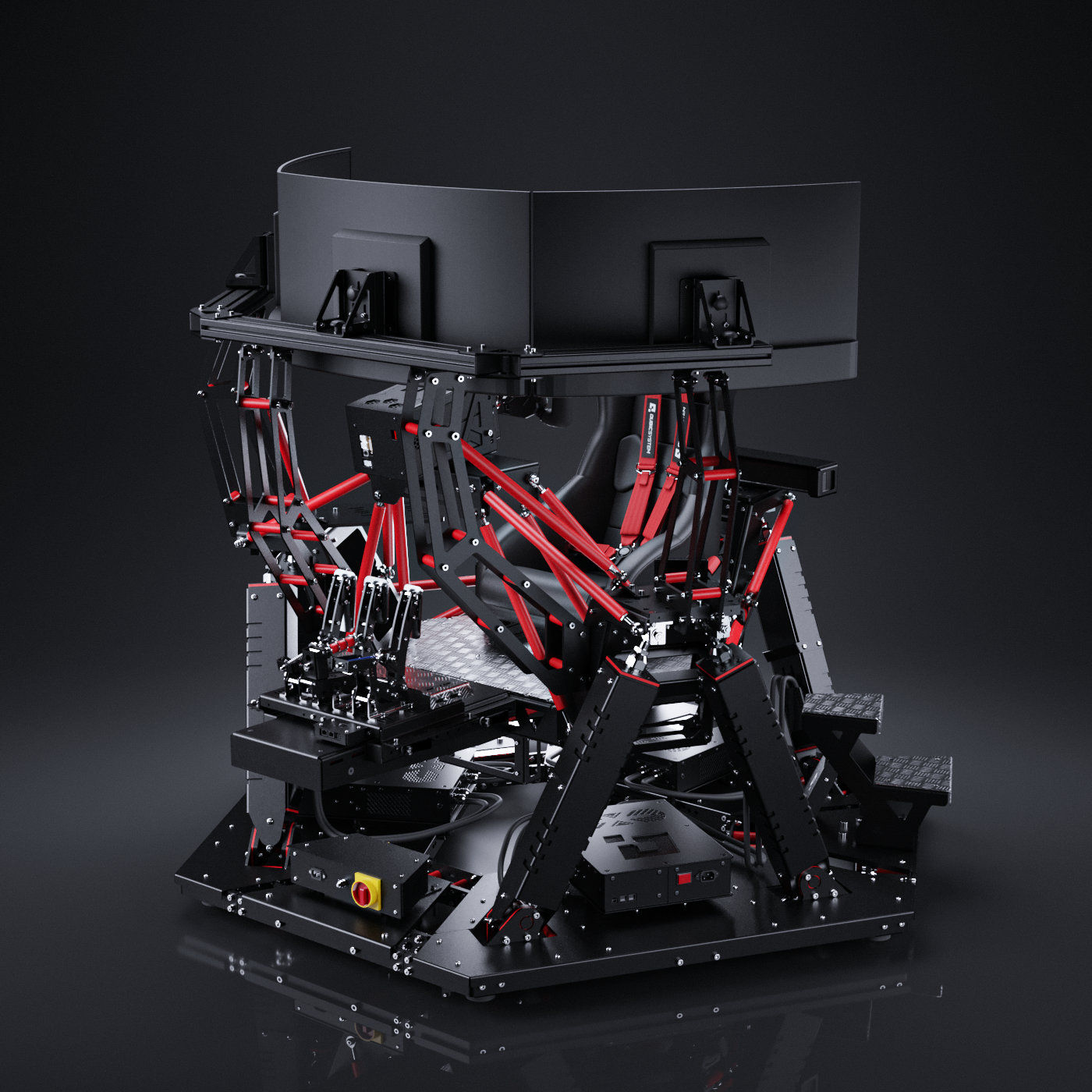

MOTION PLATFORM QS-S25
6DOF “SPIDER”
Spider is designed for customers looking for the most realistic simulation. The unique combination of professional motion technology and modern, adjustable accessories allows users to train and experience real flight or racing simulation.
The motion platform uses its 6 degrees of freedom (surge, sway, heave roll, pitch, and yaw) to feed precise motion inputs that very accurately represent key sensations such as understeer, traction loss, lateral g-force inputs, braking. Machine gives the best feeling of the track – bumps, curbs, gravel or grass. QS-S25 motion platform- advanced linear system is chosen also by militaries and universities as a training tool for various projects.
NEW BENCHMARK IN MOTION SIMULATION EXPERIENCE
MOTION SYSTEM BENEFITS
6DoF motion system based on patent pending linear actuators technology has been refreshed with several additional functionalities:
- comfortable and ergonomic position for the driver/pilot
- the latest generation of Qubic System linear actuators – very quiet and precise operation
- motion and vibrations that perfectly reflect the situations in the selected game or simulation application
- full support of the proprietary ForceSeatPM software – free of charge
- more compact design and small footprint fits to the medium size gaming rooms, VR centers, and training facilities
- more responsive and fast-moving way to push telemetry data form simulation to the hardware
HIGH PRECISION AND GREAT DYNAMIC
ENDLESS POSSIBILITIES
Dedicated set of high precision and great dynamic linear actuators allows to adapt the device to requires of entertainment industry.
- quad bike driving simulator
- jet ski simulator
- karting simulator
- bobsleigh ride simulation
- ski jumping simulation
- bike riding simulation
- rafting simulation
- horse riding simulation
- bathyscaphe simulator
- city car driving simulator
- gunner simulator
- glider plane simulator – VR headset option available
REAL RACE AND ULTIMATE FLIGHTS
MADE WITH PASSION
The product can be used for home application or as entry level for any professional simulation system.

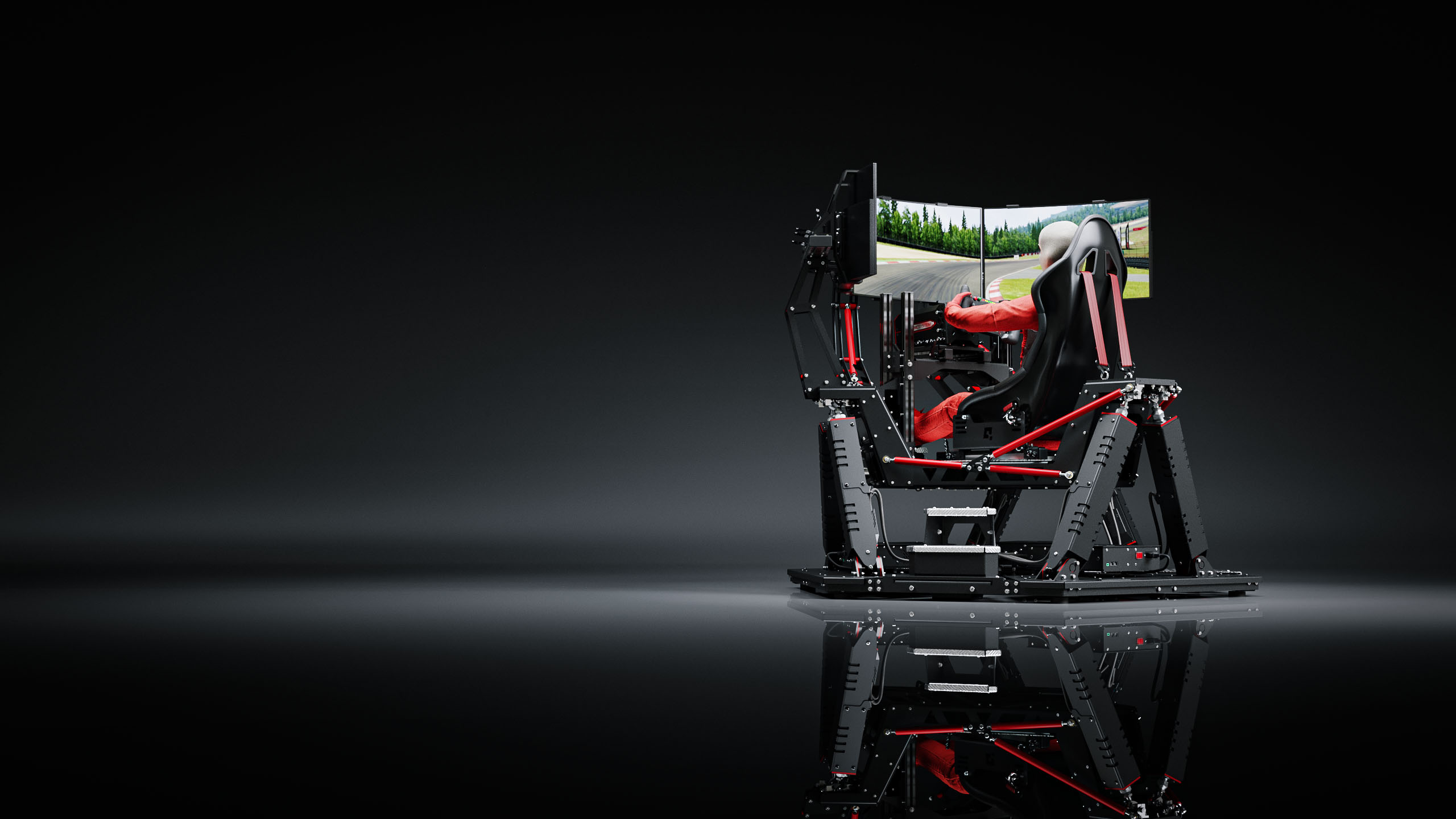

- car driving simulator – two seats, front screen, two side screens, VR headset option available
- truck driving simulator
- forklift simulator
- reach stacker simulator
- crane simulator
- railway simulator
- F1 or GT simulator
- helicopter simulator – VR headset or on screen option available
- airplane simulator – VR headset or on screen option available
ADD-ONS & ACCESSORIES
Wide range of dedicated accessories for QS-S25 allows to extend unit functionality or change configurations.
QS-S25 motion system (6DOF):
- 3 x QS-220-PL motion set
- Dedicated upper and bottom frame
- Power connector hub
- Motion controller and motion lock
- Set of Wheels For Transport
- License: Qubic Manager/ForceSeatPM
QS-S25 cockpit set:
- Upper Frame Floor With Attaching Points
- Set of Rods - Both Sides
- Step
- Set of eye nuts for seat belts
- Mounting Bracket: Steering Wheel two types
- Mounting Bracket: Pedals
- Mounting Bracket: Racing Seat
- Mounting Bracket: Desk with Attaching Points
- Mounting Bracket: VR Headset Headphones
- Mounting Bracket: Keyboard
- Mounting Bracket: Speakers
- Racing Seat Adjustment
Mounting Brackets: 3x monitor (32", VESA 100x100)
Racing Seat
4 Point Safety Seat Belt
*Price €25,100.00 does not include tax (VAT), customs duty and transportation costs. Price refers to QS-S25 set of motion platform only. Price does not contain peripherals like: PC computer, manipulators, game or simulation software, add-ons, accessories and mounting brackets. The information contained in this web page does not constitute an offer in the meaning of the Civil Code of 23rd April 1964.
GENERAL SPECIFICATION
Technical specification for current version of QS-S25 with 10 cm actuators stroke
System performance*
*the data refers to performance mode
EXCURSIONS
Velocity
Acceleration
Surge
EXCURSIONS
-139.3 , 115.4 mm
Velocity
1250 mm/s
Acceleration
LIMITED TO 1G*
Sway
EXCURSIONS
-114.8, 114.8 mm
Velocity
1000 mm/s
Acceleration
LIMITED TO 1G*
Heave
EXCURSIONS
-54.3, 53.8 mm
Velocity
350 mm/s
Acceleration
LIMITED TO 0.5G*
Roll
EXCURSIONS
-5.0°, 5.0°
Velocity
40°/s
Acceleration
LIMITED TO 500°/s²*
Pitch
EXCURSIONS
-4.6°, 4.6°
Velocity
40°/s
Acceleration
LIMITED TO 500°/s²*
Yaw
EXCURSIONS
-9.8°, 9.8°
Velocity
100°/s
Acceleration
LIMITED TO 1000°/s²*
*value of acceleration is limited for safety reasons.
Payload specification
Payload (heavy duty mode)
Payload (performance mode)
250 kg | 551 lb
150 kg | 330,69 lb
Product weight
350 kg | 772 lb
Main dimensions
Diameter
1850 mm | 73 in
Total width
1603 mm | 63 in
MIN height
769 mm | 30 in
Power requirements
120 V
230 V
Average Power [kVA]
0.9 kVA
1.3 kVA
Peak Power [kVA]
1.5 kVA
2.4 kVA
Peak Current [A]
13 A
11 A
Average Power - Stress Test [kW]
0.45 kW
0.46 kW
Average Power - Typical Game [kW]
0.24 kW
0.2 kW
PRODUCT VIDEO
SOFTWARE BASICS
To every Motion Platform purchase The Platform Manager software is added without a charge. This applies to all Motion Platforms available. This application allows to: use motion platforms with supported games, perform diagnostic, monitor motion platforms operation, update firmware, compensate head movements thanks to VR HeadWay included and use SDK - ForceSeatMI to connect it to your custom applications. Moreover all our motion platforms work with VR technology and software is constatnly updated.
If you are interested in connecting your own custom applications or using motion platforms with computers on different system than Windows please make yourself familiar with SDKs.
ForceSeatMI supports
- Windows
ForceSeatDI supports
- Windows
- Raspberry Pi
- Linux
Both SDK's support*
- Unity
- Unreal Engine
- Matlab & Simulink
- C/C++/C#
- Python
