QS-CH1 is a brand new, modular, and flexible motion system dedicated for land vehicles and city car driving simulators.

Categories: , , Tags: , ,

Description

QS-CH1
QUBIC SYSTEM
*tax and duty not incl.
€ 12 320 *
ASK ABOUT PRODUCT
MOTION CHASSIS

QS-CH1

QUBIC SERIES

KEY FEATURES

Easy for transport

Euro 2 pallet dimension 1200 mm x 800 mm

Real-Time Vibrations

Generate precise real-time vibrations up to 100 Hz

Plug&Play

Ready to work in few minutes

Super silent

Extremely quiet and smooth operation

Low power consumption

High performance devices with minimal power budget

Compact design

Small footprint and lightweight body

VR technology

Full and native hardware and software integration with the VR headset

Software support

Delivered with software management package and plugins. Simulation software support

PROFESSIONAL VEHICLE TRAINING SYSTEM

QS-CH1 is a brand new, modular, and flexible motion system dedicated to land vehicles and city car driving simulation. Motion rig is a part of the Qubic System product's series. This product consists of 3DoF motion platform that provides cues for vehicle acceleration, road curvature and obstacles such as sidewalks and potholes.

Motion Chassis QS-CH1

PROFESSIONAL VEHICLE TRAINING SYSTEM

Motion Chassis QS-CH1

QS-CH1 is a brand new, modular, and flexible motion system dedicated to land vehicles and city car driving simulation. Motion rig is a part of the Qubic System product's series. This product consists of 3DoF motion platform that provides cues for vehicle acceleration, road curvature and obstacles such as sidewalks and potholes.

ENHANCED IMMERSIVE EXPERIENCE

Immersion in the virtual world is obviously the key to training effectiveness. Also the combination of linear actuators and lightweight floor with the simple assembly of various cockpits allows for fast adaptation. What’s more QS-CH1 motion system includes 4 electrical actuators, dedicated power cabinets with a special place for its installation under the cockpit and accessories for mounting the car seat, steering wheel, hand break and pedals.

Motion Chassis QS-CH1

ENHANCED IMMERSIVE EXPERIENCE

Motion Chassis QS-CH1

Immersion in the virtual world is obviously the key to training effectiveness. Also the combination of linear actuators and lightweight floor with the simple assembly of various cockpits allows for fast adaptation. What’s more QS-CH1 motion system includes 4 electrical actuators, dedicated power cabinets with a special place for its installation under the cockpit and accessories for mounting the car seat, steering wheel, hand break and pedals.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

QUALITY AND FUNCTION

In essence this motion system is the perfect solution for everyone who is looking for the most realistic simulation and reasonable, easy-to-use motion platform. System needs only 1.5 square meter place, and it is ideal for projects where the key is to reproduce the ergonomics of the original vehicle within a compact and mobile form. Moreover power cabinets are located in the lower part of the platform, under the cockpit, which significantly reduces the usable space and improves safety.

Motion Chassis QS-CH1

QUALITY AND FUNCTION

Motion Chassis QS-CH1

in essence this motion system is the perfect solution for everyone who is looking for the most realistic simulation and reasonable, easy-to-use motion platform. System needs only 1.5 square meter place, and it is ideal for projects where the key is to reproduce the ergonomics of the original vehicle within a compact and mobile form. Moreover power cabinets are located in the lower part of the platform, under the cockpit, which significantly reduces the usable space and improves safety.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

FULLY CUSTOMIZABLE DASHBOARD

The motion cockpit gives you the possibility to fit and install various dashboards and steering wheels in the easy way. This product opened up new possibilities for driving schools, car manufacturers and people running R&D projects related to land vehicles.

Motion Chassis QS-CH1

FULLY CUSTOMIZABLE DASHBOARD

Motion Chassis QS-CH1

The motion cockpit gives you the possibility to fit and install various dashboards and steering wheels in the easy way. This product opened up new possibilities for driving schools, car manufacturers and people running R&D projects related to land vehicles.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

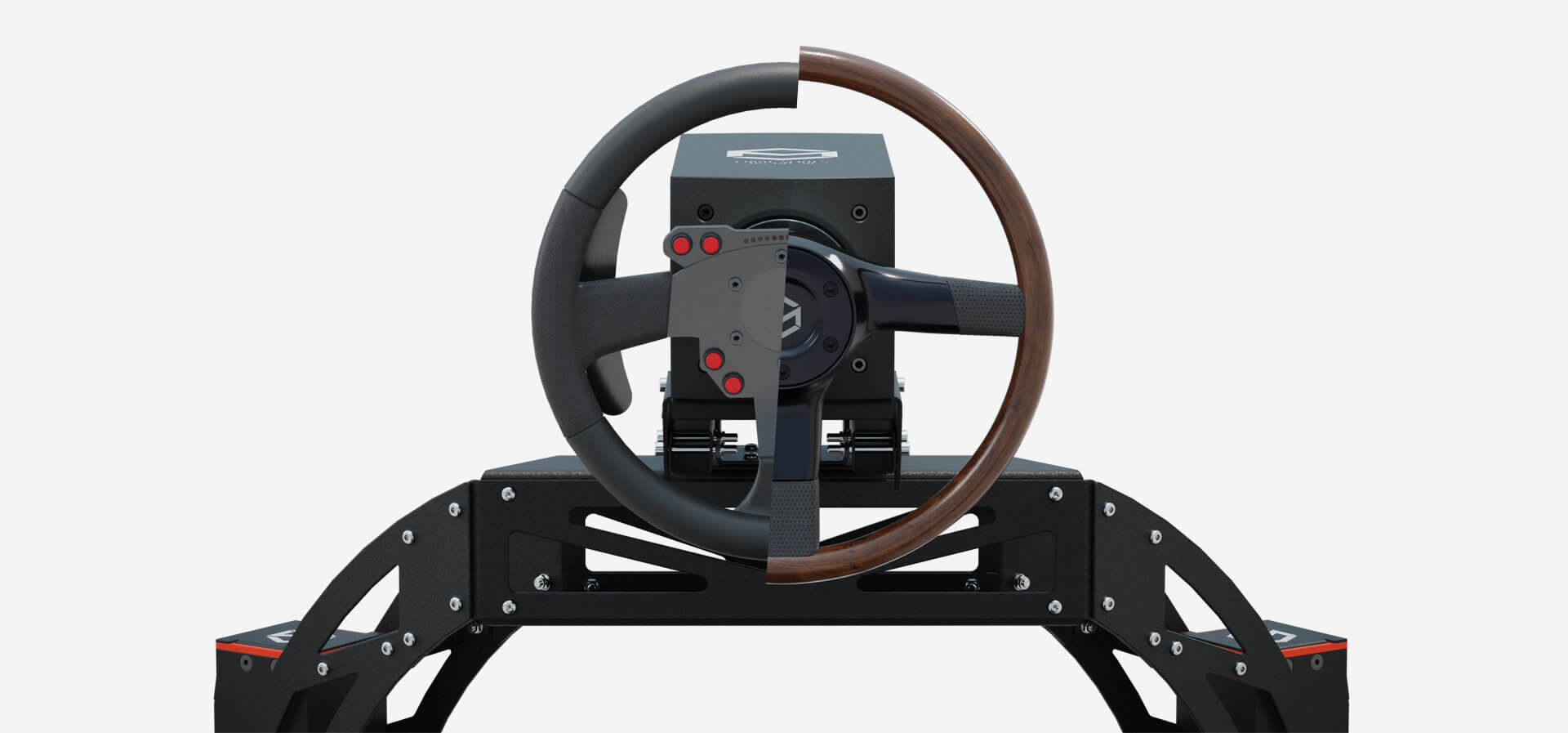

ADJUSTABLE STEERING COLUMN

The steering wheel is placed at an angle to the horizontal axis of the rig. Dedicated bracket is equipped with a mechanism to adjust its position. It can be raised and lowered as well as extended towards the driver’s.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

ADJUSTABLE STEERING COLUMN

The steering wheel is placed at an angle to the horizontal axis of the rig. Dedicated bracket is equipped with a mechanism to adjust its position. It can be raised and lowered as well as extended towards the driver's.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

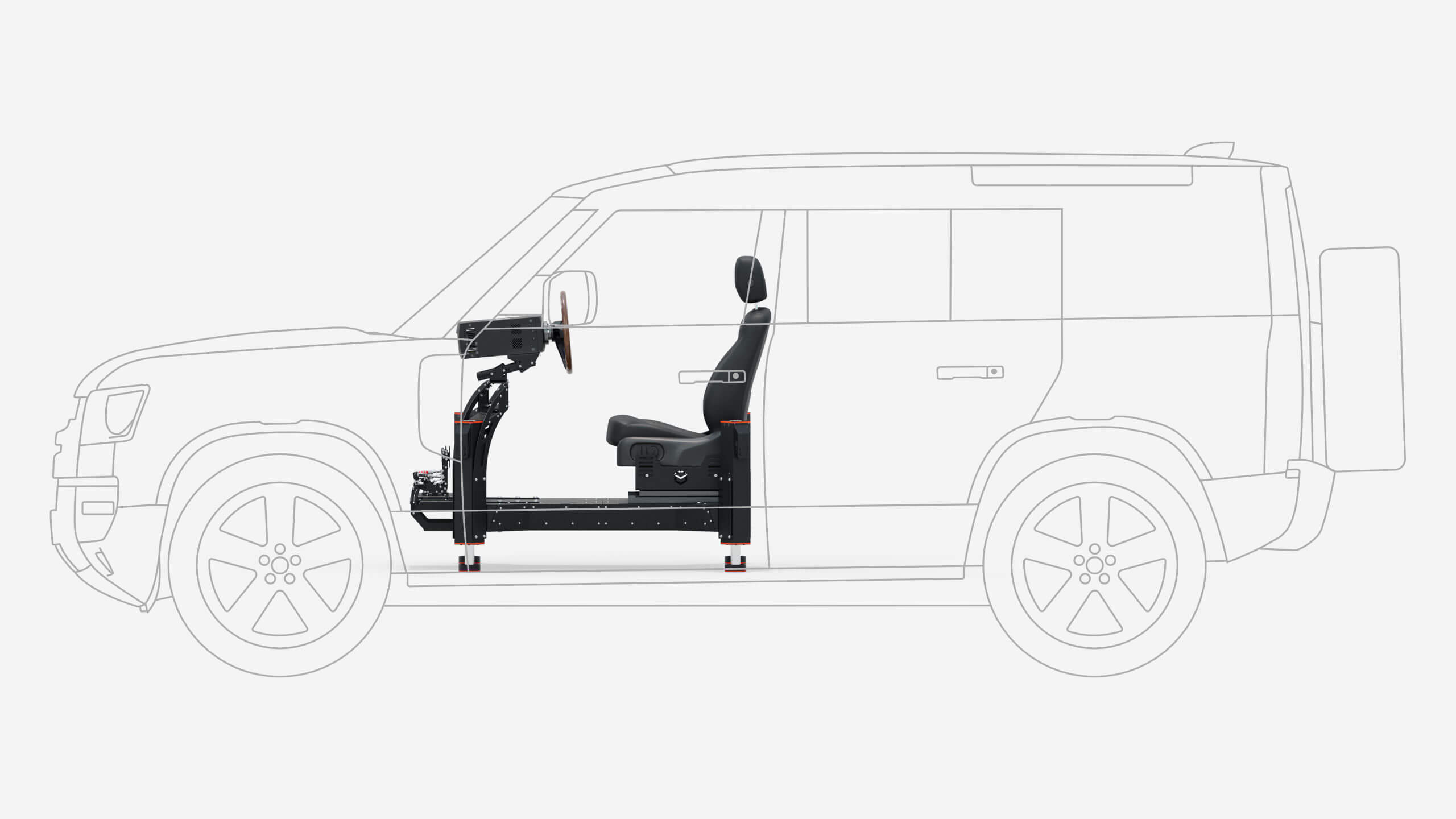

DEDICATED BRACKETS

The opportunity of assembly original seats from different vehicles makes it possible to adapt device to many applications such as: city car driving simulator, forklift simulator, reach stacker simulator, autonomous vehicle simulator or R&D activities in automotive industry.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

DEDICATED BRACKETS

The opportunity of assembly original seats from different vehicles makes it possible to adapt device to many applications such as: city car driving simulator, forklift simulator, reach stacker simulator, autonomous vehicle simulator or R&D activities in automotive industry.

ASK ABOUT PRODUCTASK ABOUT PRODUCT
Motion Chassis QS-CH1

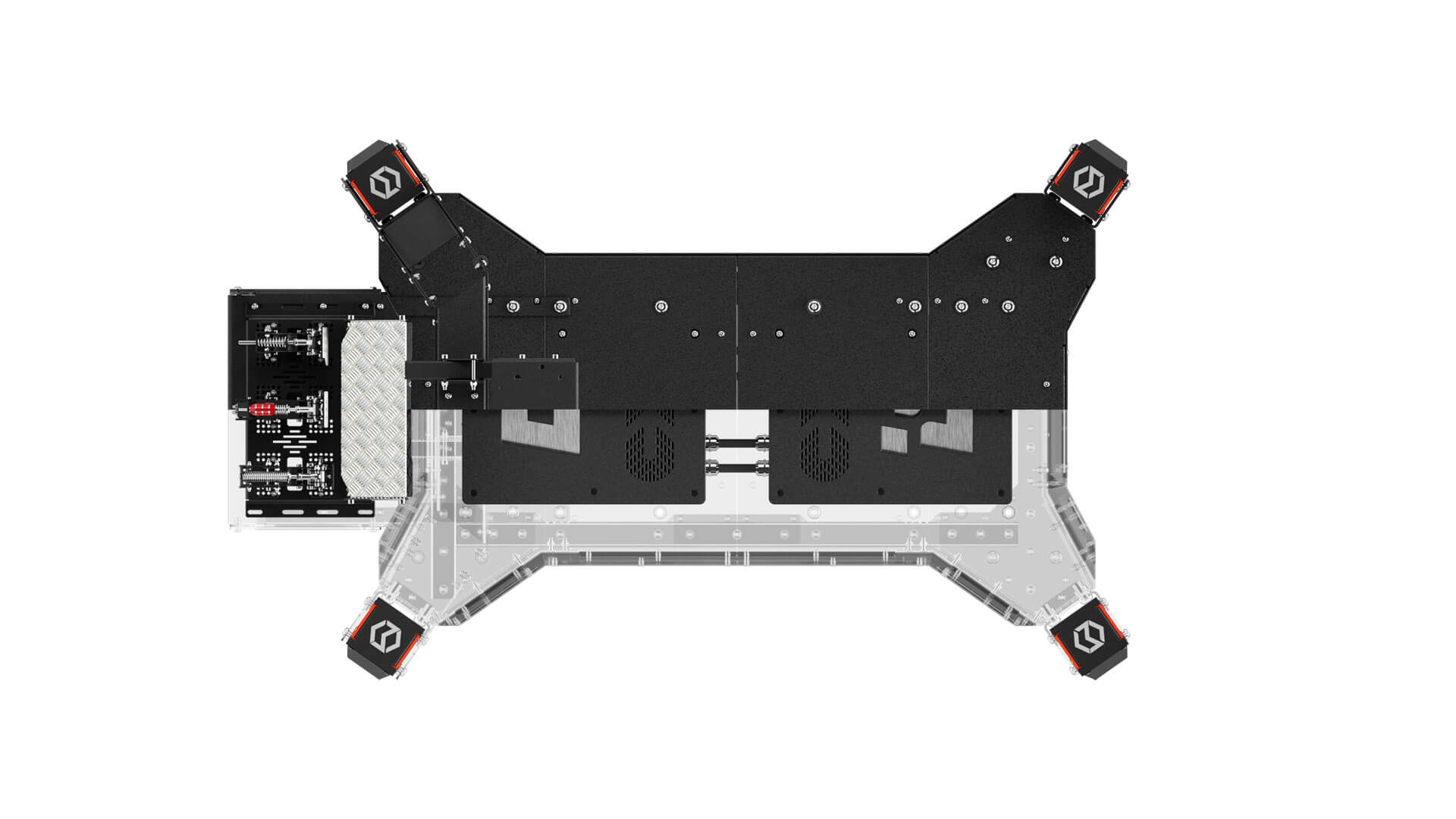

QS-CH1 Frame
Mounting Bracket: Steering Wheel
Mounting Bracket: Pedals
Mounting Bracket: Actuator
Mounting Bracket: Seat Mounting
Mounting Bracket: Seat Adjustment
Mounting Bracket: Switch Box (Underneath)

QS-CH1 CHASSIS

Motion Chassis QS-CH1
QS-CH1 CHASSIS
Mounting Bracket: Steering Wheel
Mounting Bracket: Pedals
Mounting Bracket: Actuator
Mounting Bracket: Seat Mounting
Mounting Bracket: Seat Adjustment
Mounting Bracket: Switch Box (Underneath)

Industrial grade chassis for QS-CH1 deal with extending unit functionality and changing configuration.

QS-CH1 Frame

€ 1200.00*

Mounting bracket: Steering Wheel

€ 200.00*

Mounting bracket: Pedals

€ 200.00*

Mounting bracket: Actuators x1

€ 80.00*

Mounting bracket: Seat Mounting

€ 200.00*

Mounting bracket: Seat Adjustment

€ 200.00*

Mounting bracket: Switch Box (Underneath)

€ 200.00*

* Price does not include tax (VAT), customs duty and transportation costs.

ASK ABOUT PRODUCTASK ABOUT PRODUCT

GENERAL SPECIFICATION

System performance

Max Acceleration

Heavy Duty Mode (115/230V)
0.4G*

*value of acceleration is limited for safety reasons

Max Velocity

Heavy Duty Mode (115/230V)
300 mm/s

Actuator Stroke

100 mm

Max Frequency Range

100 Hz

Heave

- 50 mm, 50 mm

Roll

-7.9°, 7.9°

Pitch

-5.1°, 5.1°

Payload specification

PAYLOAD

300 kg | 662 lb

Main dimensions

Total width

856 mm | 33.7 in

Total height

763 mm | 30 in

Total length

1426 mm | 56 in

Power requirements

Max power consumption

2,4 kW

Power supply requirements

100~240V, 50-60Hz

PRODUCT CARDPRODUCT CARD
